Limit switches play a key role in detecting movement and controlling operations in various systems. Selecting the correct type—AC, DC, or dual-rated—is crucial for proper function and safety. This guide will help you understand the differences between AC and DC limit switches and how to choose the right one for your needs.

The Quick Answer—AC, DC, Or Both

Limit switches can be rated for AC, DC, or both. It depends on how the switch is designed and tested. Some switches are built to handle alternating current (AC), others direct current (DC), and some are dual-rated to support both types safely.

Why The Wrong Limit Switch Can Be A Costly Mistake

Use the wrong voltage type, and the switch can fail fast—or worse. DC circuits place more stress on contacts due to constant current, which leads to overheating, arcing, or even system damage. An AC-only switch in a DC circuit is a common cause of early failure.

Key Differences Between AC And DC Limit Switches

How They Handle Current Differently

AC current alternates and crosses zero volts 60 times a second, which naturally helps extinguish arcs when the contacts open. DC current, however, is constant and does not pass through zero, making it harder to break and more likely to cause arcing.

Why Ratings Aren’t Interchangeable

A limit switch rated for 250V AC may only be rated for 30V DC. That’s because DC requires wider contact spacing and more robust materials. Always check the datasheet and never assume AC and DC ratings can be swapped.

Contact Wear And Arcing Concerns

DC causes more wear on the contacts due to its unidirectional and continuous flow. This makes arcing more intense and persistent, which is why DC-rated switches often include features to reduce arc damage.

How To Tell If A Limit Switch Is AC Or DC

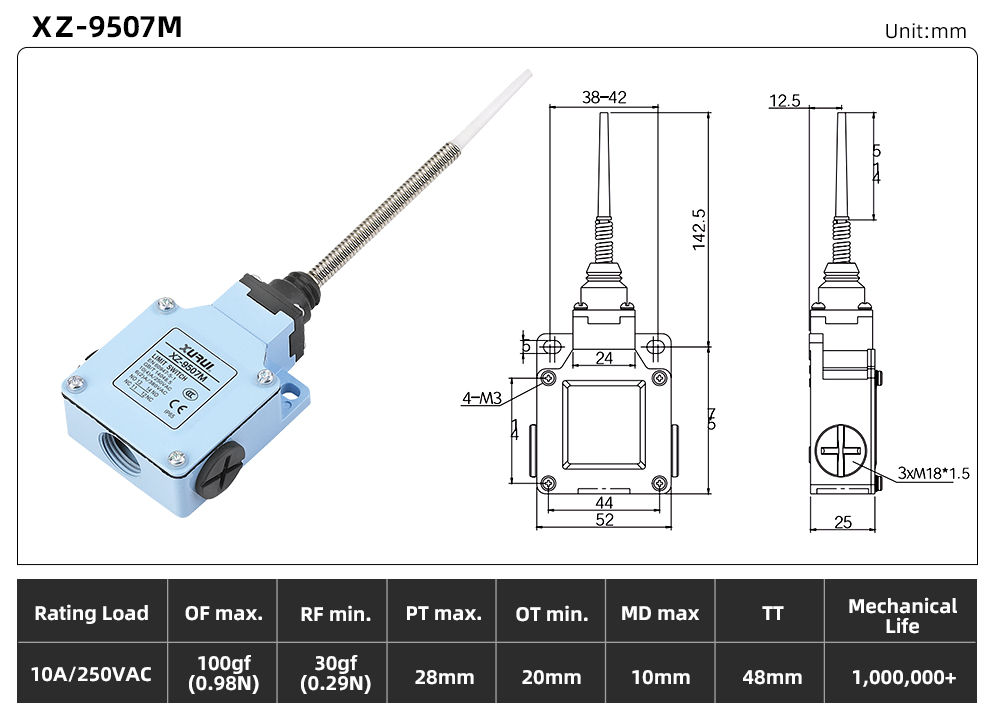

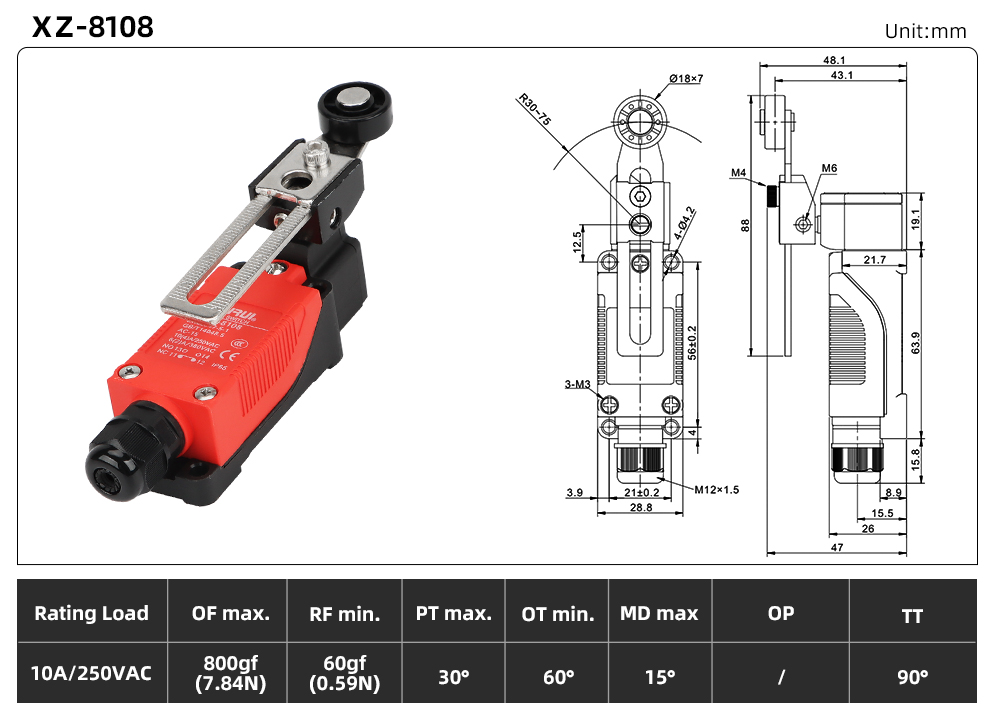

Check The Label Or Datasheet

Look at the switch label or manufacturer datasheet for voltage and current ratings. It should clearly state whether the switch is suitable for AC, DC, or both, along with maximum voltage and current values.

Look For Certification Marks

Look for marks like UL or CE—they’re proof it’s been tested for the right power type. Certifications like these also show the switch complies with electrical safety standards.

Dual-Rated Switches Explained

Dual-rated switches are designed and tested to work safely with both AC and DC. They offer flexibility but tend to be more robust and slightly more expensive. They’re ideal when a device may operate on different power types.

How To Choose The Right Limit Switch For Your Application

Match The Switch To Your Power Type

Start by identifying whether your system uses AC or DC. Choose a switch rated specifically for that power type to ensure proper operation and safety. Never guess—voltage type matters.

Related Reading: What are the 6 types of limit switches?

Consider Voltage And Current Requirements

Voltage and current ratings are just as important as type. Even a dual-rated switch has limits. Make sure the ratings match your application, especially for high-power equipment or control circuits.

Protect Against Arc Damage In DC Circuits

If you must switch DC, use external protection like flyback diodes, arc suppressors, or relays. These components help reduce arcing and extend the life of your limit switch.

Common Mistakes To Avoid With Limit Switches

Assuming All Switches Are Universal

Not all limit switches can handle both AC and DC. Using the wrong type could lead to fast wear or failure. Always verify the ratings instead of assuming compatibility.

Ignoring Environmental Factors

Heat, dust, vibration, and moisture can all affect switch performance. Use enclosures or select industrial-grade switches if your environment is harsh or unstable.

Using Control Switches For High Loads

Limit switches are designed to send signals, not control large power loads. Don’t use them to switch motors or heavy currents directly—that’s what contactors or relays are for.

Real-World Examples: AC Vs. DC Switch Use

Example 1: AC Limit Switch In A Conveyor System

A 120V AC-powered conveyor belt uses a limit switch to detect the end of travel. The switch stops the motor once the belt reaches the end, preventing mechanical damage or product misalignment.

Example 2: DC Limit Switch In Solar Applications

In a solar tracking system powered by 24V DC, a limit switch helps detect full tilt or rotation. It signals the controller to stop motion, protecting the panel and the drive system from over-travel.

Final Tips For Selecting The Right Limit Switch

Use Manufacturer Guidelines

Always read the datasheet. Manufacturers specify exactly what their switch can and can’t do. That information is more reliable than guesswork or assumptions.

Don’t Mix Ratings

Never use an AC-rated switch in a DC system or vice versa unless the product is specifically dual-rated. Mismatched usage leads to unreliable performance or failure.

Get Expert Help If Unsure

If you’re unsure, ask your supplier, technician, or engineer. A short consultation can prevent expensive errors or safety issues later on.

Frequently Asked Questions

Q1: Can I Use An AC Limit Switch In A DC Circuit?
A: Not safely. AC switches aren’t designed for DC’s constant current and may overheat or fail. Always use a switch rated for DC use.

Q2: Are All Limit Switches Compatible With Both AC And DC?
A: No. Only switches specifically marked as dual-rated are safe to use with both. Always verify in the datasheet.

Q3: Why Are AC And DC Ratings So Different?
A: DC creates more arcing since it doesn’t pass through zero like AC. That’s why DC switches need stronger materials and often have lower ratings.

Q4: What Happens If I Use The Wrong Type Of Limit Switch?
A: It may result in switch failure, false triggering, contact burn-out, or even fire hazards.

Conclusion

Choosing the right limit switch isn’t just about function—it’s about safety, reliability, and long-term performance. Whether your system runs on AC, DC, or both, always verify the switch’s ratings before installation. Pay attention to datasheets, voltage limits, and environmental factors. With the right information, you can avoid costly mistakes and ensure your equipment runs smoothly.
