XEL-K Series Safety Door Switch

1300N Locking Force for Reliable Safety: Ensures secure door locking during high-speed or hazardous machine operations, preventing accidental access.

Up to 14 Contact Combinations Available: Supports diverse safety circuit designs, including dual-channel monitoring and redundancy logic.

Selectable Lock/Unlock Modes: Offers both electromagnetic lock with mechanical release and mechanical lock with electromagnetic release options.

Optional Rear Release Mechanism: Allows concealed or emergency unlocking, ideal for maintenance or redundancy-critical applications.

Compatible with 11 Key Types: Supports multiple insertion directions and key types (T-shape, L-shape, adjustable), suitable for various installation environments.

XEL-K Series Overview

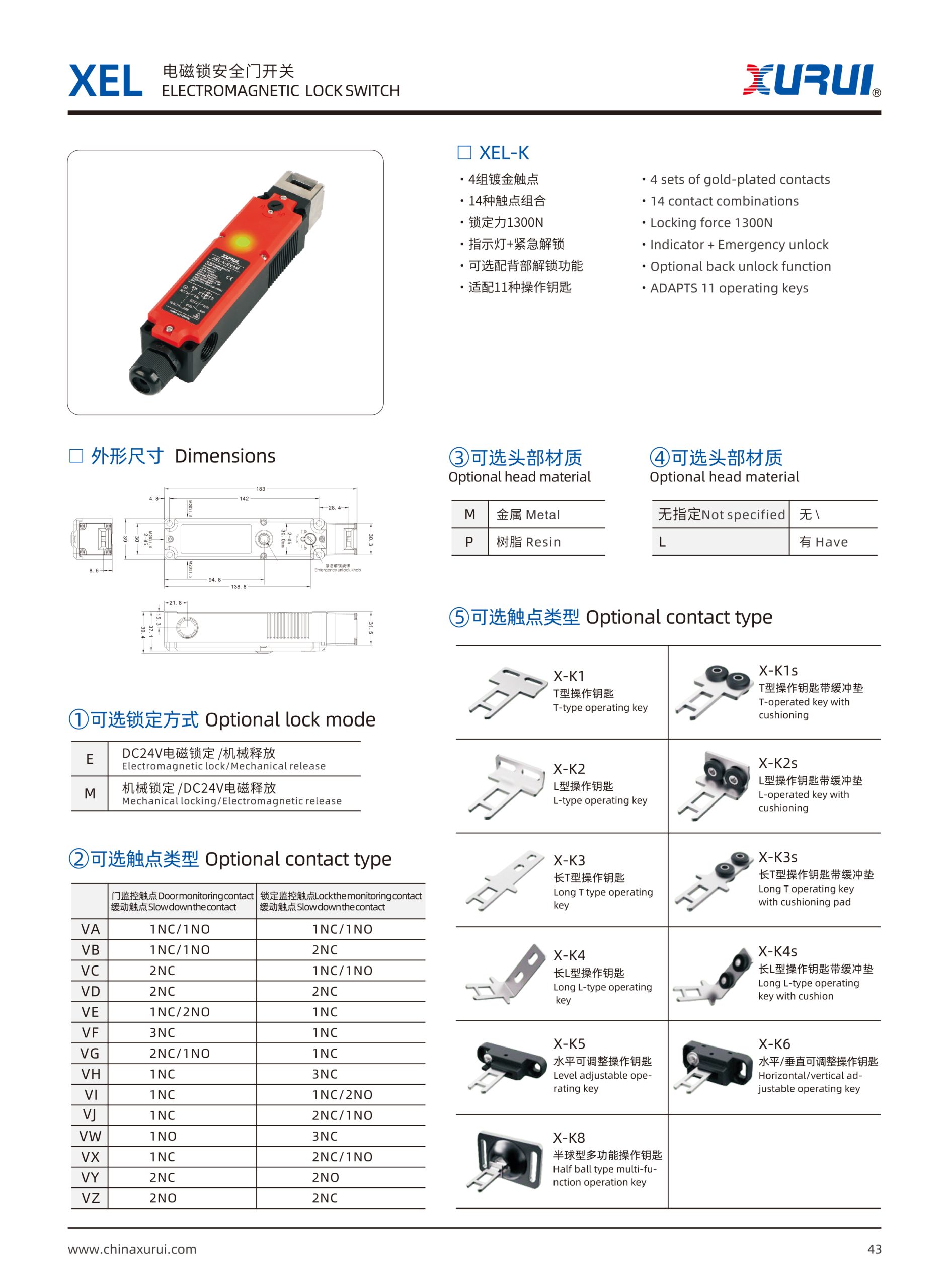

The XEL-K series is an integrated electromagnetic safety door switch, featuring a locking force of 1300N and four gold-plated contacts. It supports up to 14 different contact combinations and offers DC24V electromagnetic unlocking with mechanical release. An optional rear-release function is available for emergency or concealed unlocking. Compatible with 11 types of actuator keys, this series is ideal for compact industrial control panels and automated systems requiring flexible interlocking solutions.

Specifications

Item	Value
Locking Force	1300N
Lock/Unlock Modes	Electromagnetic lock / mechanical release, or vice versa
Contact Combinations	14 models available (e.g., 2NC, 3NC, 1NC/1NO)
Contact Material	Gold-plated silver alloy
Indicator Light	Built-in LED
Rear Release Function	Optional
Cable Entry	M20 / PG13.5
Mounting Method	Screw-mounted
Key Insertion Directions	Supports 5 directions
Housing Material	Metal (M) / Resin (P)
Compatible Key Models	X-K1 to X-K8 (11 types total)

Contact Type Options

Code	Door Monitoring Contacts	Lock Monitoring Contacts
VA	1NC/1NO	1NC/1NO
VB	1NC	1NC/1NO
VC	2NC	1NC/1NO
VD	1NC/1NO	2NC
VE	2NC	2NC
VF	2NC	1NC
VG	1NC/1NO	1NC
VH	1NC	3NC
VJ	3NC	1NC
VW	1NC	2NC/1NO
VX	2NC/1NO	1NC
VY	2NO	1NC/1NO
VZ	2NO	2NC

Available Key Types

•X-K1 / X-K1s: T-shaped key / with buffer pad

•X-K2 / X-K2s: L-shaped key / with buffer pad

•X-K3 / X-K3s: Long T-shaped key / with buffer pad

•X-K4 / X-K4s: Long L-shaped key / with buffer pad

•X-K5: Horizontally adjustable key

•X-K6: Horizontally/vertically adjustable key

•X-K8: Hemispherical multifunctional key

Application Scenarios

• Safety interlock control for robot cells or CNC machines
• Protective door locking for high-speed packaging or sorting equipment
• Dual-channel safety monitoring systems in automated production lines
• Devices with rear access panels or emergency exits
• Space-constrained installations requiring side key insertion
