XSSR-H Series Modular DIN Rail Mounted Single-Phase AC Solid State Relay

Integrated Heatsink Design: Combines the heatsink with the relay body for space-saving, simplified installation.

DIN Rail Mounting Structure: Fits standard DIN rails for fast, tool-free snap installation.

Optoelectronic Isolation Output: Achieves high dielectric strength ≥2500VAC between input and output, offering strong noise immunity.

Built-In Protection Circuitry: Equipped with RC snubber and surge suppression to protect both the load and the relay itself.

LED Operation Indicator: Real-time status display facilitates maintenance and fault diagnosis.

描述

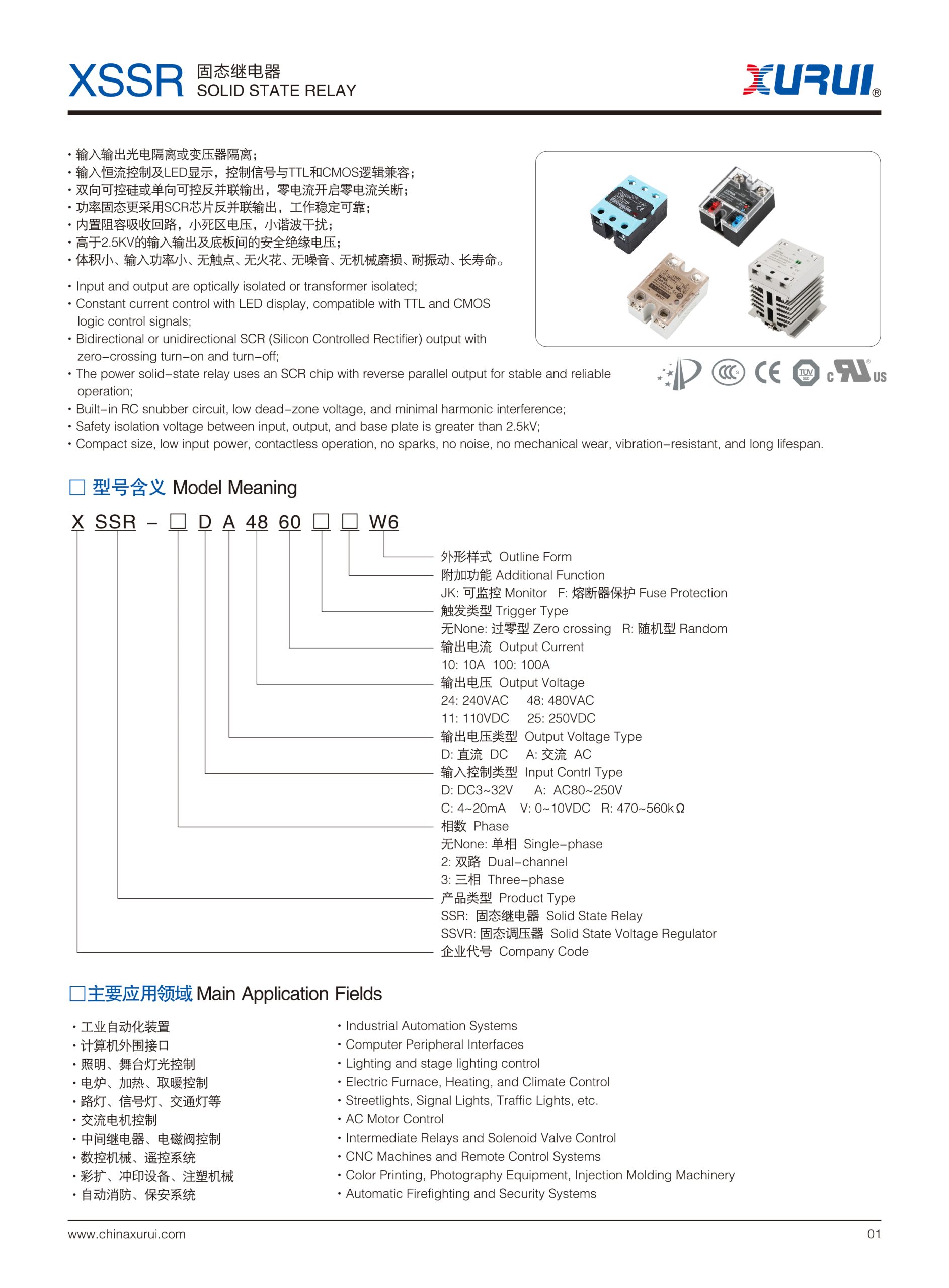

XSSR-H Series Modular DIN Rail Mounted Single-Phase AC Solid State Relay Overview

The XSSR-H series is a modular, DIN rail-mounted single-phase AC solid state relay featuring an integrated heatsink design. Compact and easy to install, it offers optoelectronic isolation output, supports zero-crossing or random trigger modes, and includes built-in RC snubber and surge protection circuits. It is widely used in industrial heating systems, motor control, and automation equipment for AC load control applications.

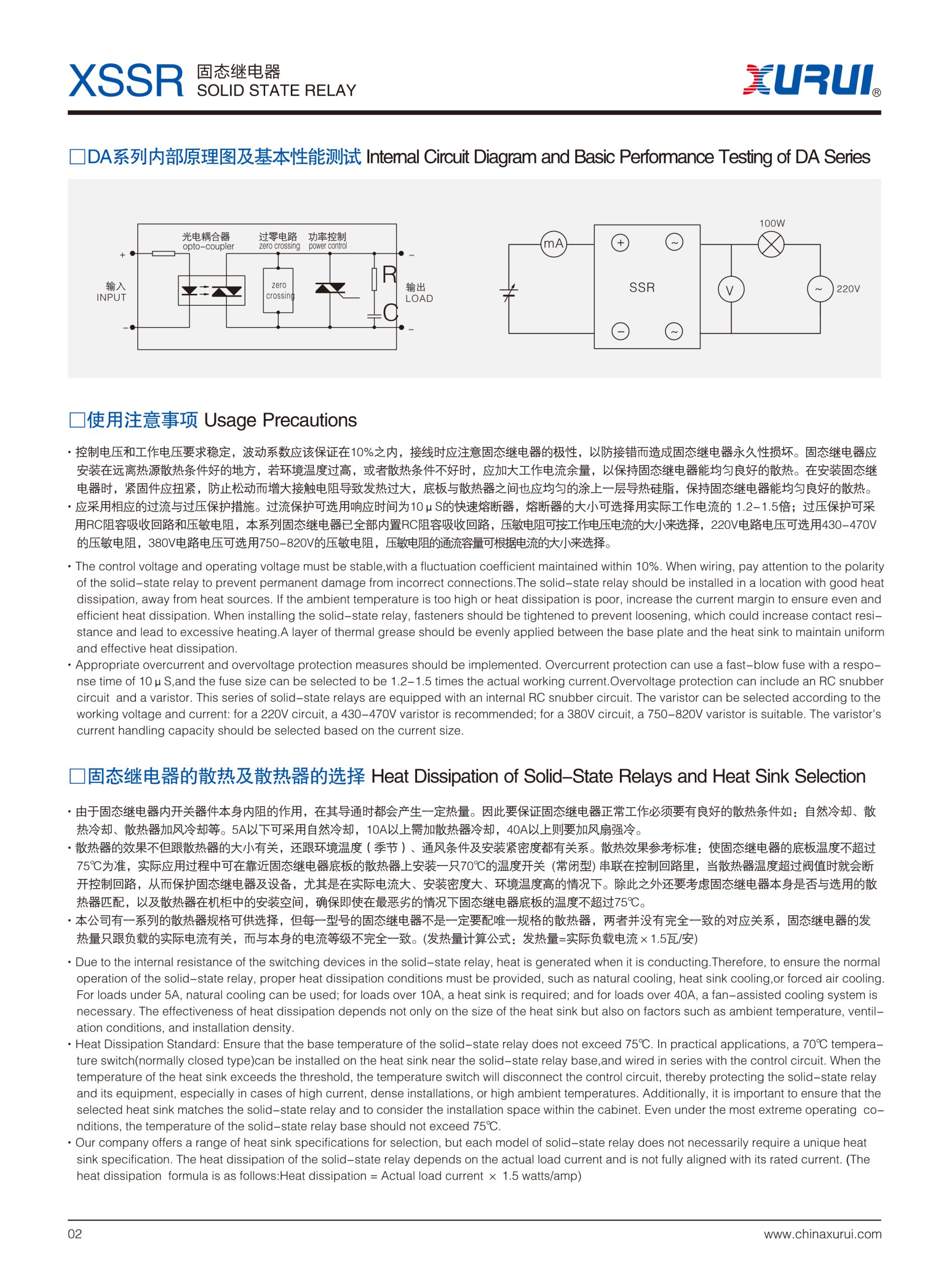

Specification

Item	Value
Product Model	XSSR–DA48□H
Control Voltage	3–32VDC（DA ）
Control Current	≤25mA
Reverse Voltage	32VDC
Guarantee ON Voltage	3VDC
Guarantee OFF Voltage	1VDC
Load Voltage	24–480VAC
Max Load Current	5A ~ 60A
Min Load Current	0.08A
Output Leakage Current	≤5mA
Dielectric Strength	≥2500VAC
Insulation Resistance	≥100MΩ
Switching Time	≤10ms
Frequency Range	47–63Hz
Operating Temperature	–20°C ~ +70°C
Mounting Style	DIN rail mounting, modular integrated housing
Dimensions (Reference)	85 × 28 × 86 mm (varies by current rating)

Application Scenarios

• Industrial temperature control systems (heating plates, hot runners, furnaces)
• Single-phase AC motor start, stop, and protection control
• Control panels for smart manufacturing where space is limited
• Industrial lighting control, capacitive/inductive load switching
