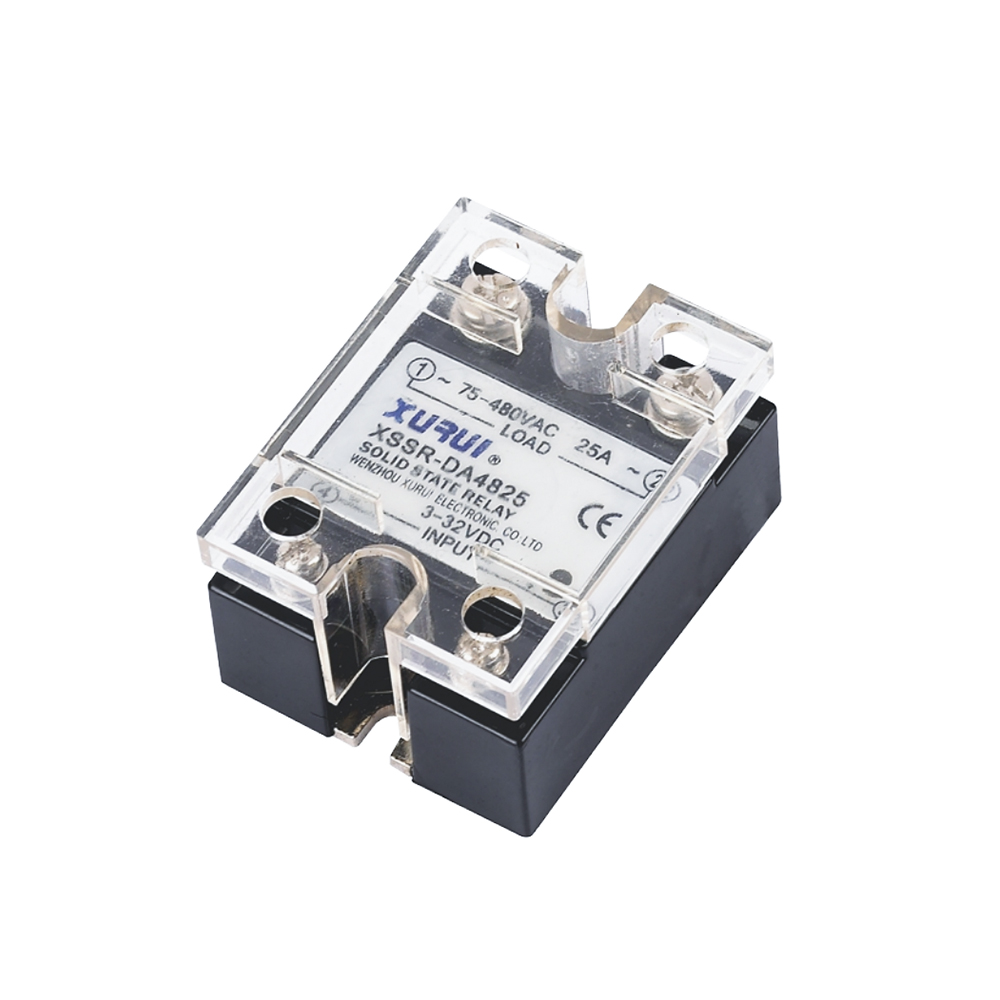

XSSR-W5 Series Horizontal Single-Phase AC Solid State Relays

High-Reliability Optoelectronic Isolation: Achieves 2500V dielectric strength between input and output, offering strong interference resistance.

Zero Voltage Turn-On Function: Prevents surge impact, enhances equipment stability, and extends service life.

Built-in RC Snubber Circuit: Suppresses voltage surges, protecting both the load and relay device.

LED Status Indicator: Real-time display of operational status for easier on-site maintenance and management.

Compact Screw-Mount Structure: Designed for flexible installation, saving panel space, and fitting various enclosure types.

描述

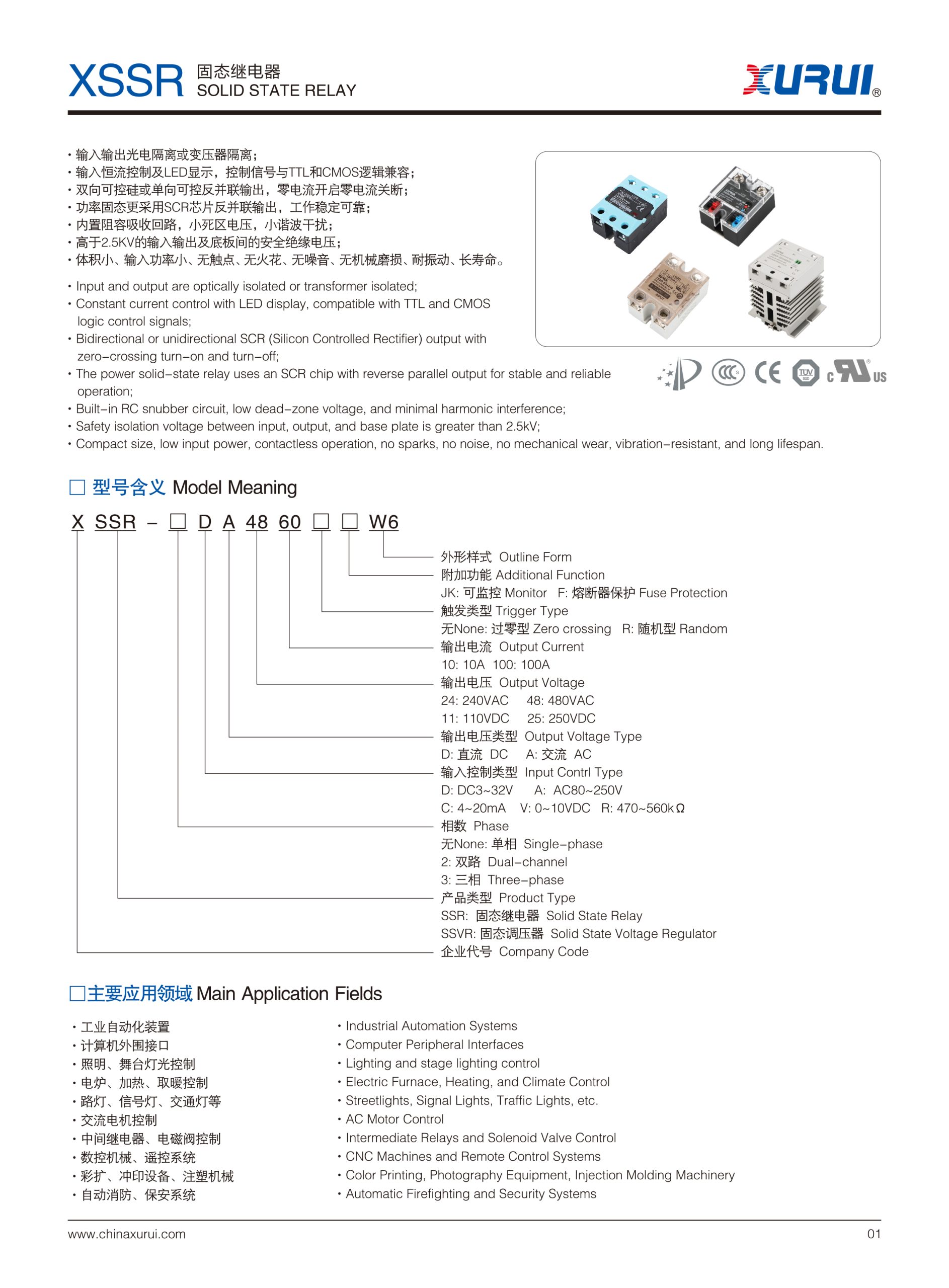

XSSR-W5 Series Horizontal Single-Phase AC Solid State Relays Product Overview

The XSSR-W5 series features a horizontal, screw-mounted design for single-phase AC solid state relays. Utilizing optoelectronic isolation output, it delivers excellent electrical isolation performance. With its compact structure, the W5 series is ideal for panel-mounted applications, supporting AC load control. It is widely used in industrial heating, motor control, automation testing, and other fields.

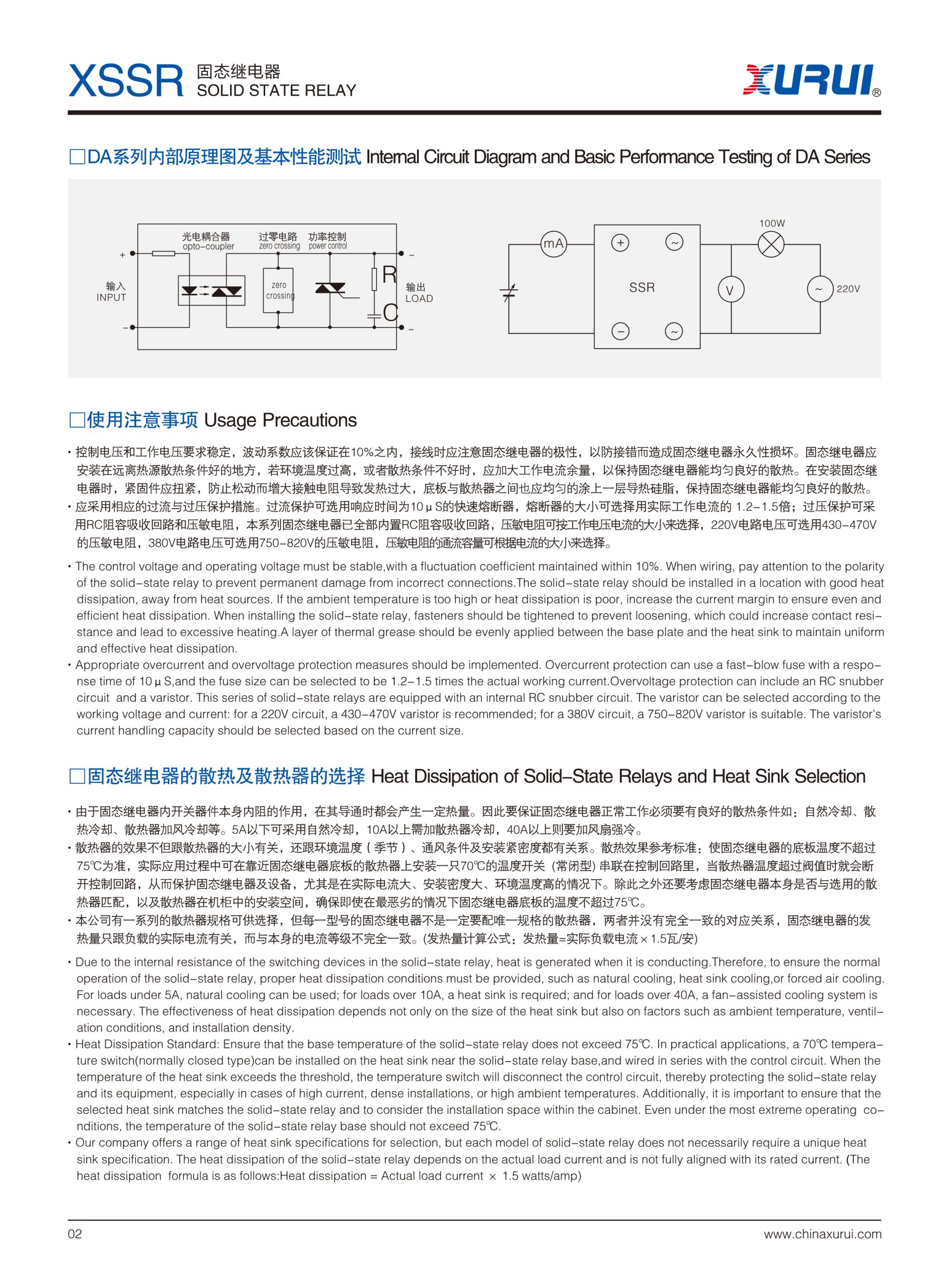

Specifications

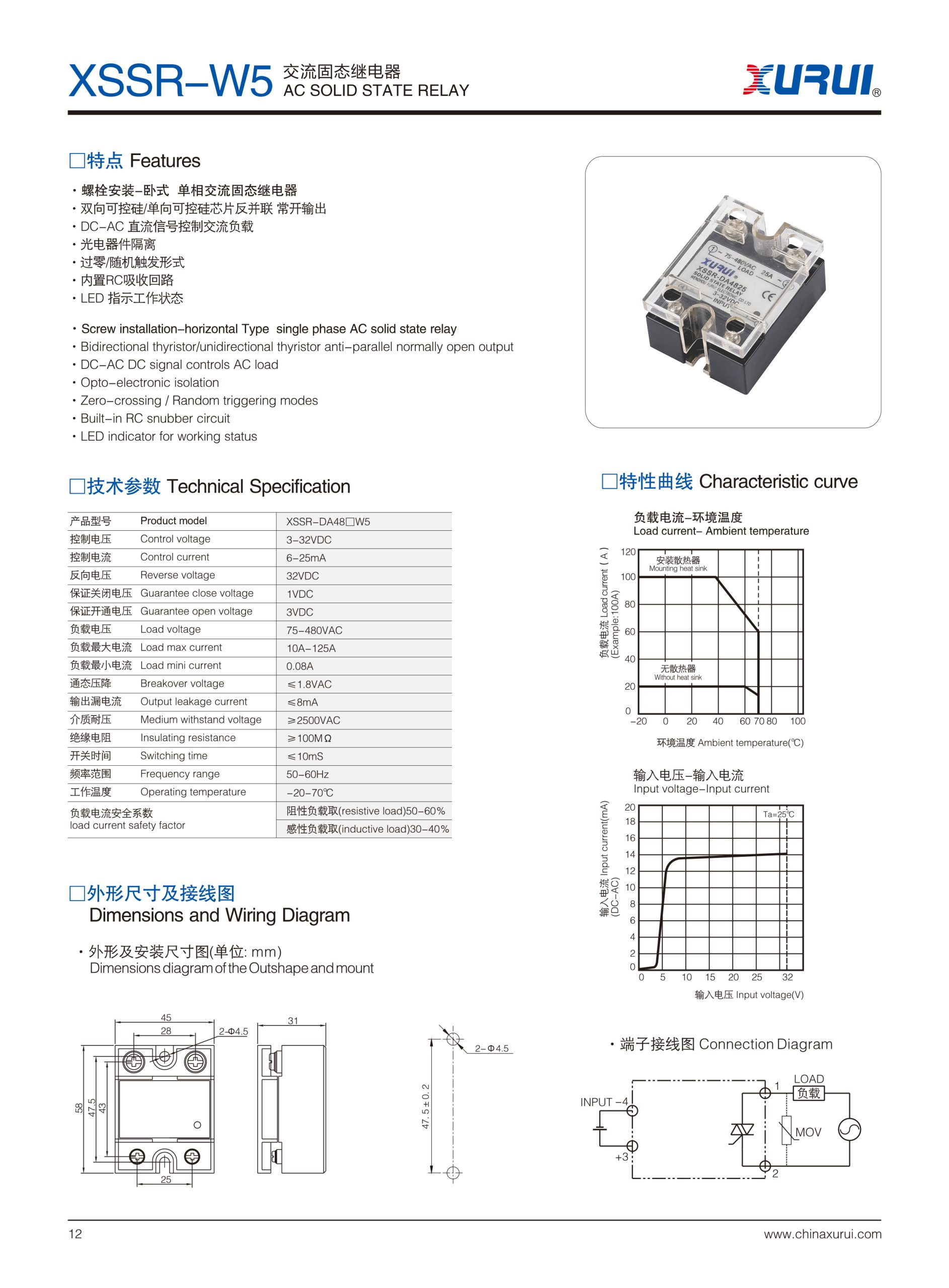

Item	Specification
Control Voltage	3–32VDC
Control Current	6–25mA
Reverse Voltage	32VDC
Guarantee Close Voltage	3VDC
Guarantee Open Voltage	1VDC
Load Voltage	75–480VAC
Max Load Current	10A ~ 125A
Min Load Current	0.08A
Output Leakage Current	≤8mA
Dielectric Strength	≥2500VAC
Insulation Resistance	≥100MΩ
Switching Time	≤10ms
Operating Temperature	–20℃ ~ +70℃
Mounting Type	Horizontal, screw-fixed
LED Indicator	Yes
Dimensions (Reference)	58 × 45 × 31mm

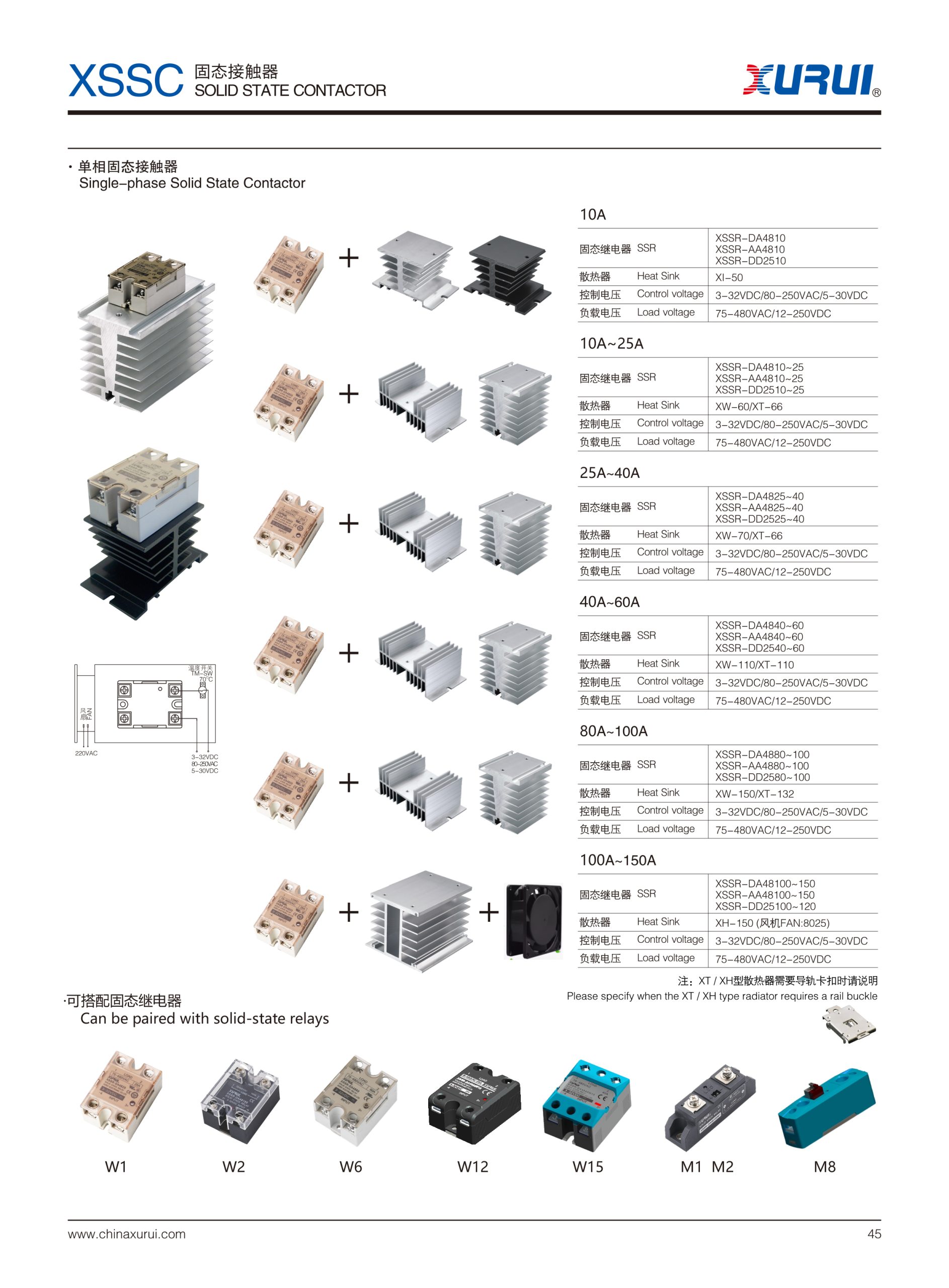

Application Scenarios

• Industrial heating control (injection molding machines, furnaces, temperature controllers)
• Soft start and start/stop control of industrial motors
• Fluid pump and valve system control
• Automated testing equipment and aging test platforms
• Industrial lighting and traffic signal control systems
