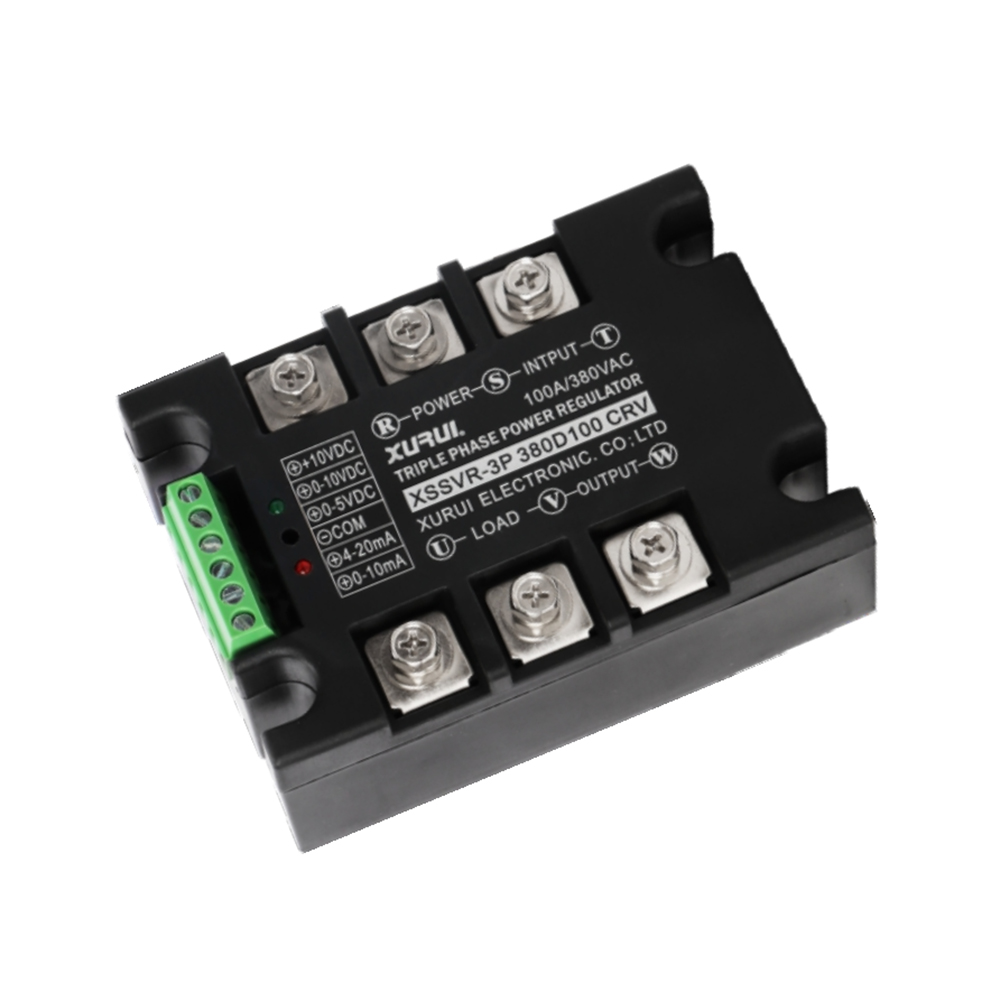

XSSVR-3P Series Solid State Relay

Multiple Control Input Options: Supports potentiometer, analog voltage (0–5V / 0–10V), and current (4–20mA / 0–10mA) input

Integrated Compact Design: Space-saving module with easy installation

High Output Symmetry: Three-phase phase-shift control algorithm ensures stable performance in balanced loads

Superior Interference Resistance: Built-in RC snubber and EMI suppression for high system stability

LED Status Indicators: Dual-color LEDs show power and output status in real time for easy maintenance

描述

XSSVR-3P Series Solid State Relay Overview

The XSSVR-3P Series is a three-phase intelligent AC solid state voltage regulator module with an integrated transformer and potting structure. It requires no external power supply and supports multiple analog input signals (2–10kΩ, 4–20mA, 0–5V, 0–10V) for voltage regulation. It offers excellent output symmetry, strong anti-interference capability, fast response, and high precision, making it ideal for industrial automation such as heating, CNC, power supplies, and motor control.

Specifications

Item	Value
Control Signal Types	Potentiometer (2–10kΩ), Voltage (0–5V / 0–10V), Current (4–20mA / 0–10mA)
Control Input Range	2–10kΩ, 0–5VDC, 0–10VDC, 4–20mA, 0–10mA
Load Voltage	0–380VAC (Three-phase)
Max Load Current	10A–200A
Min Load Current	0.05A
Output Leakage Current	≤8mA
Dielectric Strength	≥2500VAC
Insulation Resistance	≥100MΩ
Breakover Voltage	≤2VAC
Switching Time	≤10ms
Frequency Range	47–63Hz
Operating Temperature	–20°C ~ +70°C

Application Scenarios

• Industrial heating control systems
• Motor voltage regulation and soft-start applications
• Power supply management in CNC machinery and automation lines
• PCB thermal press machines, ceramic processing equipment
• Intelligent load distribution in power control systems
