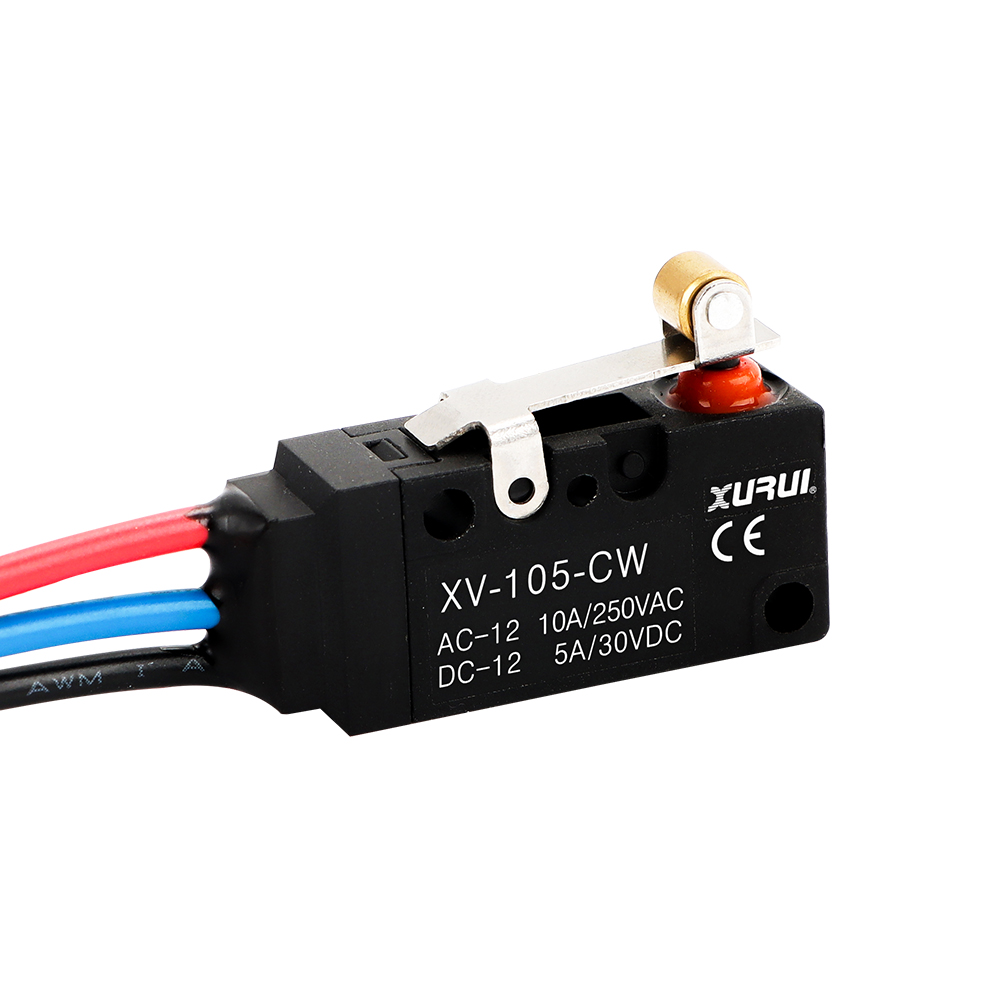

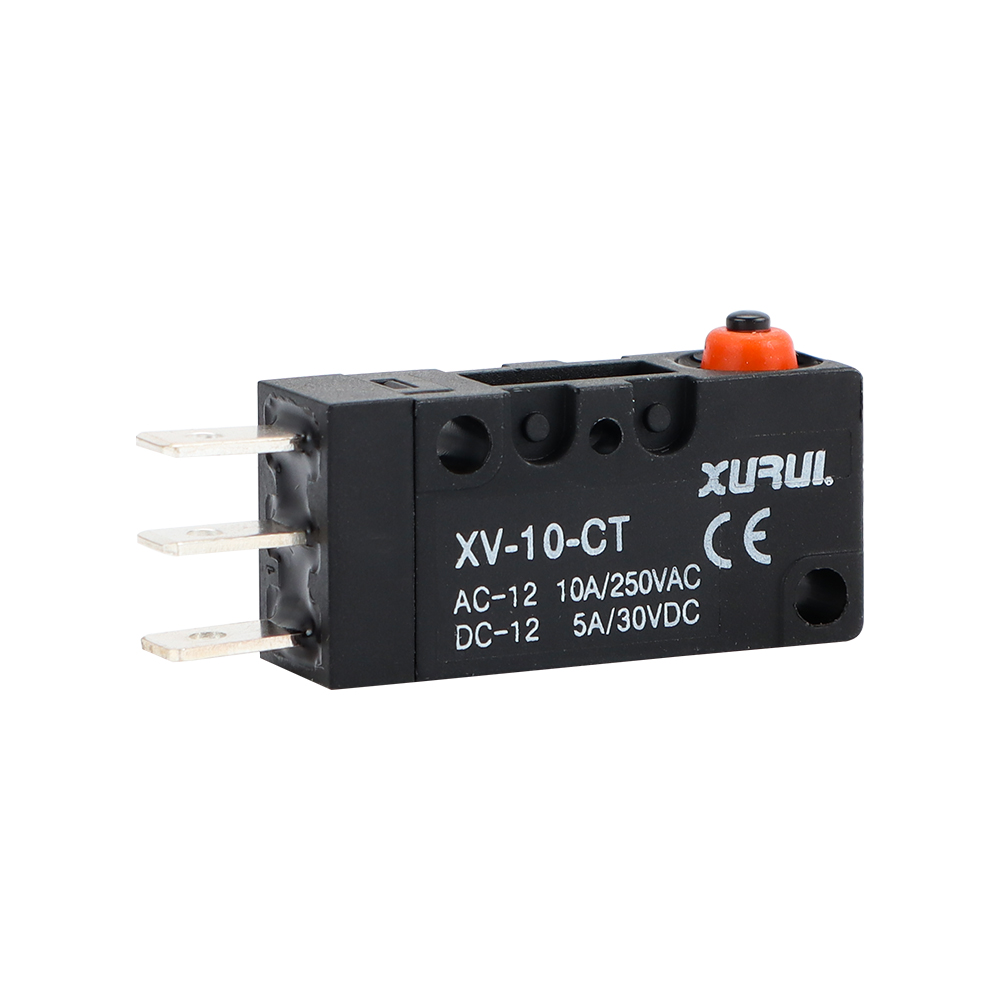

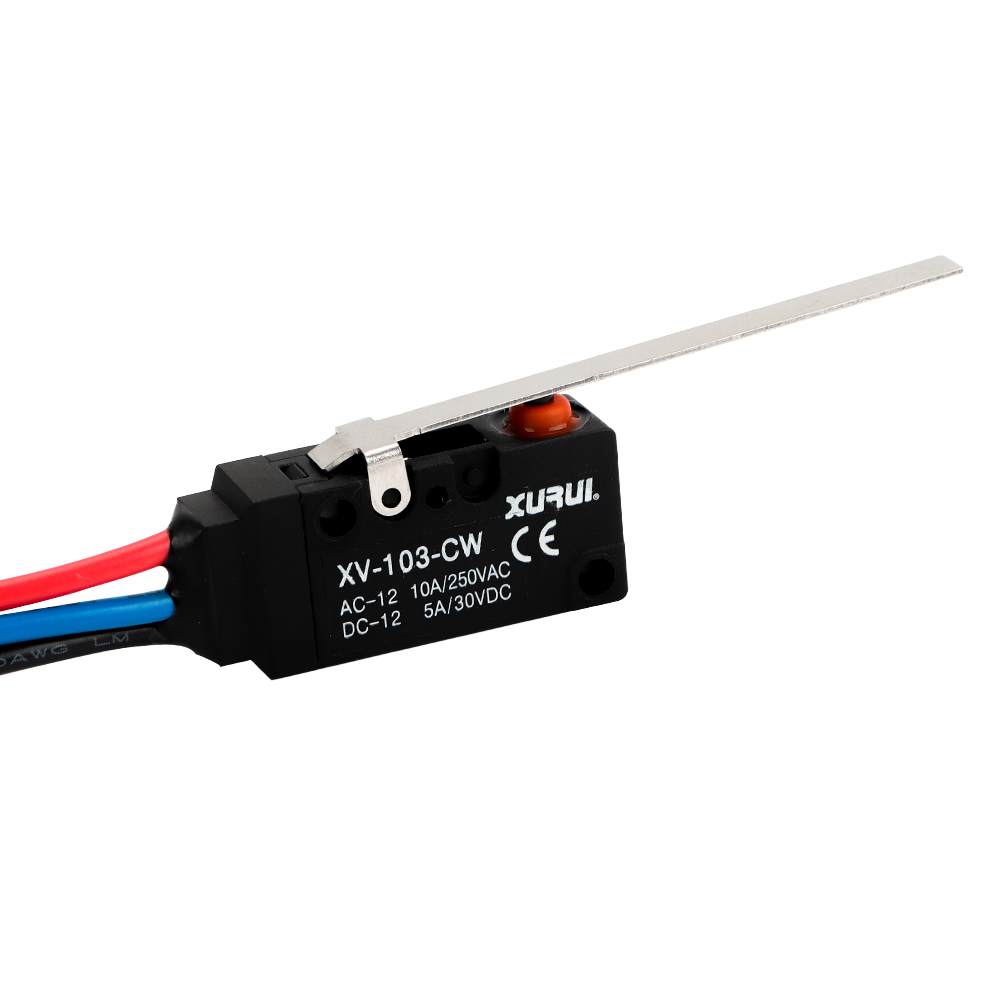

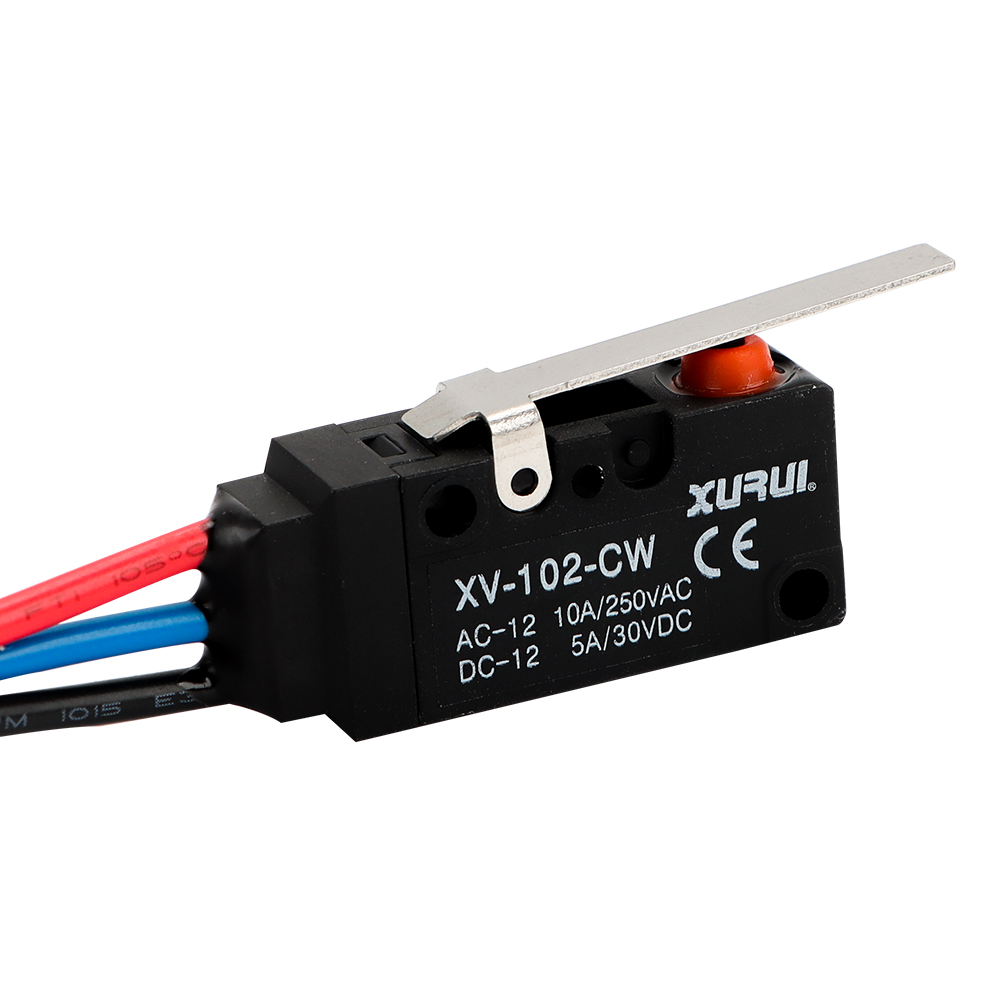

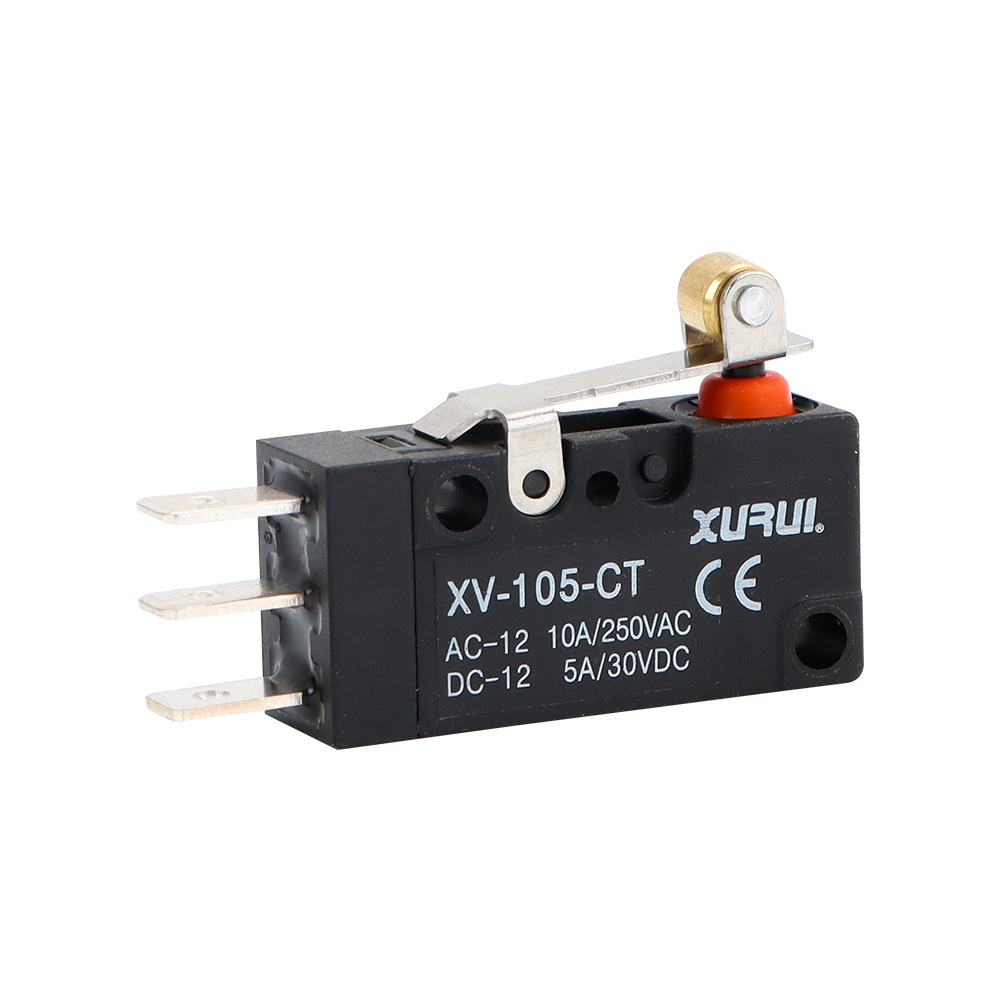

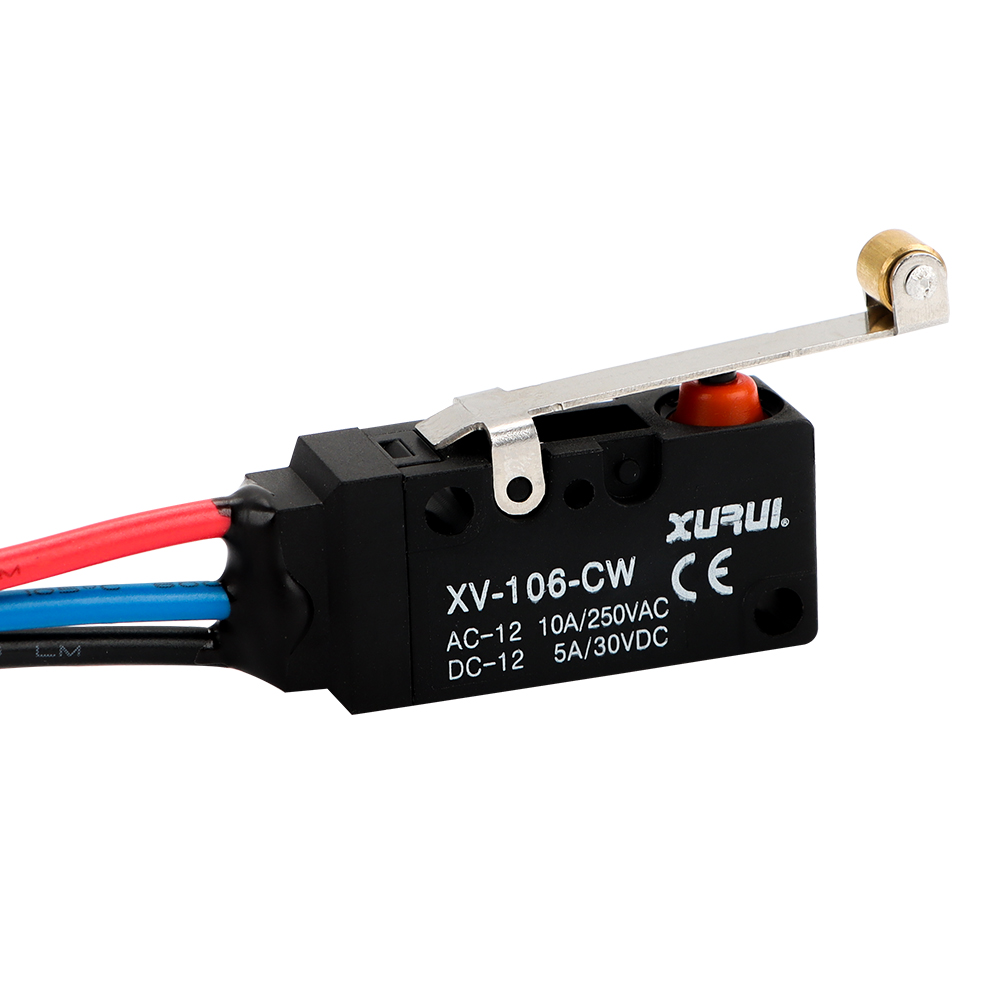

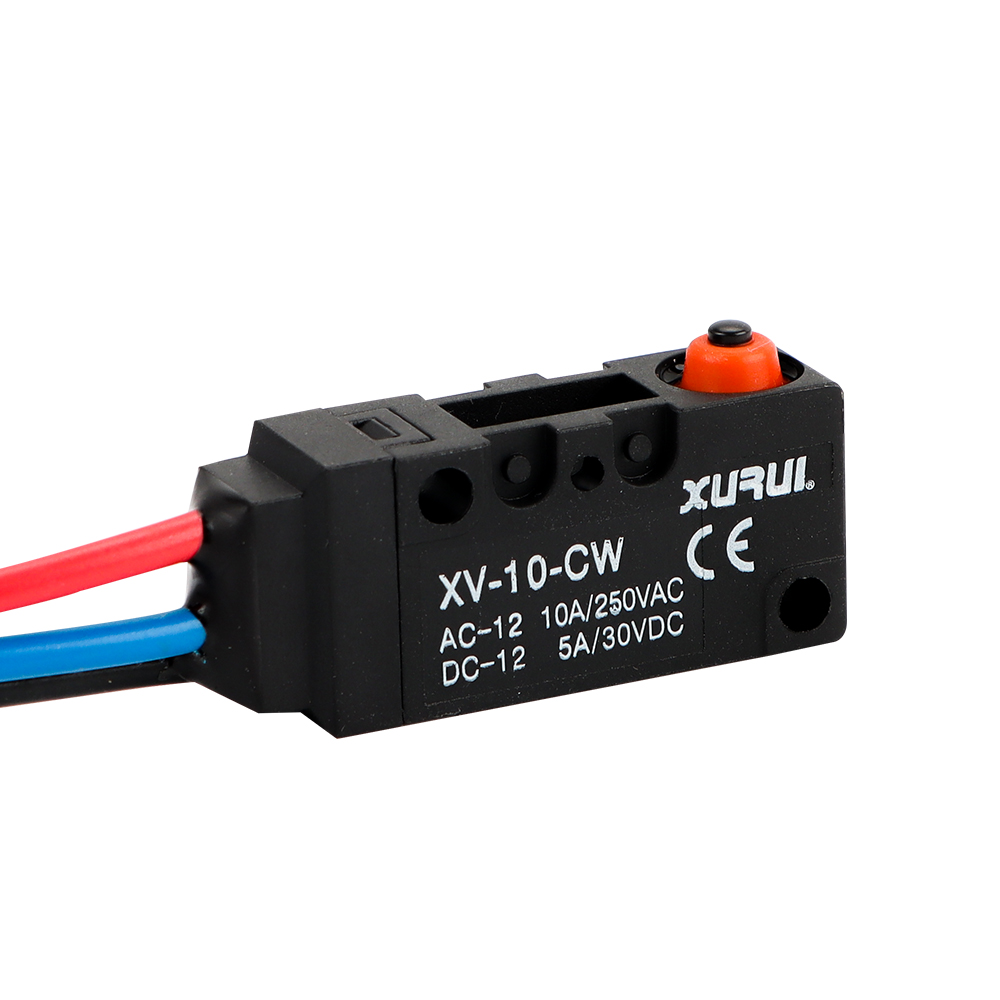

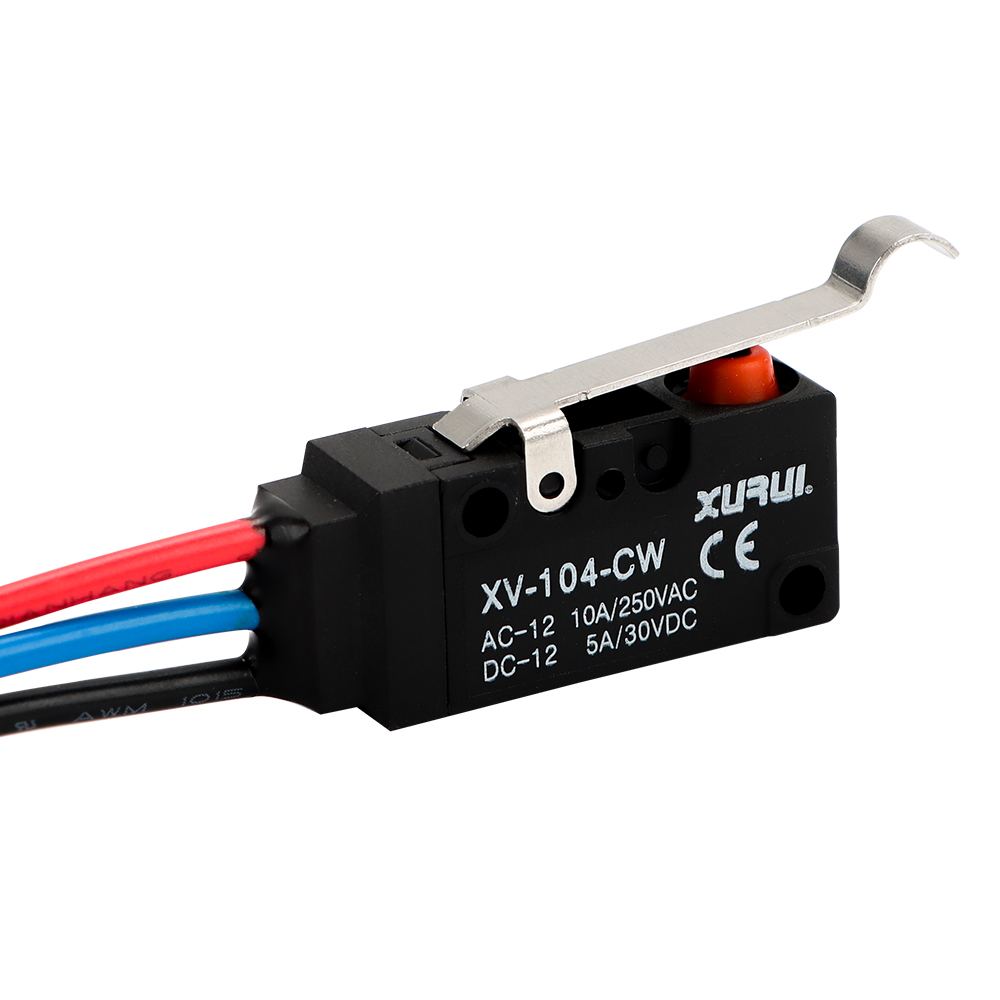

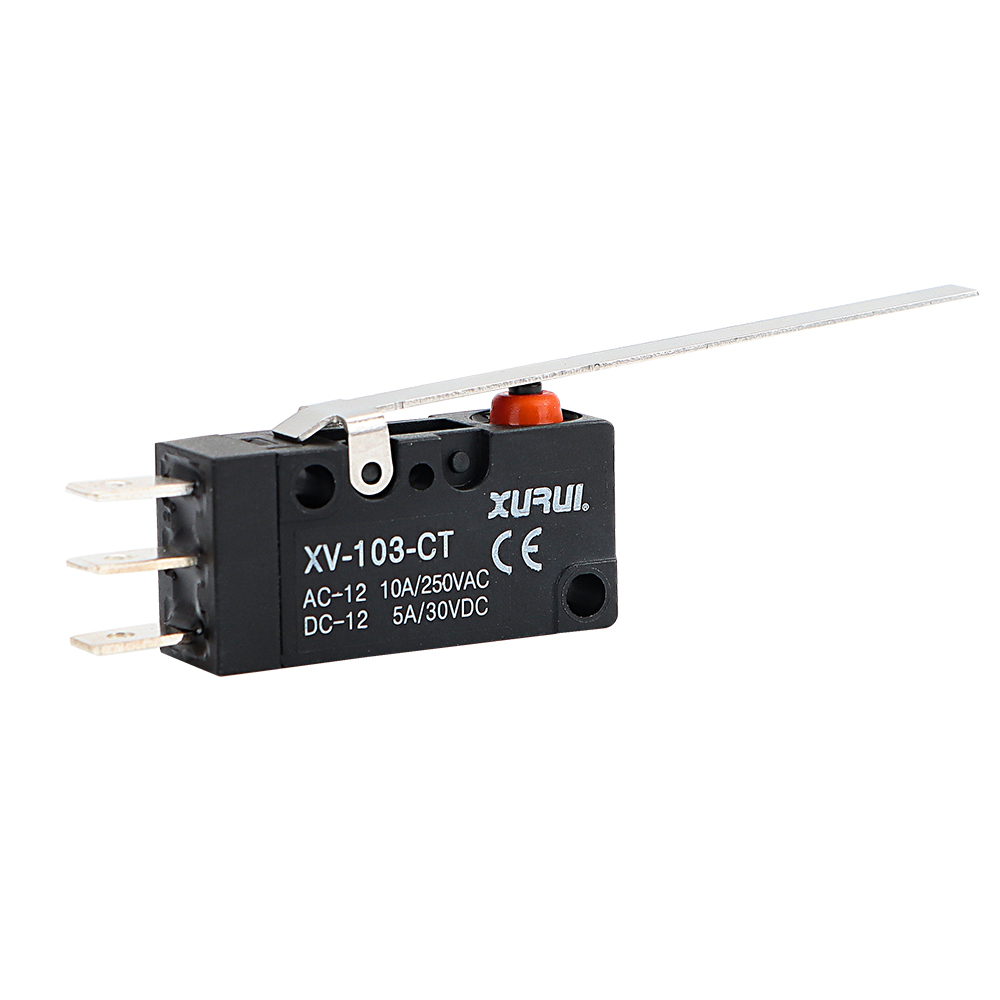

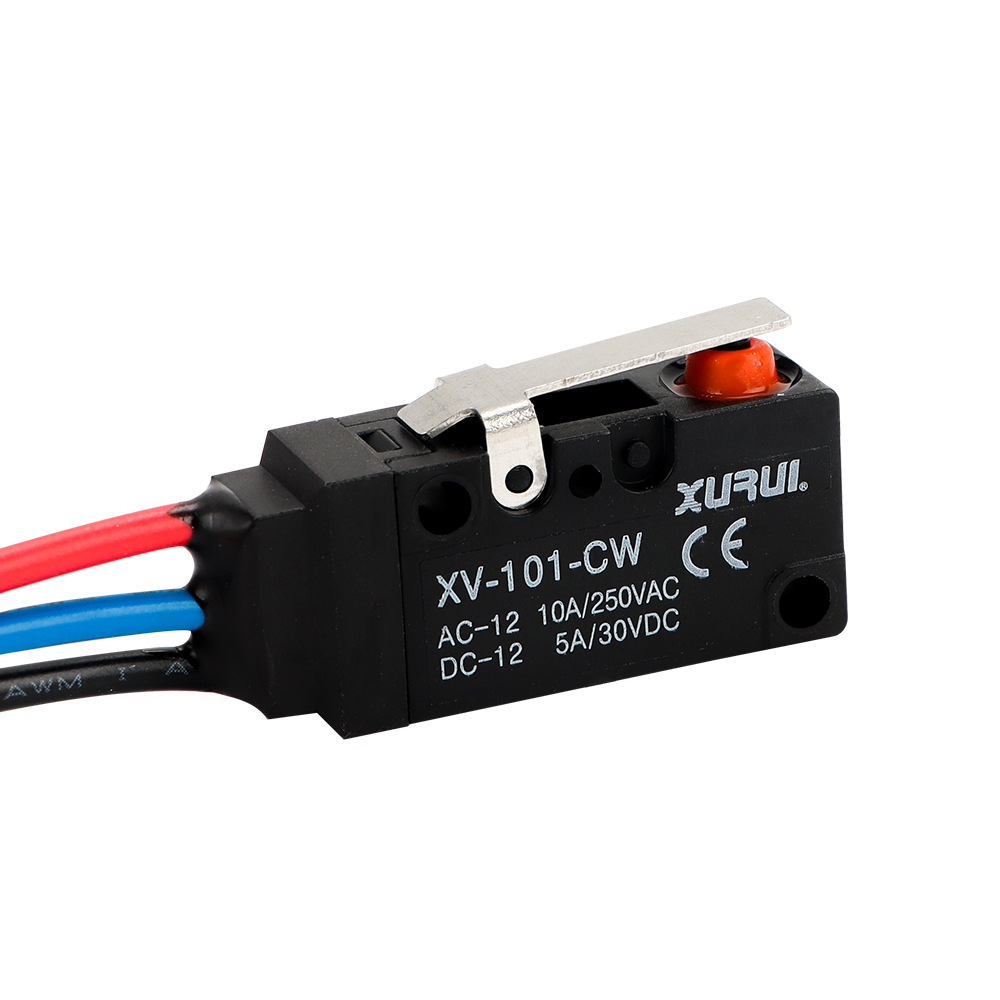

XV-10 Waterproof Micro Switch

XV-10 Waterproof Micro Switch Overview

The XV-10 Series Waterproof Micro Switch is a high-precision, compact micro switch designed for harsh environments. With an IP67 protection rating, it is ideal for use in household appliances, industrial automation, automotive electronics, medical equipment, and instrumentation.

Specifications

Item	Value
Rated Load	AC-12 10A/250VAC; DC-12 5A/30VDC
Mechanical Operating Frequency	60 cycles/min
Electrical Operating Frequency	30 cycles/min
Insulation Resistance	≥100MΩ (DC 500V)
Contact Resistance	≤100mΩ (Initial Value)
Withstand Voltage (Non-connection wire)	1000VAC
Withstand Voltage (Every terminal)	1500VAC
Vibration Resistance	10~55Hz Amplitude 1.5mm
Impact Resistance (Durable)	1000m/s²
Impact Resistance (Misoperation)	300m/s²
Mechanical Life	≥1,000,000 cycles
Electrical Life	≥100,000 cycles
Protection Degree	IP67
Operating Temperature	-25℃ ~ +80℃
Operating Humidity	<85%

Application Scenarios

The XV-10 waterproof micro switch is widely used across various industries, offering reliable switching solutions:

Home Appliances: Dishwashers, washing machines, water heaters, induction cookers, rice cookers
Industrial Automation: Conveyor detection, robotic arm control, limit switches, foot switches
Power Equipment: Control cabinets, gas-insulated switchgear, circuit breakers, operating mechanisms
Automotive Electronics: Door locks, wiper switches, power windows, seat adjusters
Medical Devices: Infusion pumps, electric hospital beds, medical sensor systems
Outdoor Equipment: Smart access control systems, security devices, EV charging stations
