XWS-6 Waterproof Micro Switch

XWS-6 Waterproof Micro Switch Overview

The XWS-6 Series Waterproof Micro Switch is a high-precision, compact switch with a high protection rating (IP67), specifically designed for harsh environments. It is widely used in home appliances, industrial automation, automotive electronics, medical devices, and instrumentation.

• IP67 Waterproof & Dustproof: Built to perform in humid, dusty, and high-contamination environments with reliable IP67 protection.

•Rugged Housing Materials: Constructed with durable thermoset or thermoplastic materials for superior strength and stability.

•Fast & Sensitive Switching: Designed with a small contact gap, short travel, and quick response for accurate low-power control.

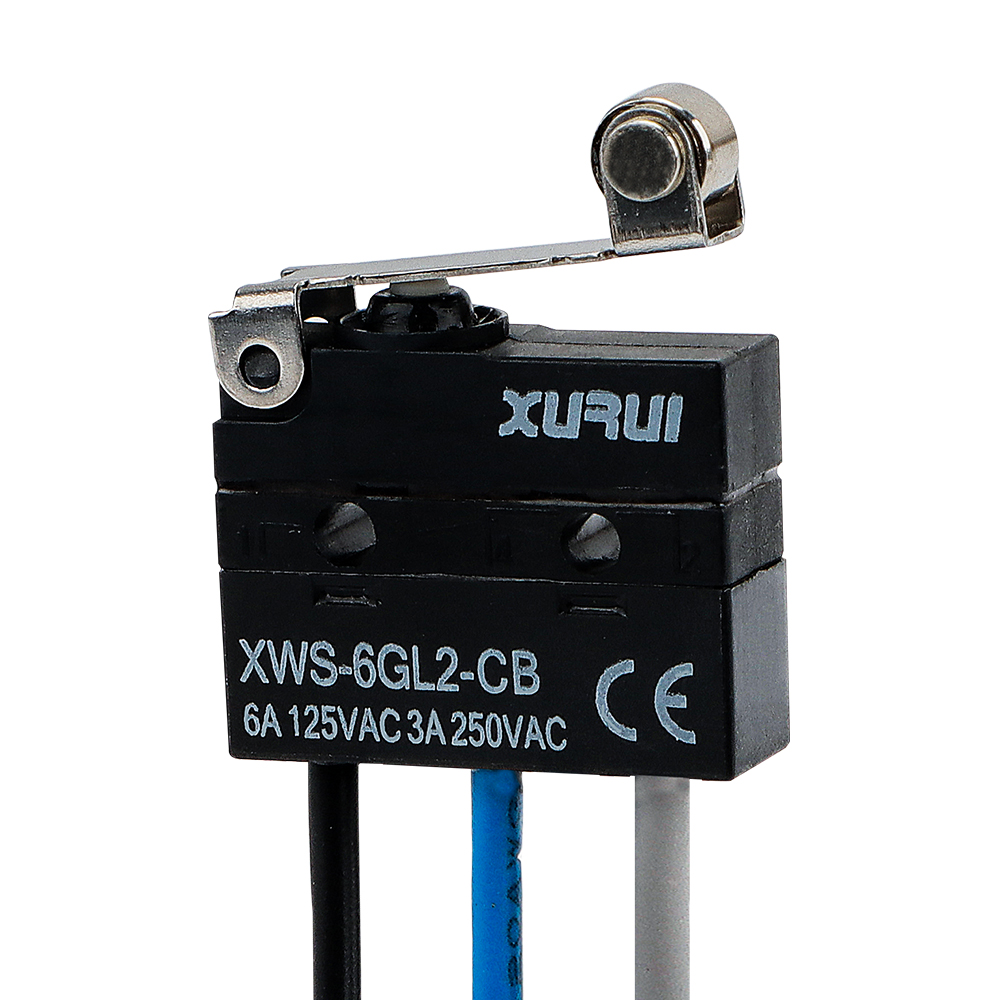

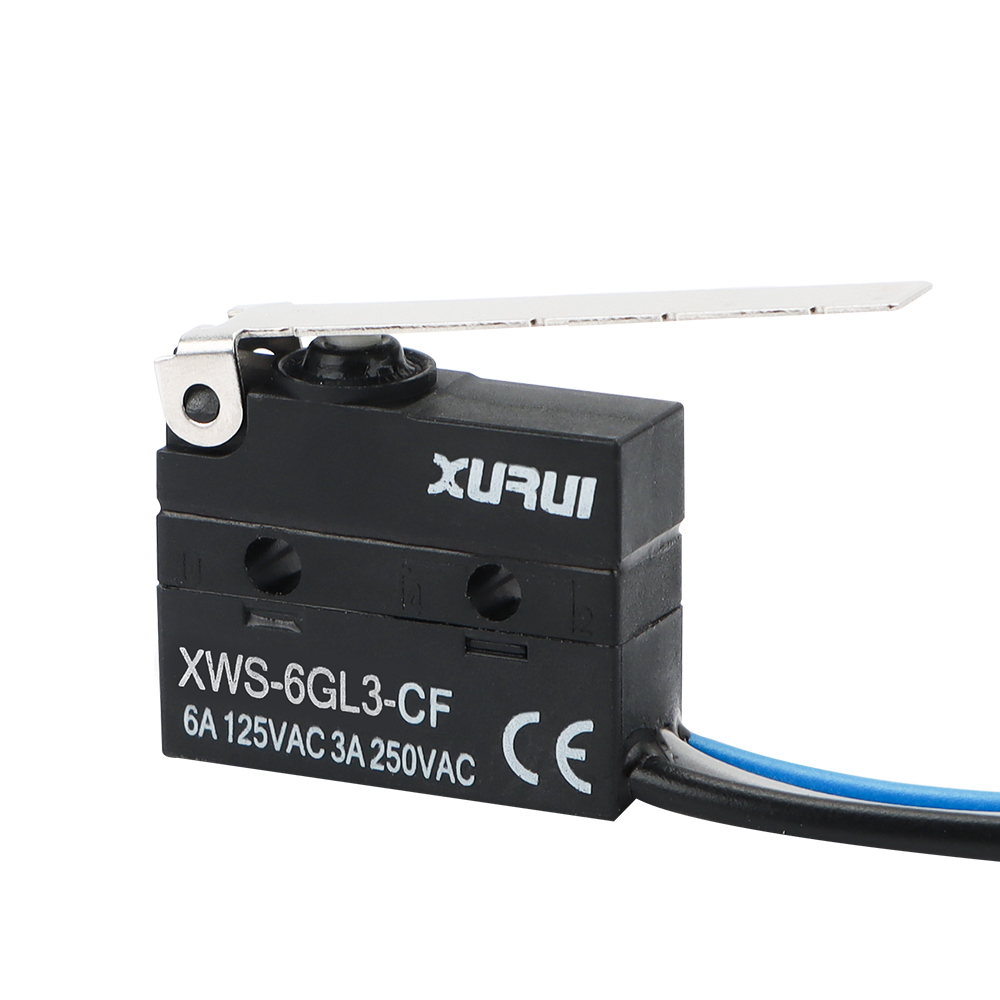

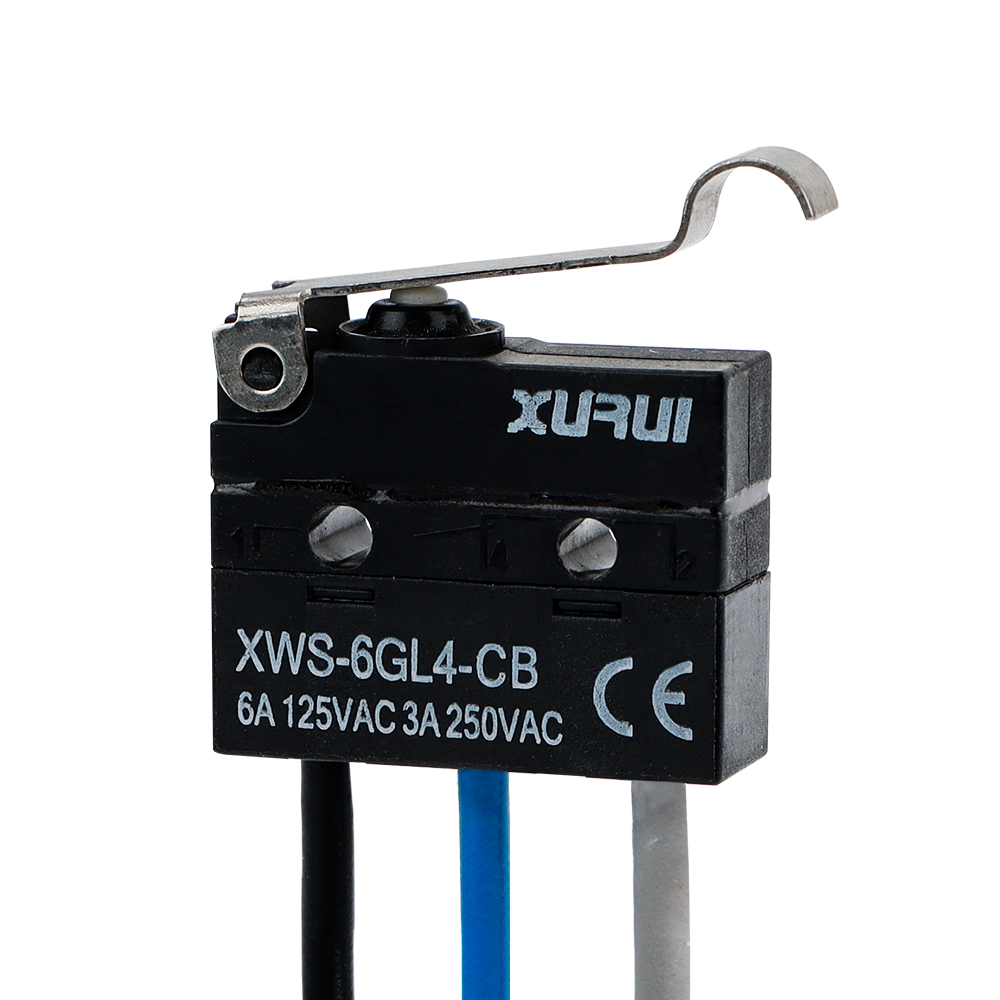

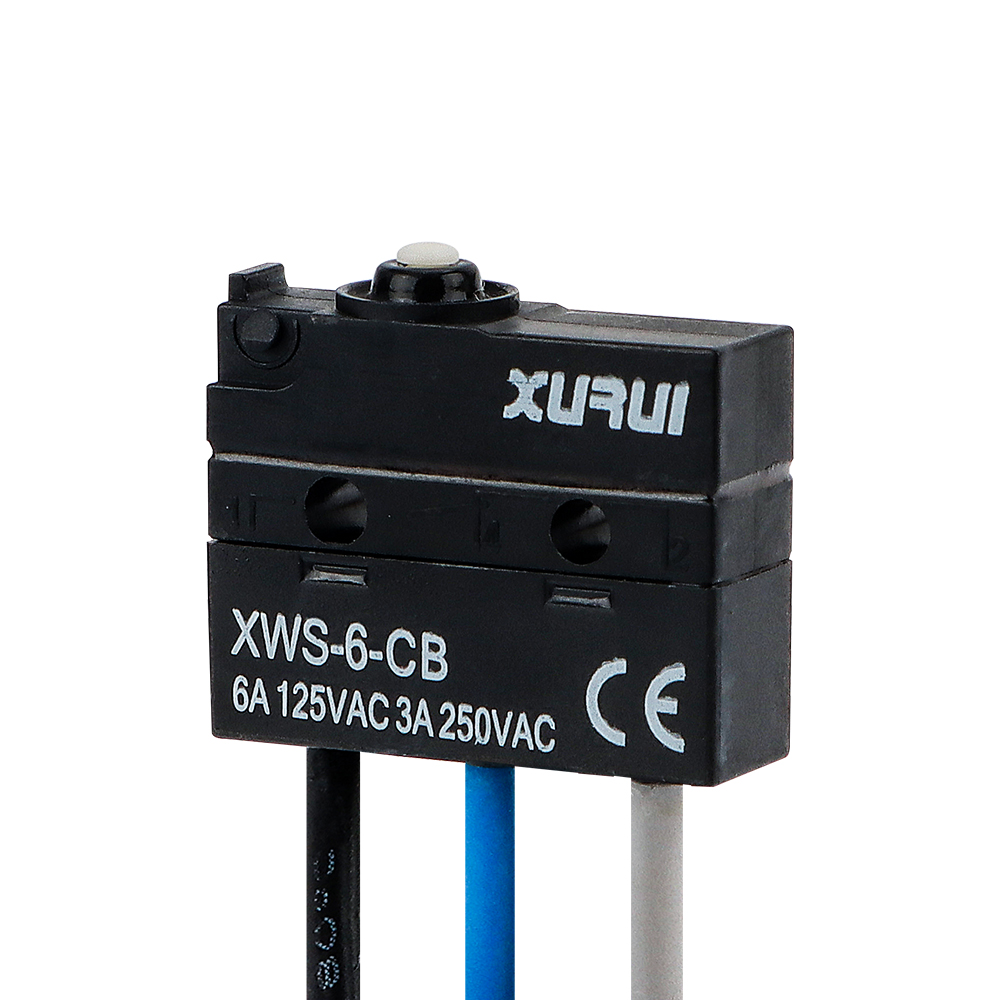

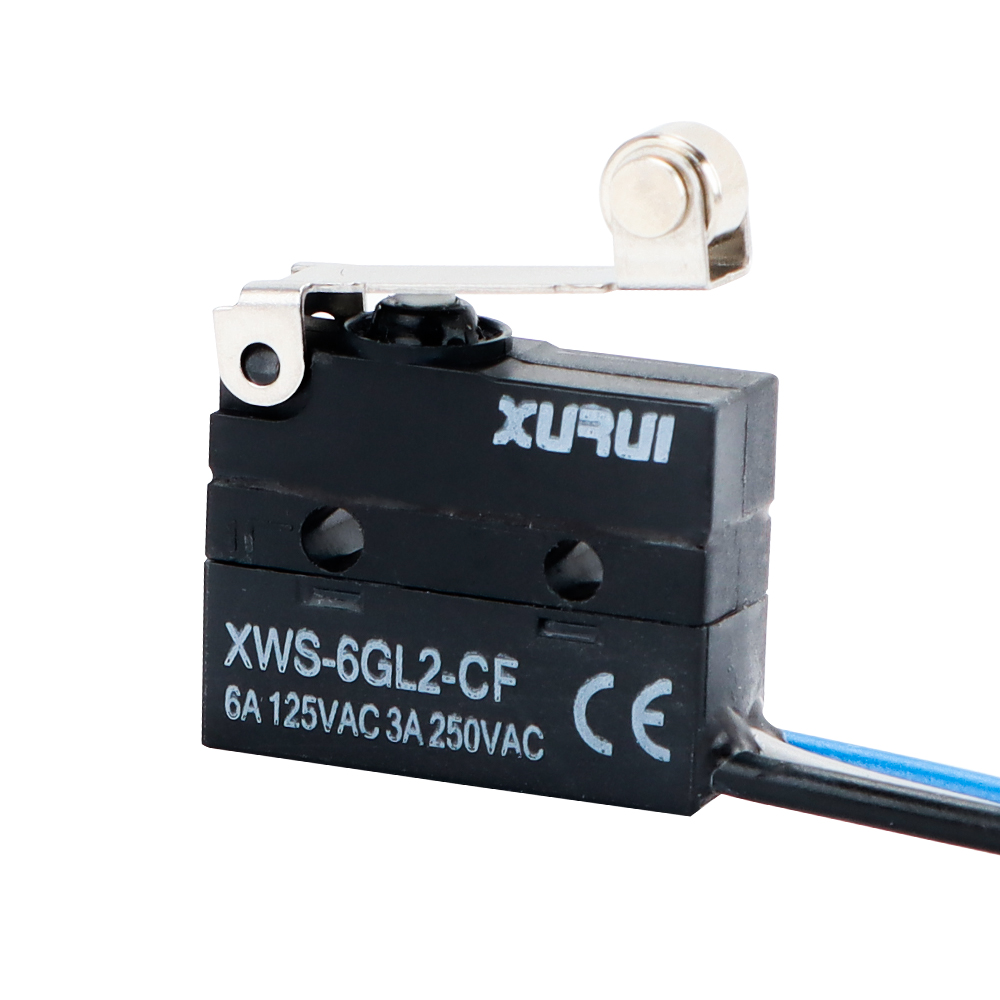

•Versatile Actuator Styles: Offers a range of actuator types including buttons, levers, and roller handles to fit various applications.

•Globally Certified: Meets CE, RoHS, and CCC international safety standards for assured quality and compliance.

Specification

Item	Value
Rated Load	6A/125VAC; 3A/250VAC
Mechanical Operating Frequency	60 cycles/min
Electrical Operating Frequency	30 cycles/min
Insulation Resistance	≥100MΩ (DC 500V)
Contact Resistance	≤100mΩ (Initial Value)
Withstand Voltage (Non-connection wire)	1000VAC
Withstand Voltage (Every terminal)	1500VAC
Vibration Resistance	10~55Hz Amplitude 1.5mm
Impact Resistance (Durable)	1000m/s²
Impact Resistance (Misoperation)	300m/s²
Mechanical Life	≥1,000,000 cycles
Electrical Life	≥100,000 cycles
Protection Degree	IP67
Operating Temperature	-25℃ ~ +80℃
Operating Humidity	<85%

Application Scenarios

The XWS-6 waterproof micro switch is widely used across various industries, delivering reliable switching performance in diverse environments:

Home Appliances: Dishwashers, washing machines, water heaters, induction cookers, rice cookers
Industrial Automation: Machine tool limit switches, conveyor belt monitoring, robotic arm control
Automotive Electronics: Door locks, wiper switches, power windows, seat adjustment systems
Medical Devices: Infusion pumps, electric hospital beds, medical sensing equipment
Outdoor Equipment: Smart access control systems, security devices, EV charging stations
Aerospace & Military Applications: Equipment for harsh environments such as ships, aircraft, and high-voltage systems
