XZ-15 Series Micro Switch

Precise & Responsive Switching: Small contact gap design delivers high sensitivity and rapid response for reliable performance.

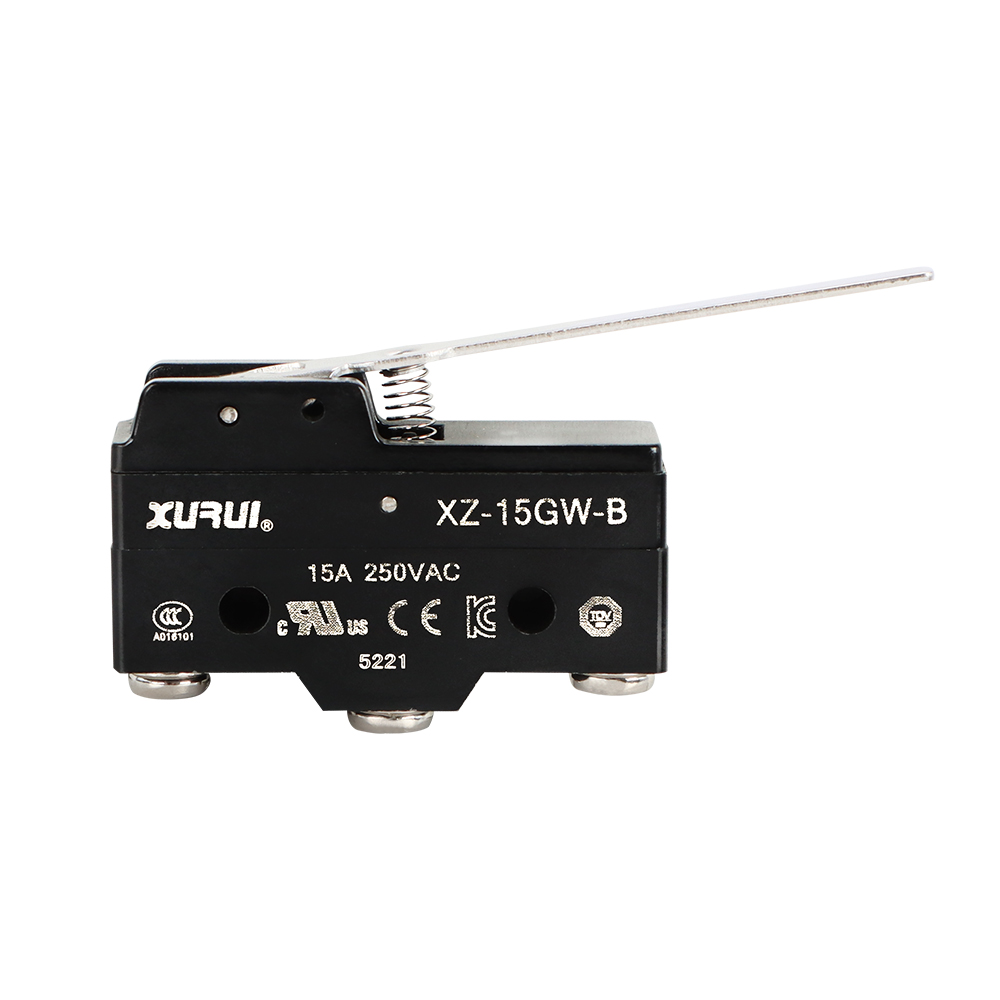

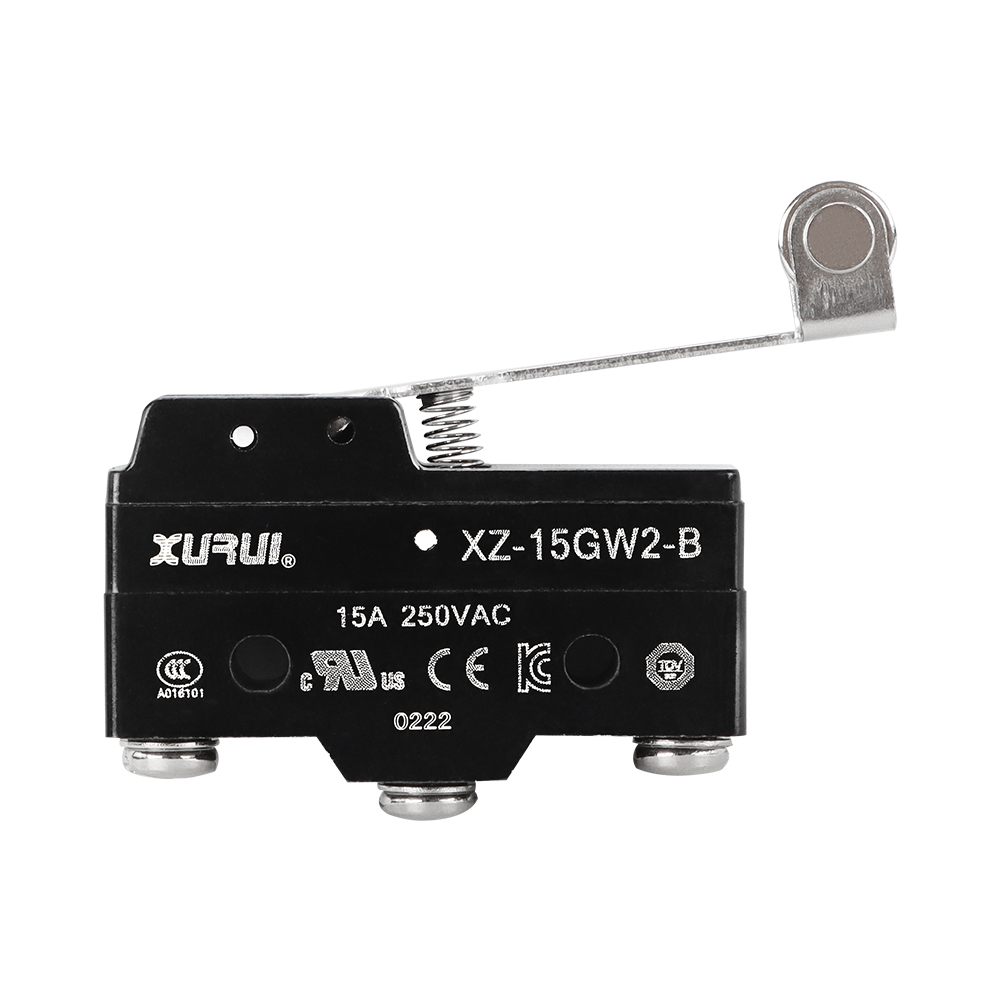

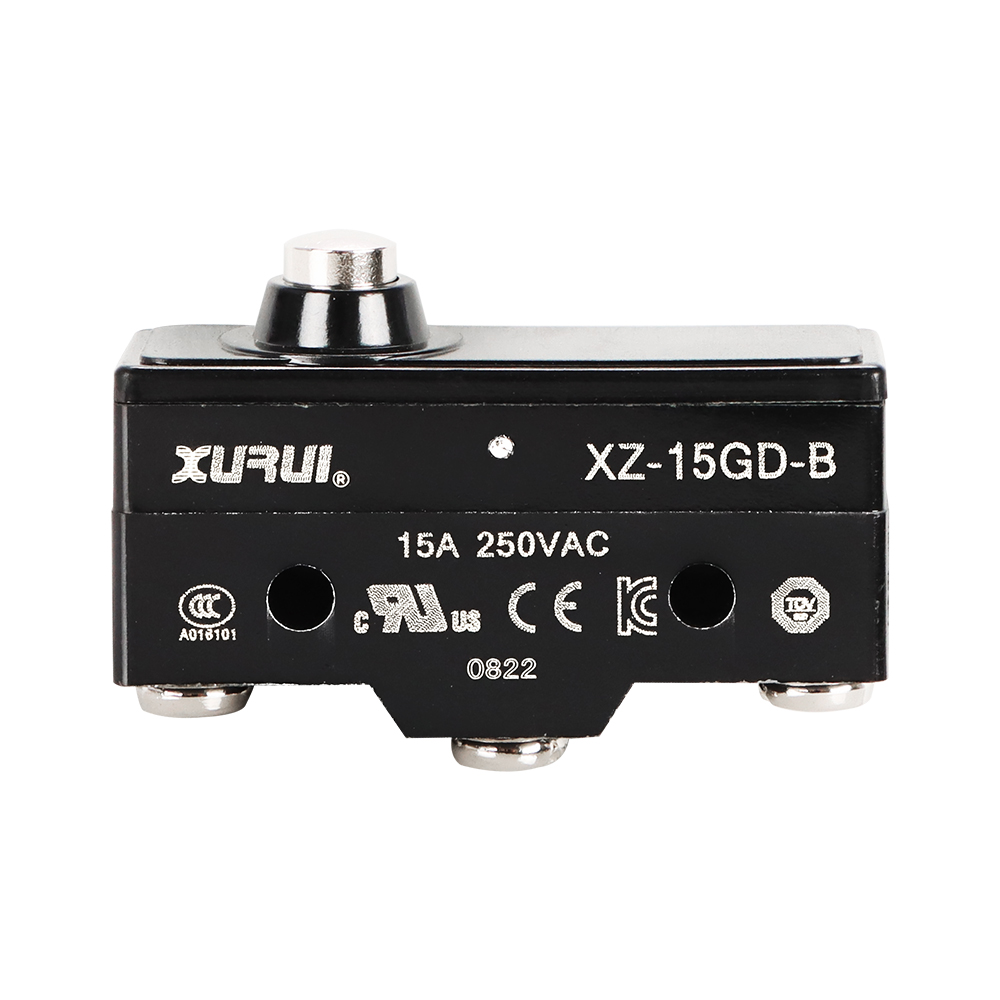

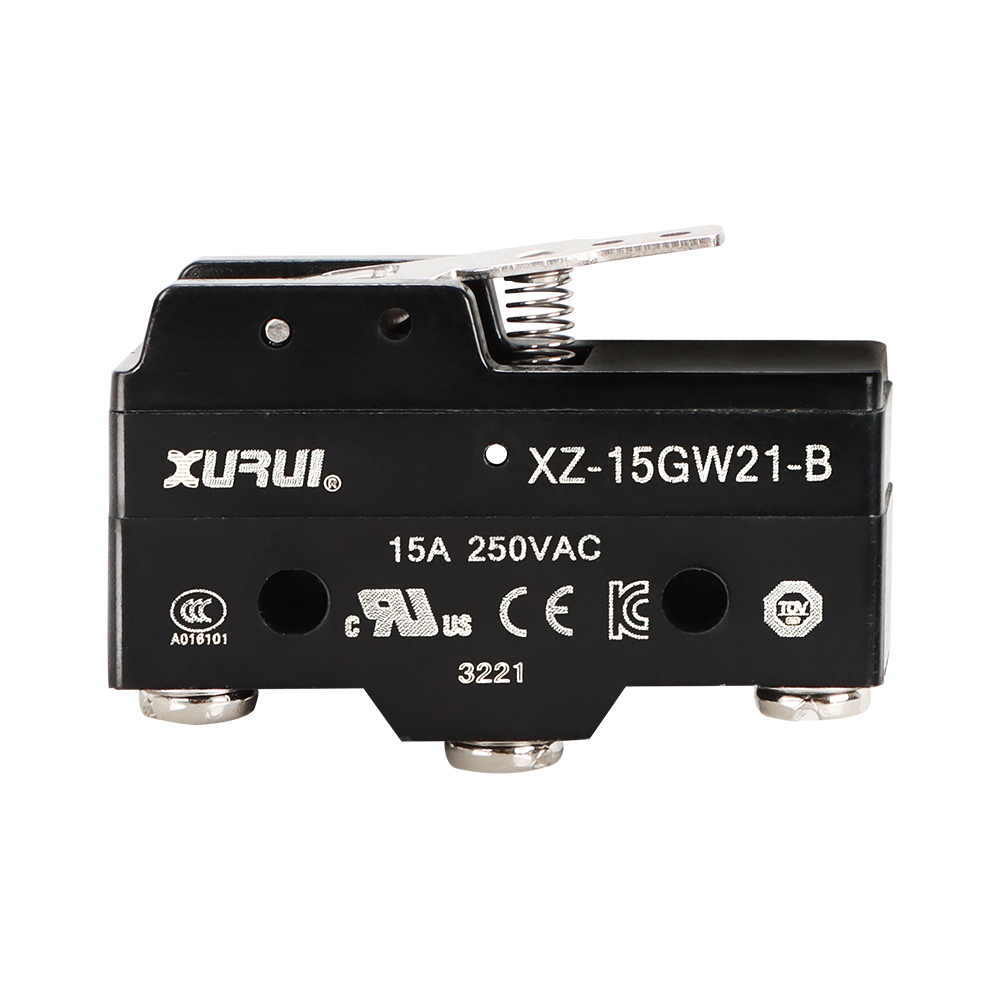

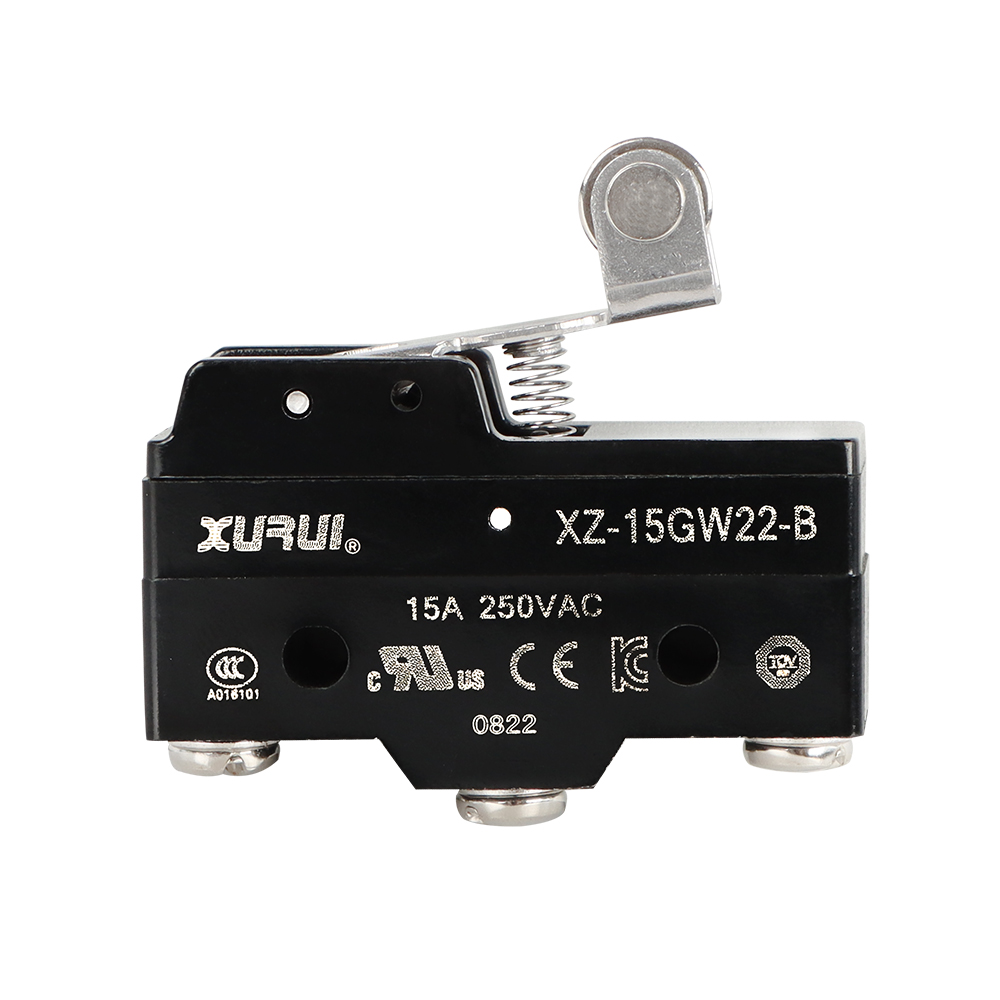

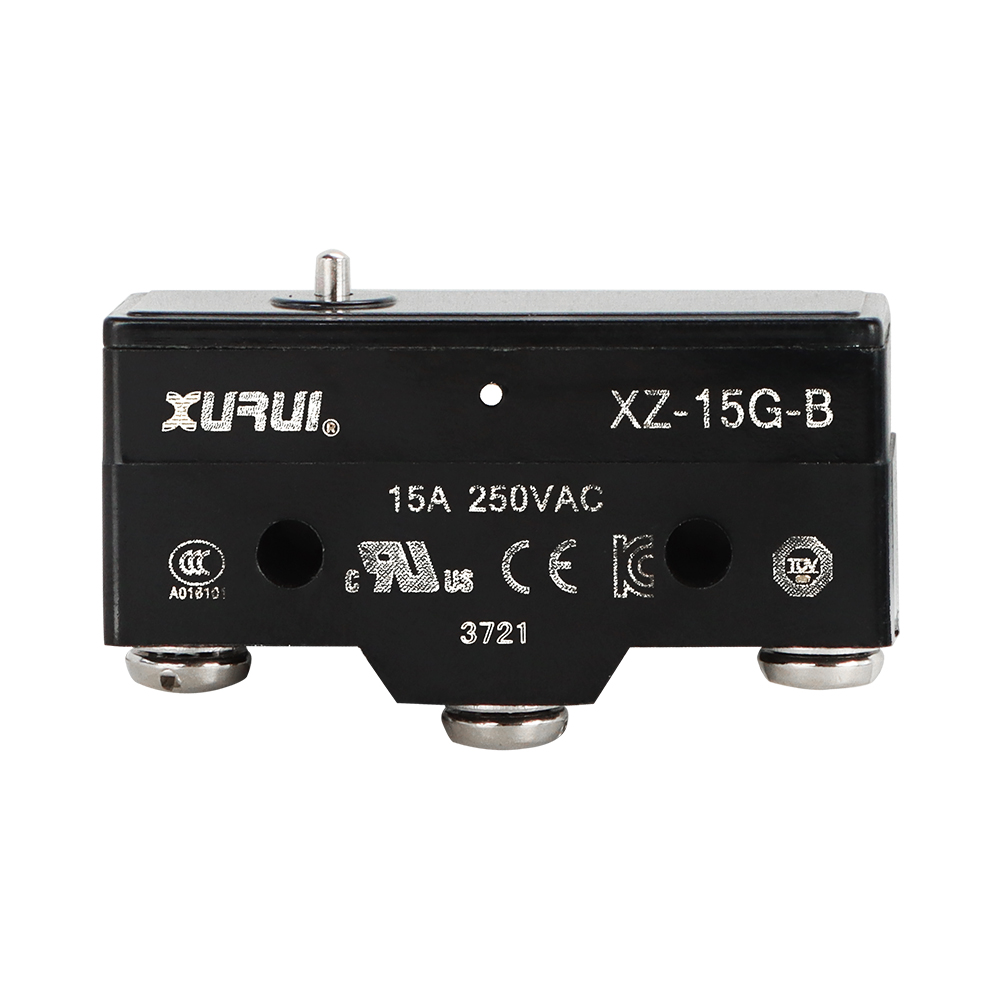

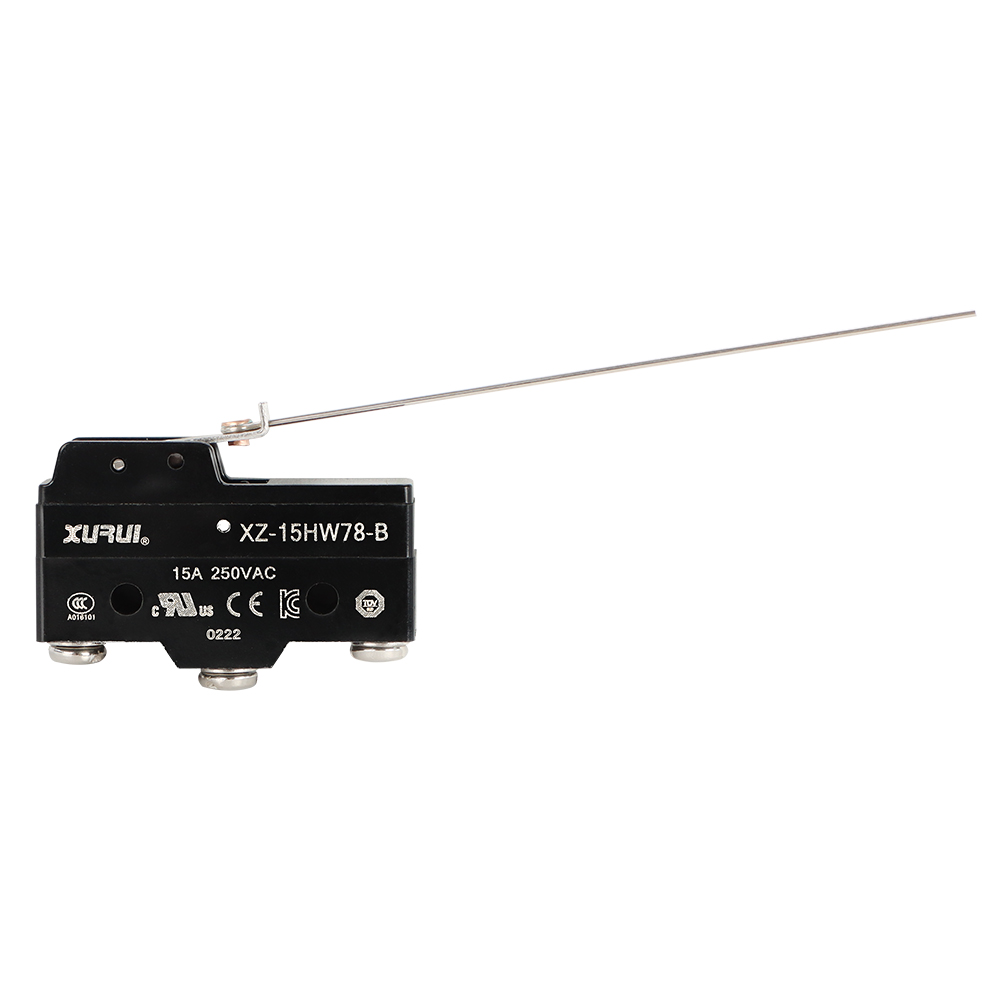

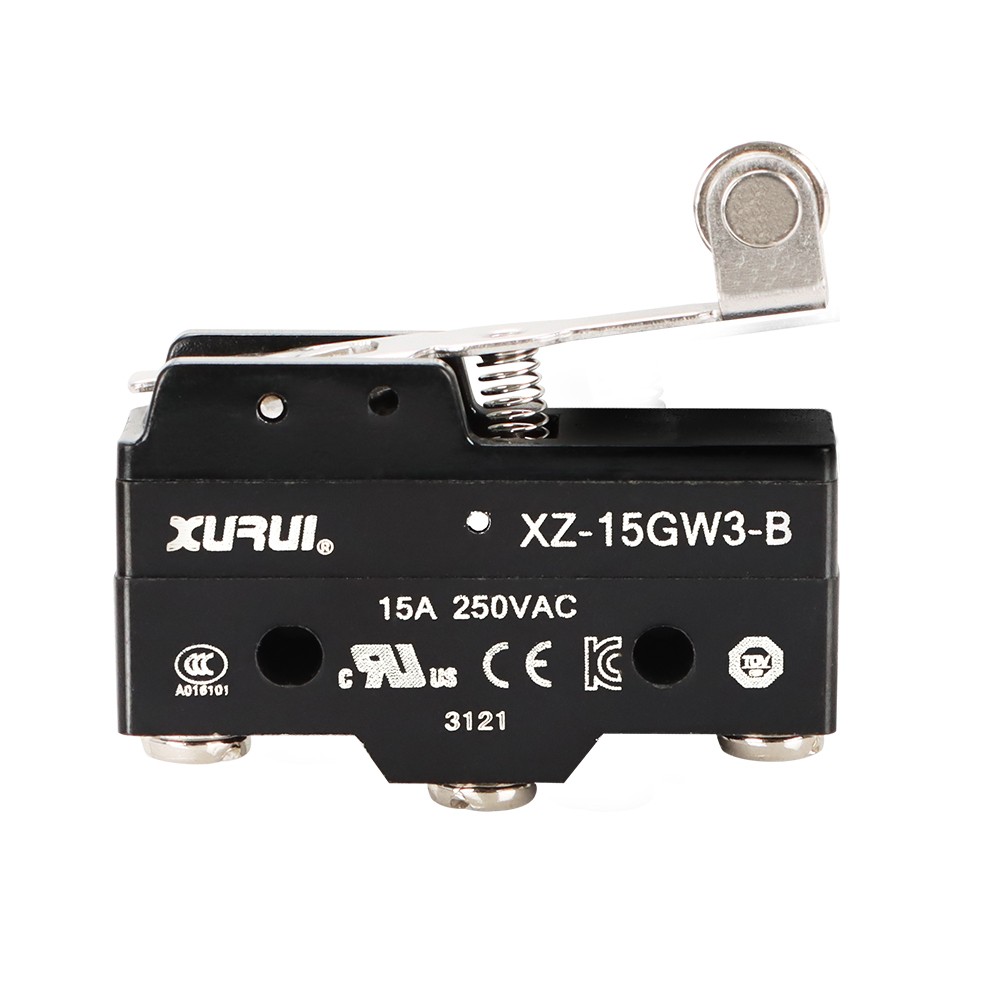

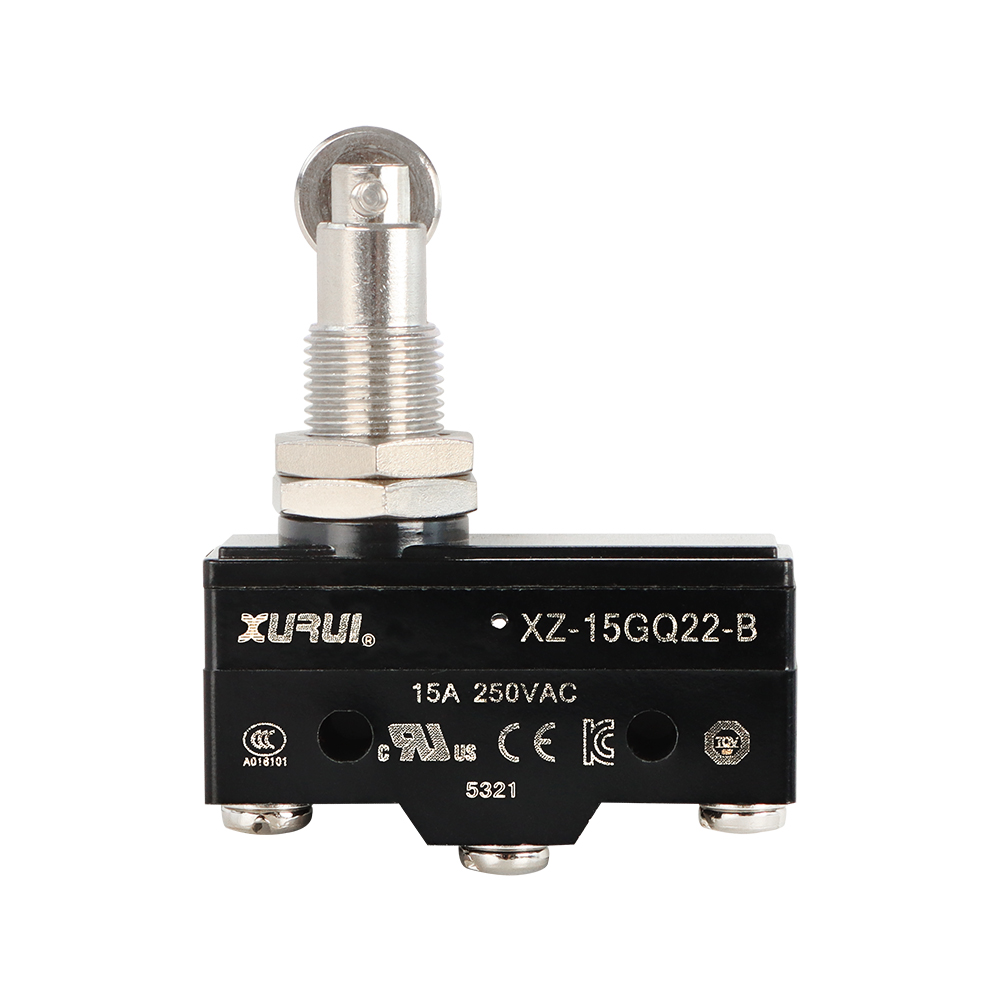

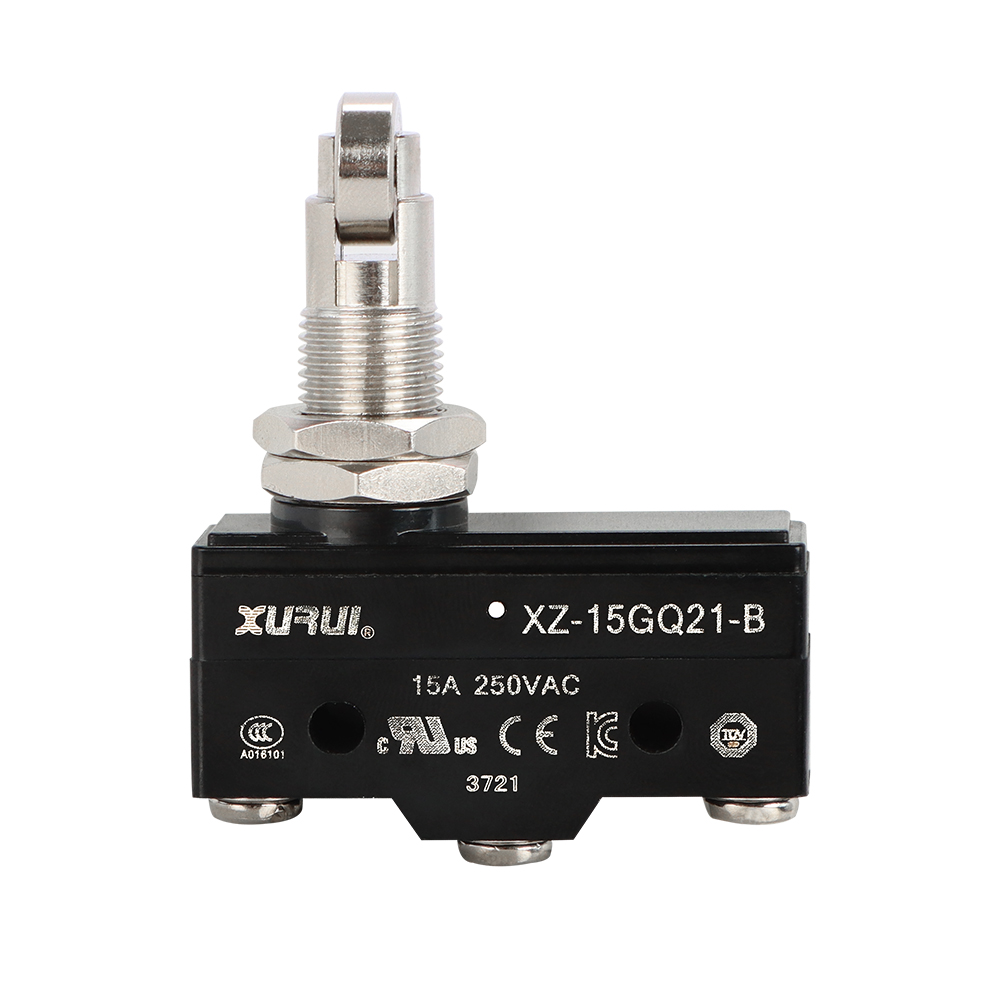

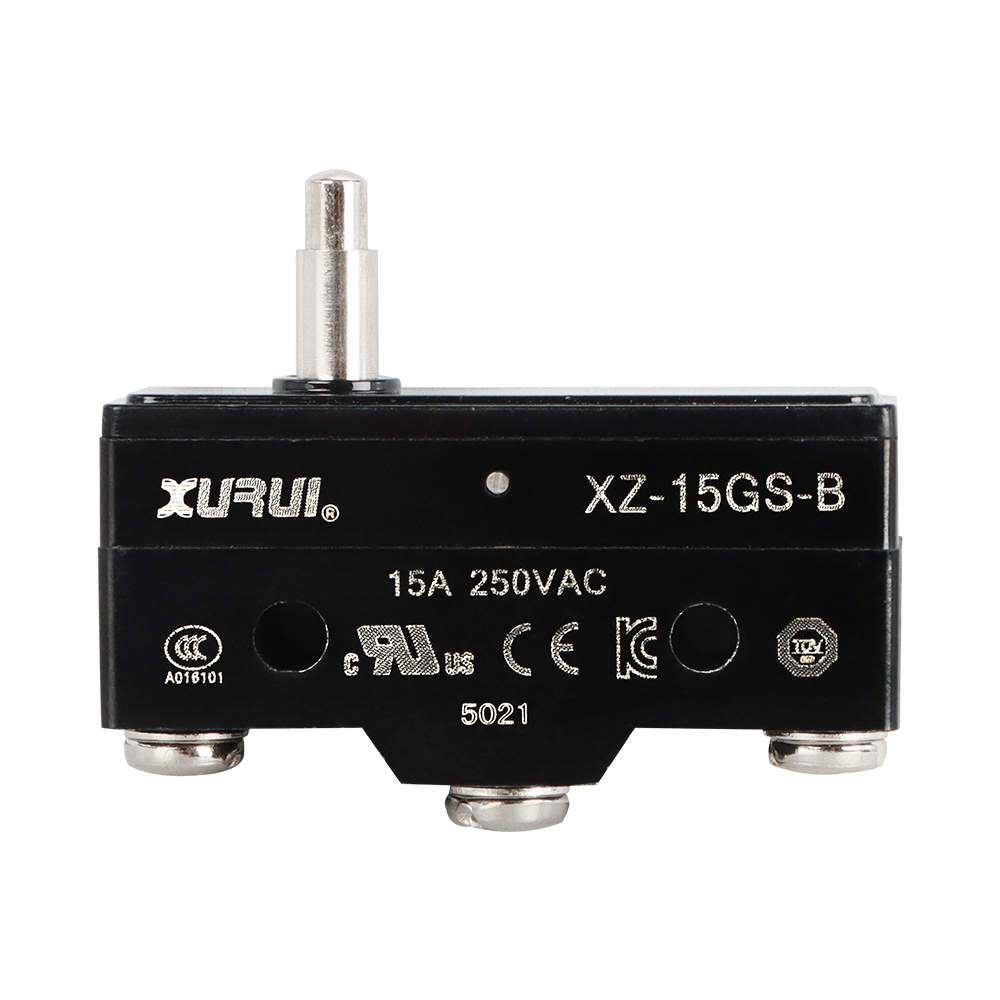

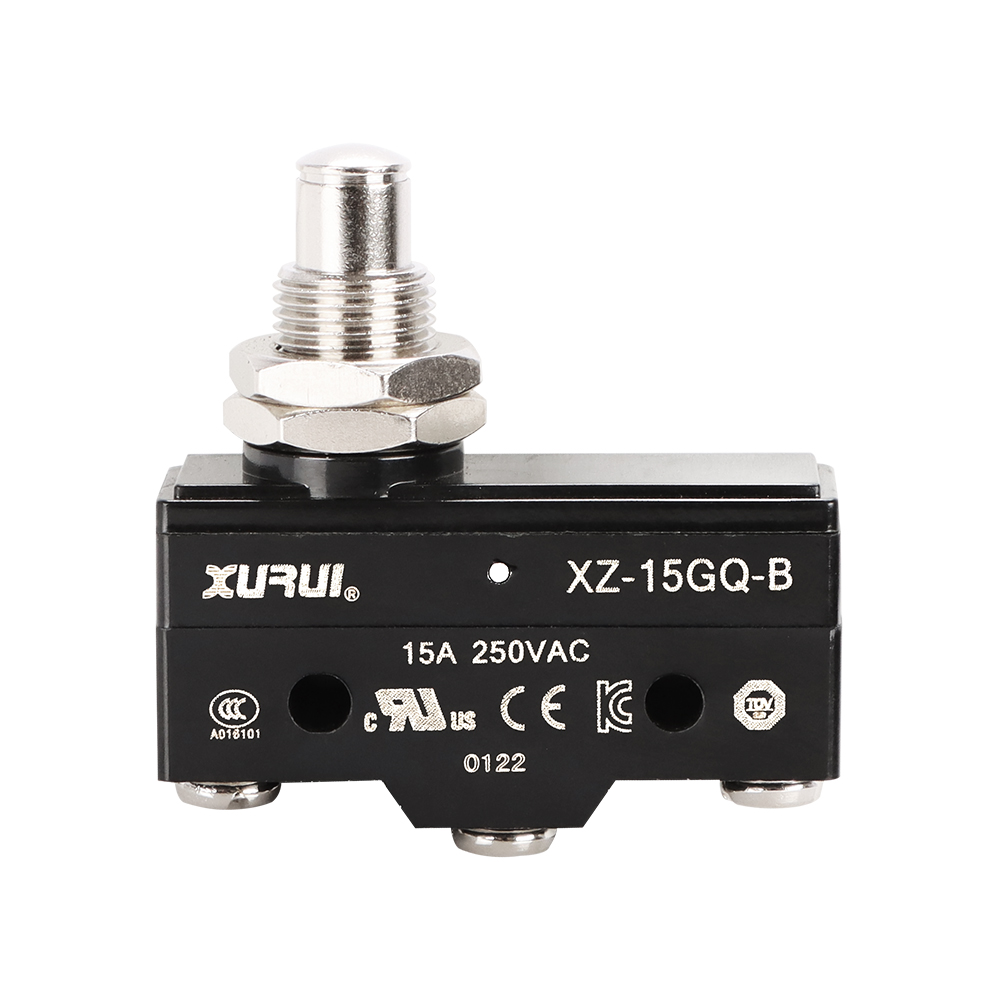

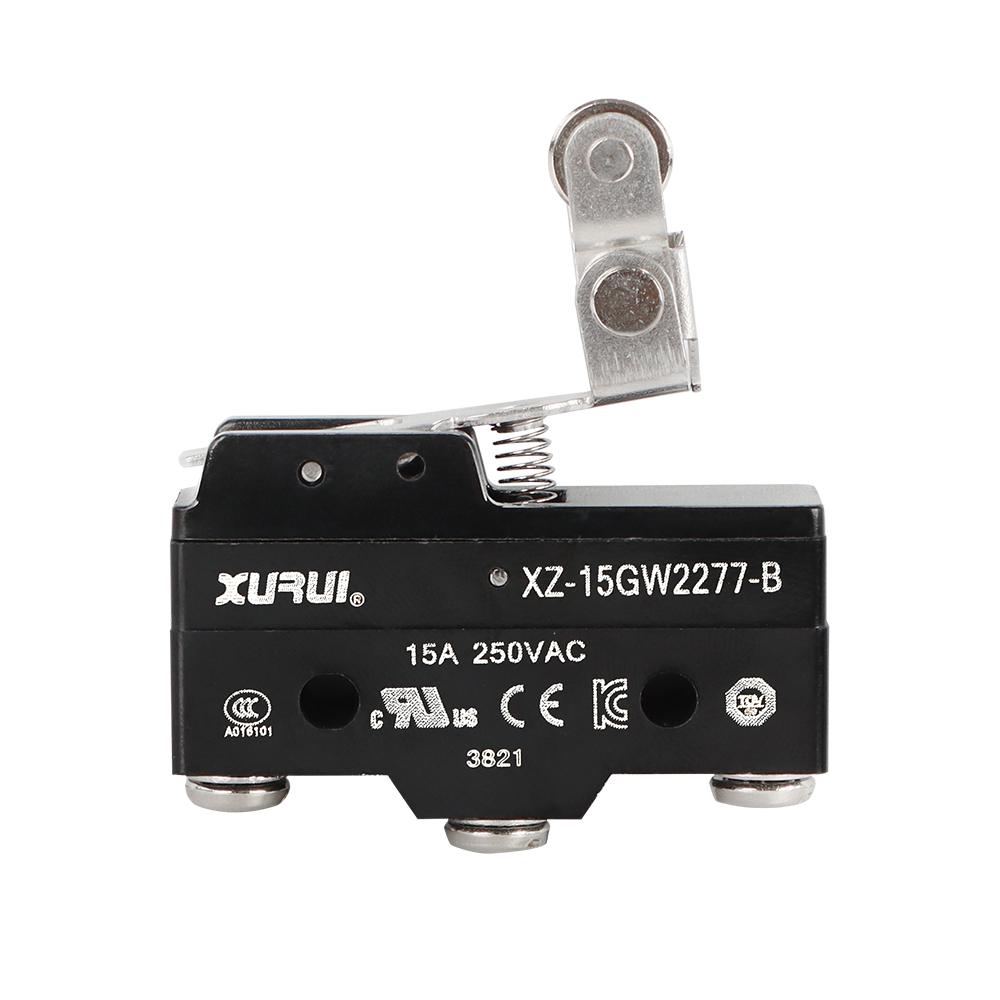

Multiple Actuator Types: Choose from button, lever, and roller options to meet diverse installation and application needs.

Internationally Certified: Compliant with CE, TUV, UL, KC, CCC, and RoHS standards for global safety and quality assurance.

Durable Housing Materials: Constructed with high-performance engineering plastics for long-term stability and insulation.

Material Options for Different Environments:

‣ Black Housing (PF – Phenolic Resin): Excellent heat resistance for high-temperature applications, with a trade-off in brittleness.

‣ Blue Housing (PA66 – Polyamide): Lower heat tolerance but superior impact resistance—tougher and less prone to cracking.

描述

XZ-15 Micro Switch Overview

The XZ-15 Series Micro Switch is an industrial-grade switch designed for high-load, high-temperature, and heavy-duty applications, widely used in machinery, automation systems, power equipment, home appliances, and automotive electronics.

Rating

Rated Voltage Ue (V)	Rated Current Ie (A)	Thermal Current Ith (A)
AC–250	15	20
AC–125	15	20
DC–250	0.3	0.45
DC–125	0.6	0.75

Specification

Item	Value
Operating Speed	1mm~1m/s
Mechanical Operating Frequency	240 cycles/min
Electrical Operating Frequency	20 cycles/min
Insulation Resistance	≥100MΩ (DC 500V)
Contact Resistance	≤25mΩ (Initial Value)
Withstand Voltage (Non-connection wire)	1000VAC
Withstand Voltage (Every terminal)	1500VAC
Vibration Resistance	10~55Hz Amplitude 1.5mm
Impact Resistance (Durable)	1000m/s²
Impact Resistance (Misoperation)	300m/s²
Mechanical Life	≥1,000,000 cycles
Electrical Life	≥100,000 cycles
Protection Degree	IP40
Operating Temperature	-25℃ ~ +80℃
Operating Humidity	<85%
