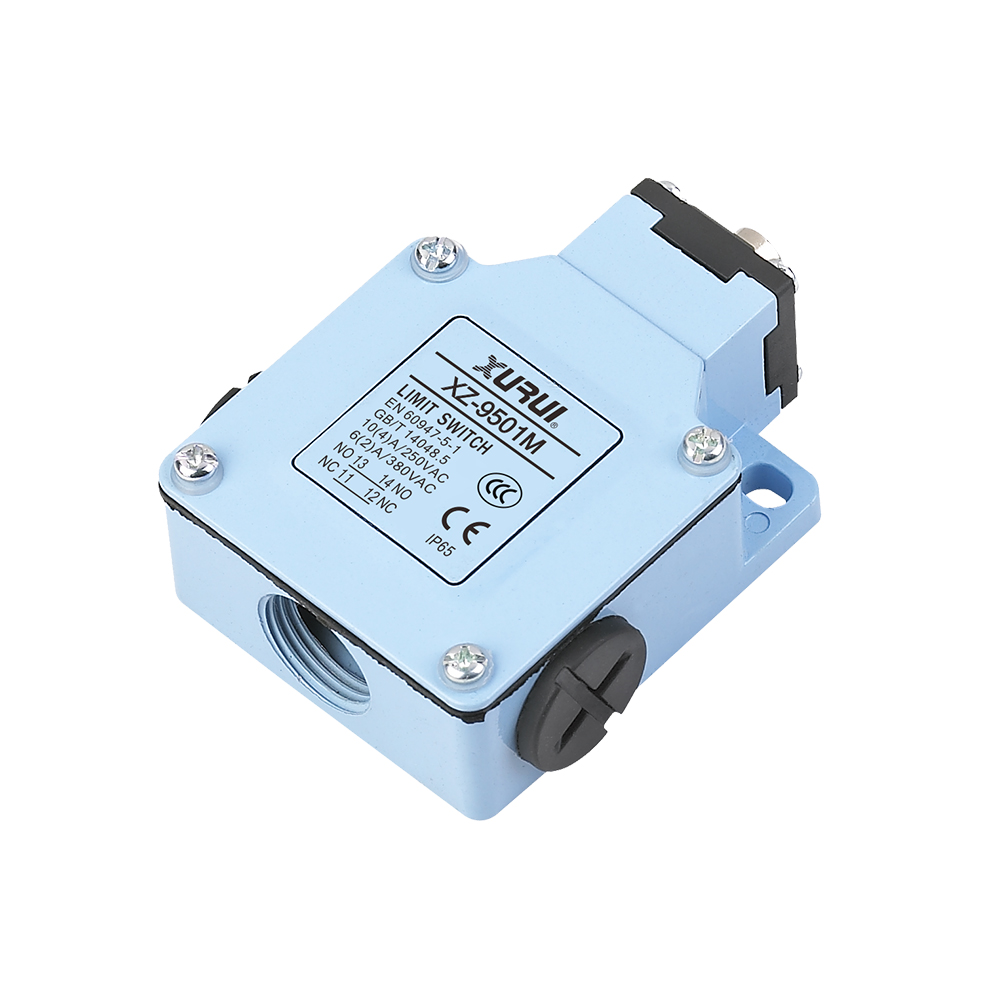

XZ-95 Series Limit Switch

Robust & Durable Construction: Zinc alloy housing offers excellent impact resistance, perfect for heavy-duty and industrial applications.

High Reliability: Dual micro switch design ensures precise and consistent actuation under repeated use.

IP65 Sealed Protection: Waterproof and dustproof enclosure allows stable operation in harsh environments.

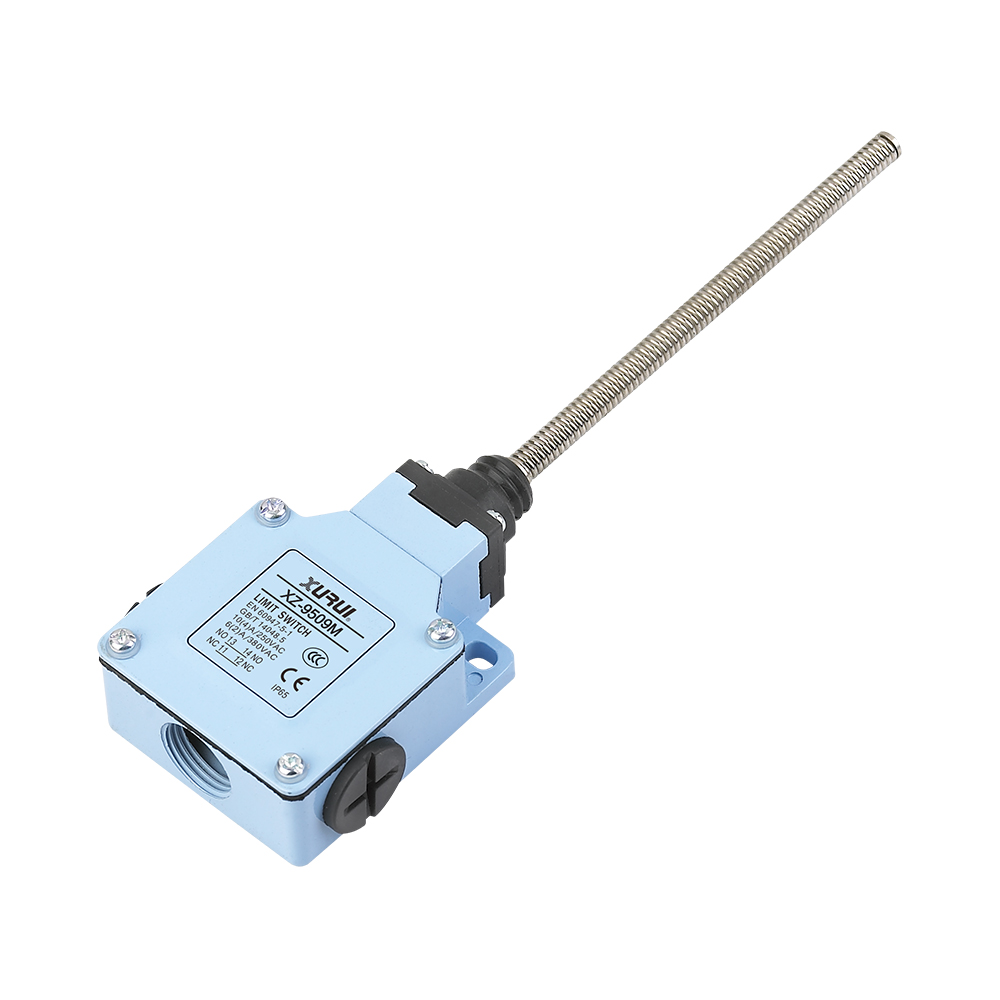

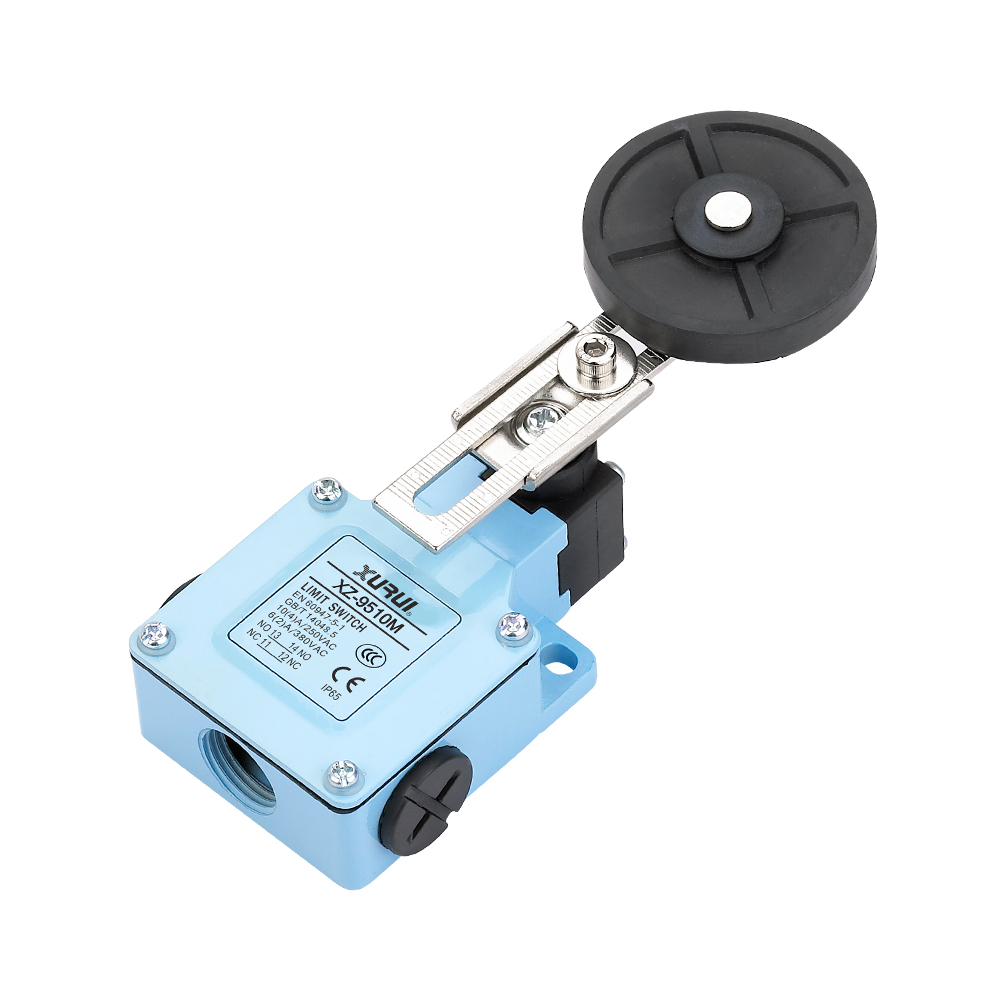

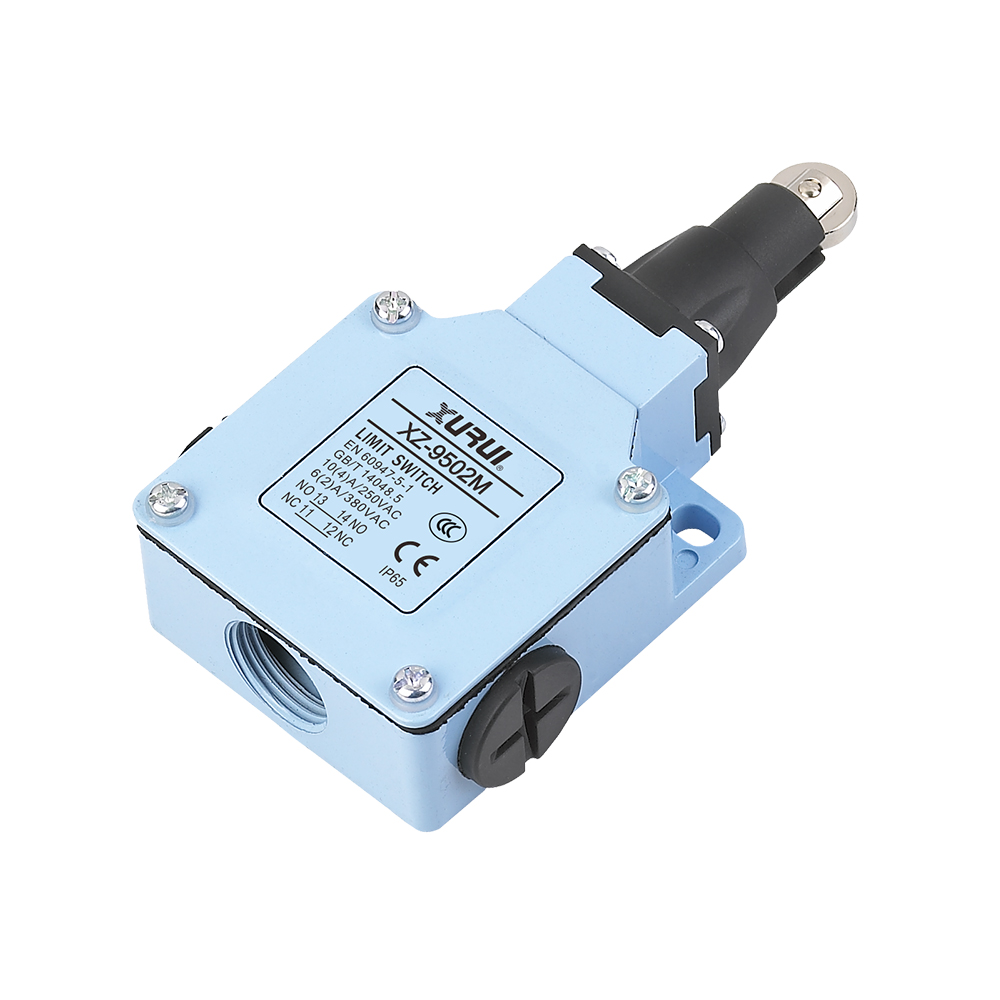

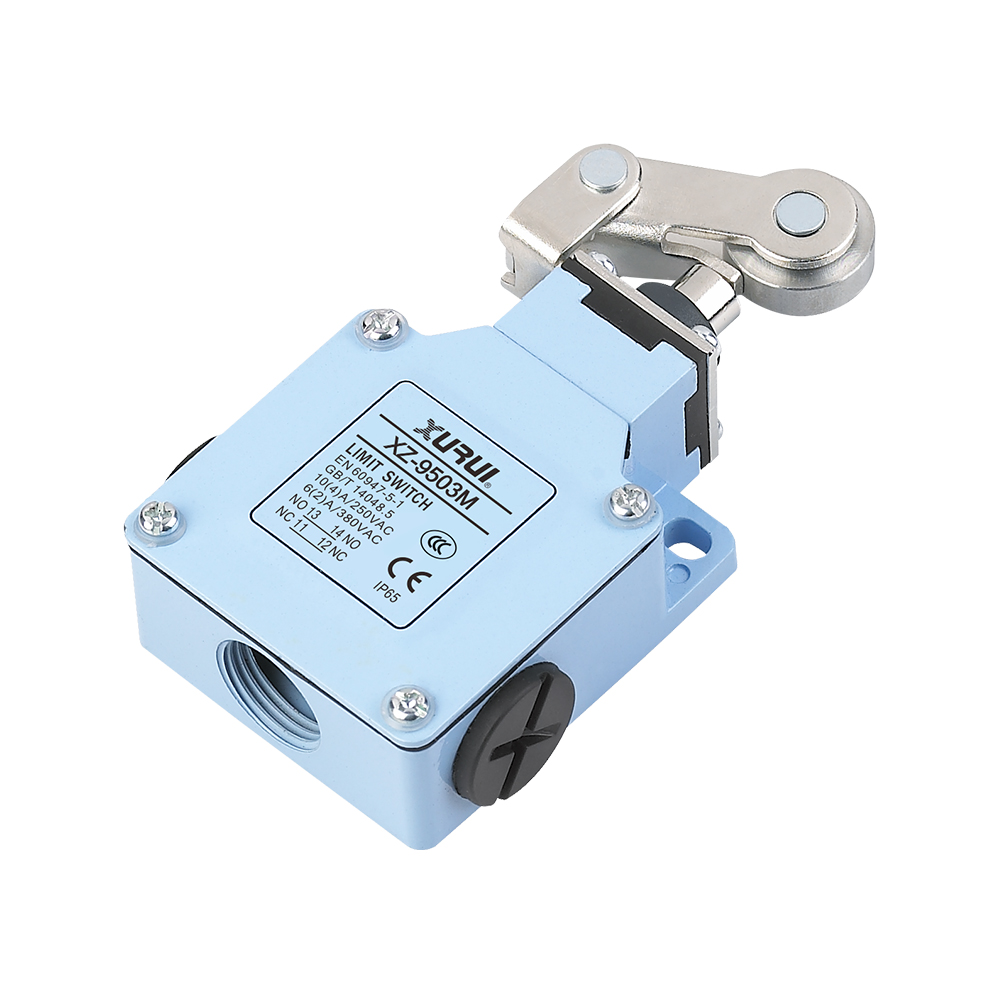

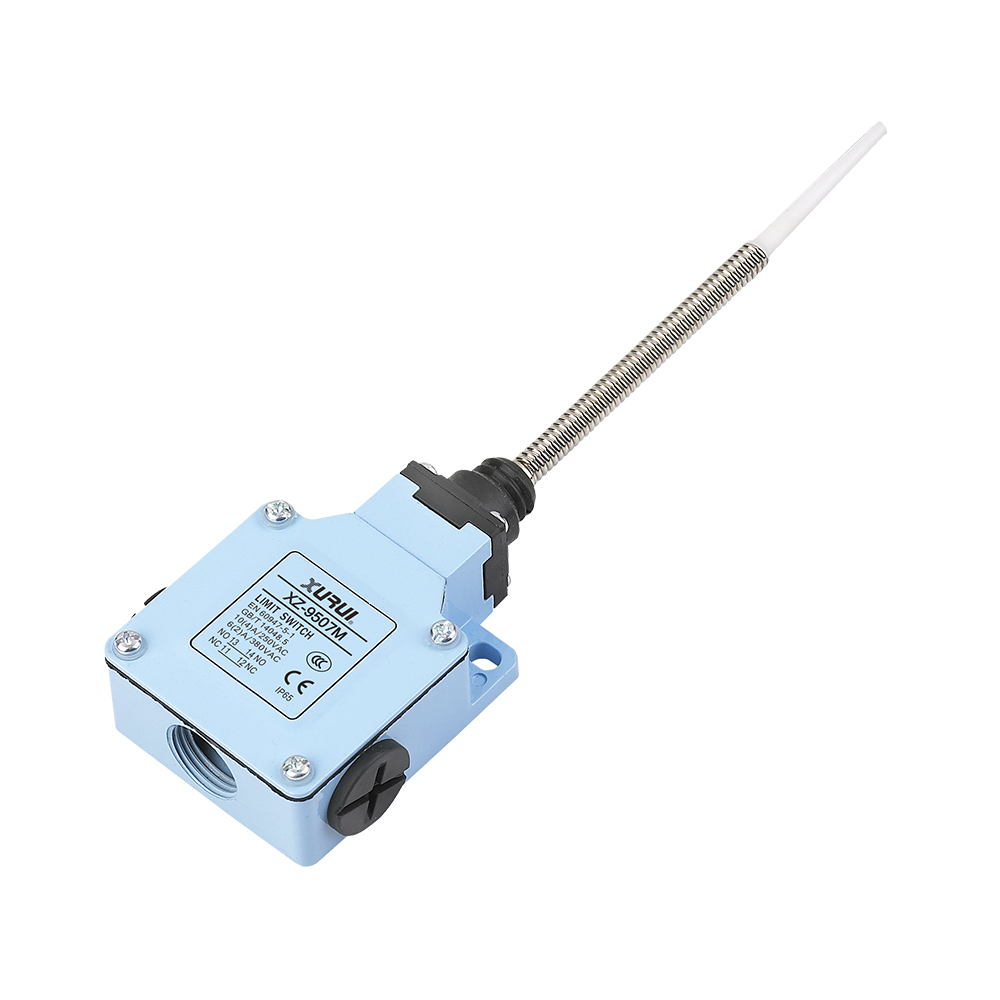

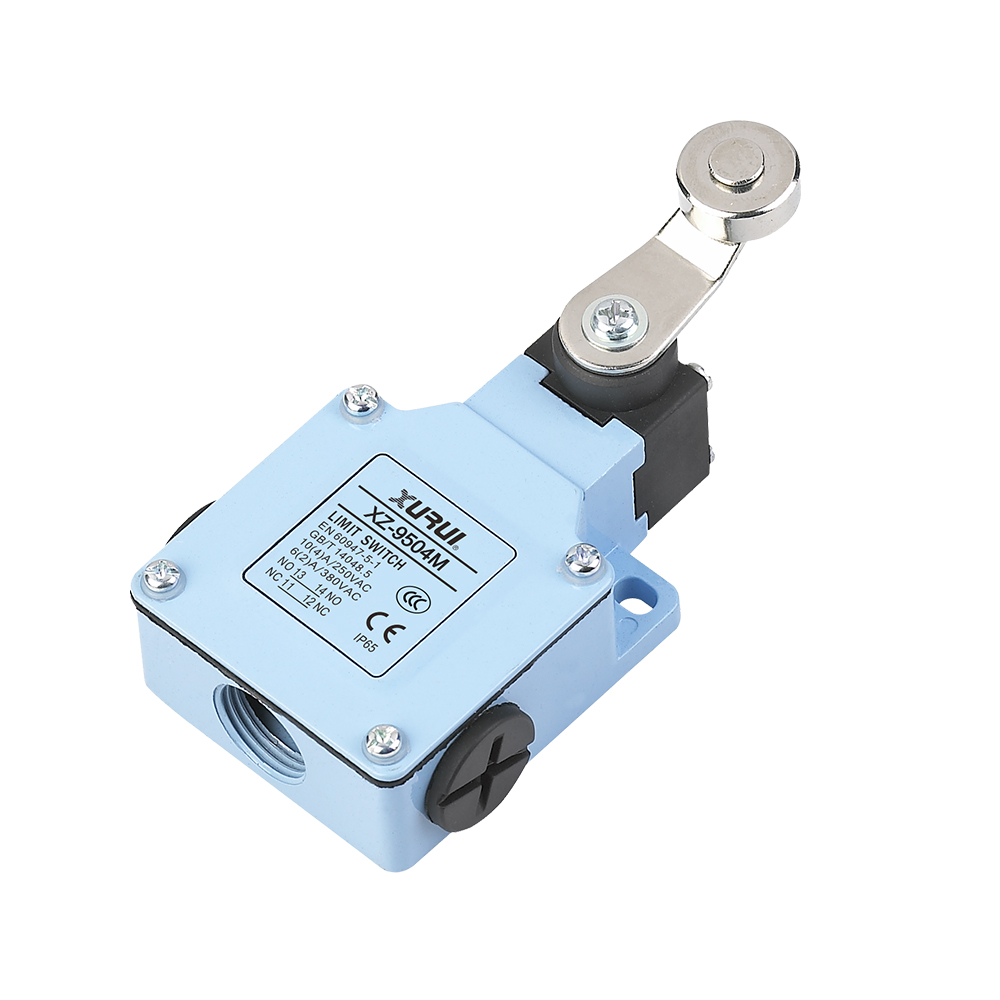

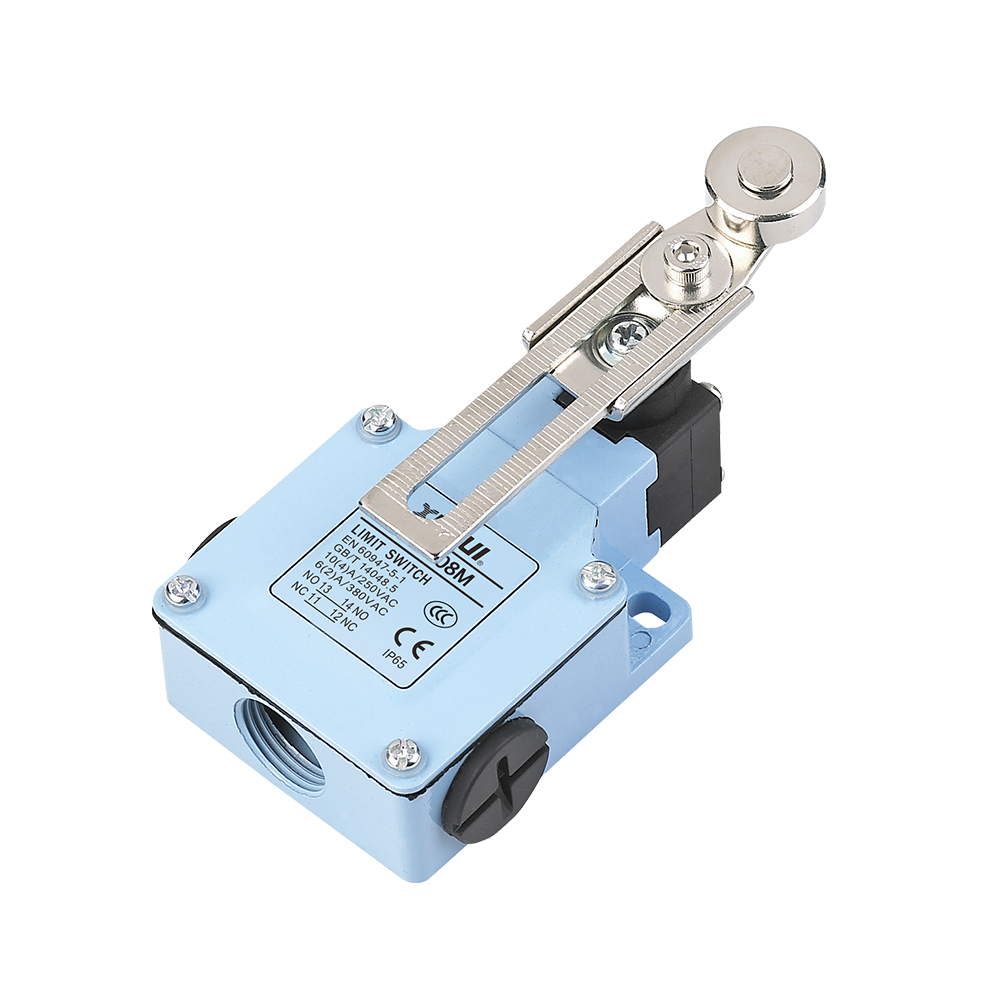

Flexible Actuator Options: Available with plunger, roller lever, and adjustable lever types to meet varied mechanical needs.

Wide Range of Applications: Ideal for automation systems, conveyor lines, machinery, and heavy equipment control.

描述

XZ-95 Limit Switch Overview

The XZ95 limit switch series features a metal housing, ensuring durability and reliability in industrial automation and mechanical applications. Its sealed structure provides excellent environmental protection, making it suitable for harsh conditions.

Specification

Item	Data
Rating load	10(4)A/250VAC, 6(2)A 380VAC
Operation speed	5mm–50cm/s
Operation frequency (Mechanical)	120 times/min
Operation frequency (Electrical)	30 times/min
Insulation resistance	100MΩ Above (DC500V)
Contact resistance	25mΩ initial value
Withstand voltage (Non-connection wire)	1000VAC
Withstand voltage (Every terminal)	1500VAC
Vibration (Misoperation)	10–55Hz Amplitude 1.5mm
Vibration (Durable)	1000m/s²
Impact (Misoperation)	300m/s²
Impact (Durable)	1000m/s²
Life (Electrical)	100,000 times above
Life (Mechanical)	1,000,000 times above
Protection degree	IP65
Operating temperature	-20℃~+60℃
Operating humidity	<85%
