Wholesale XZ-8 (10A) Limit Switch

Reinforced Metal Base: Built with a high-strength metal base for excellent impact resistance and long-term stability in heavy-duty applications.

Accurate & Low-Force Actuation: Designed for precise triggering with minimal operating force, enhancing control accuracy and production efficiency.

IP65 Rated Protection: Dustproof and waterproof construction ensures reliable performance in humid, dusty, and harsh industrial environments.

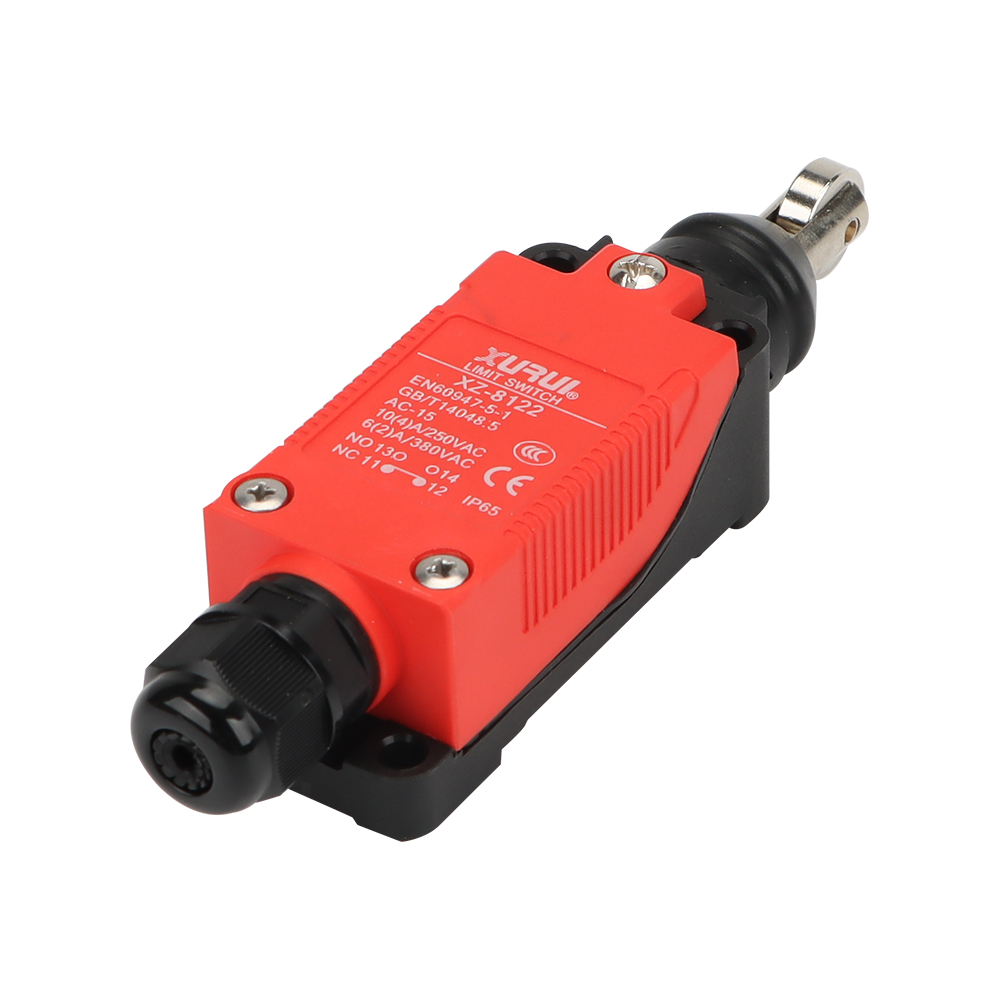

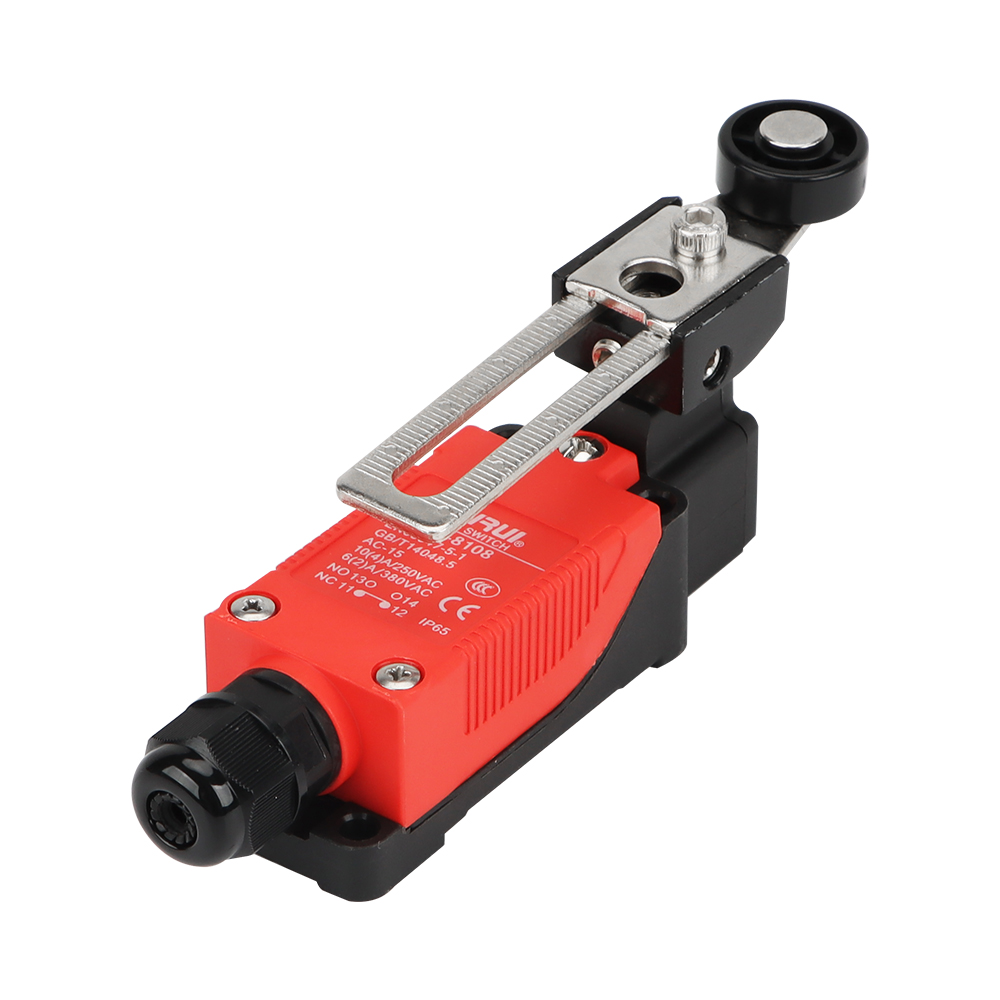

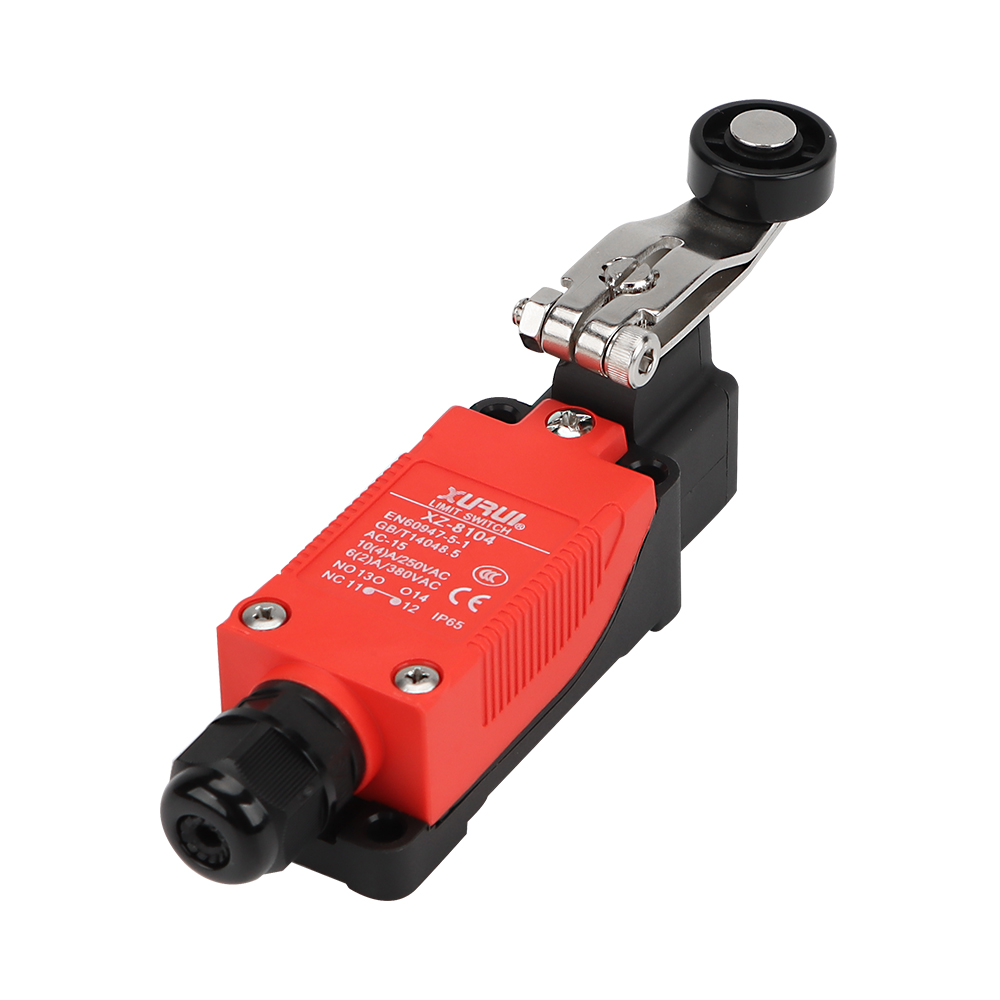

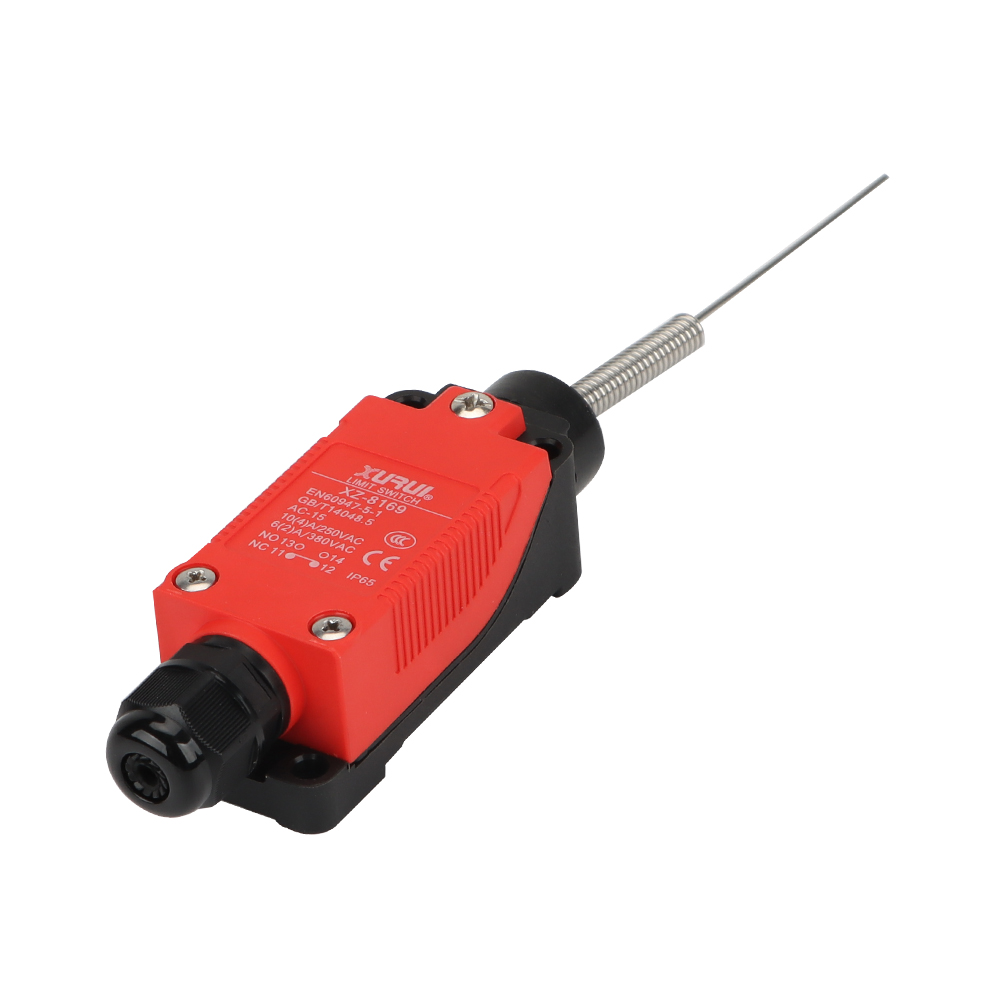

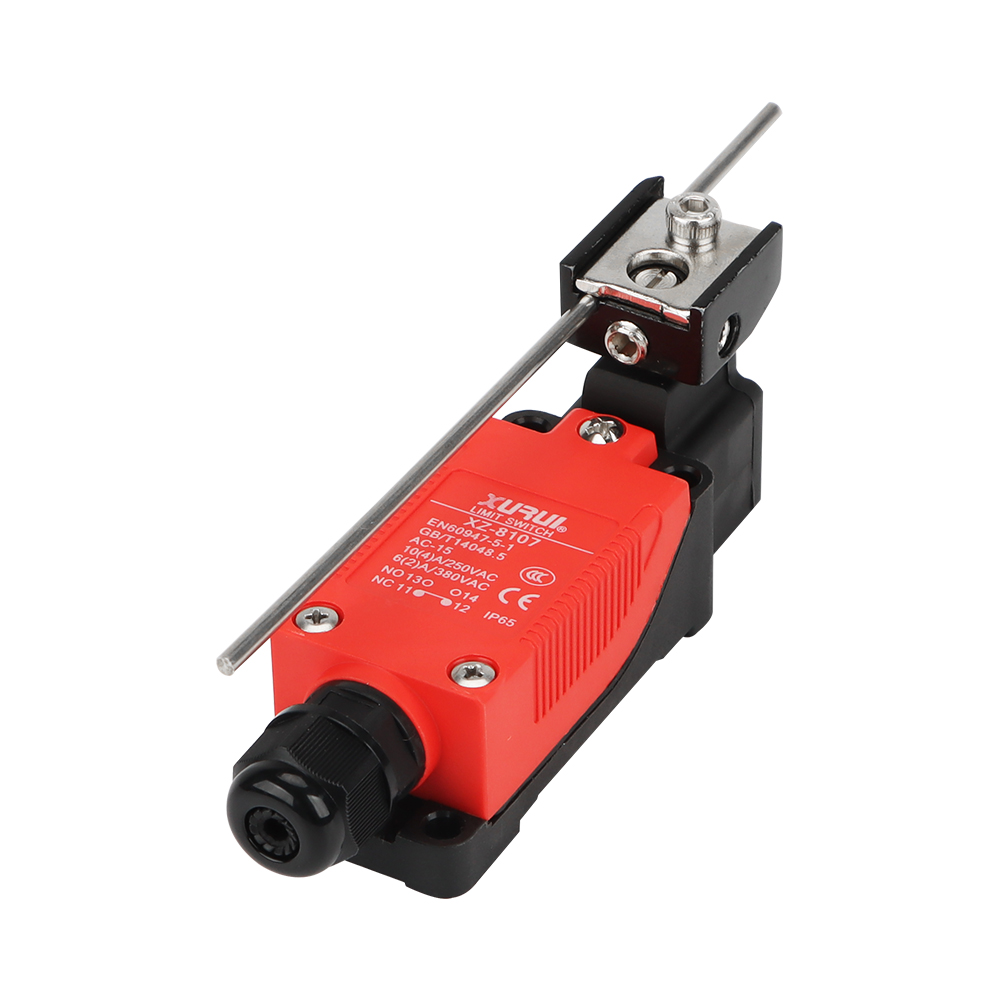

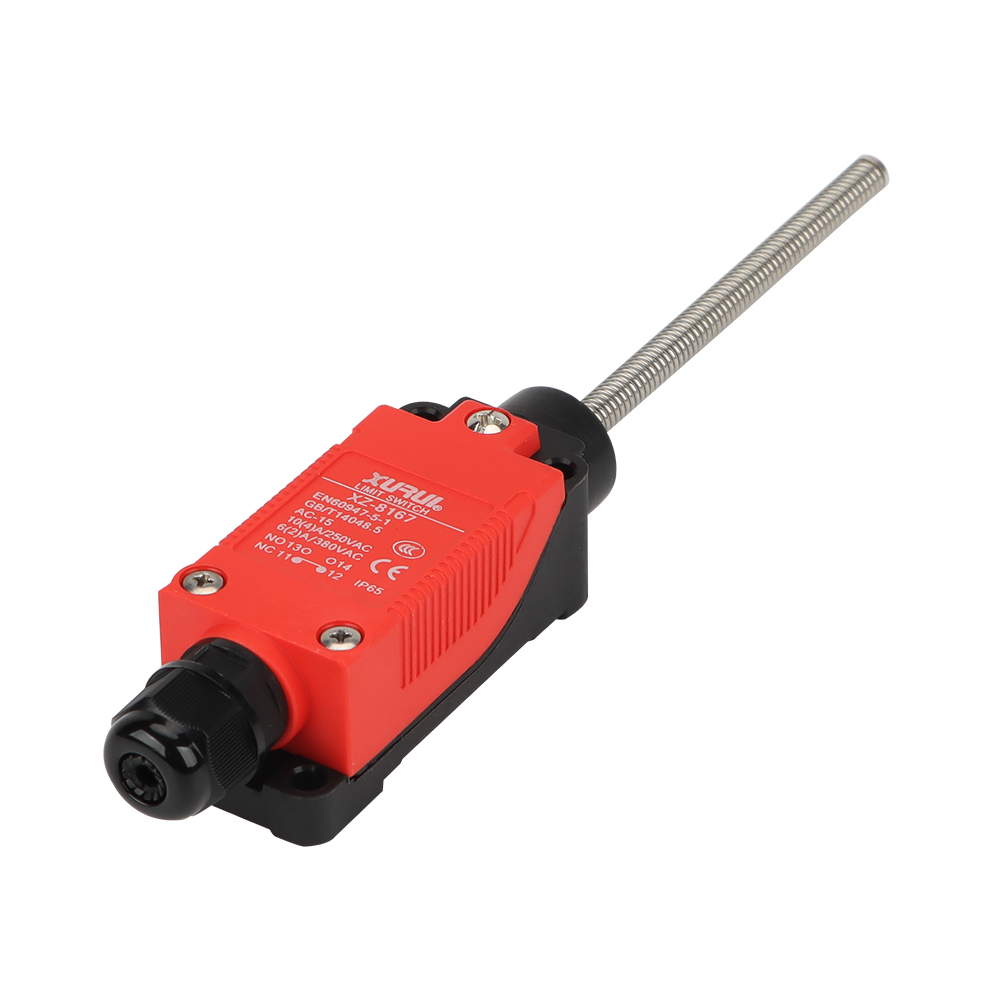

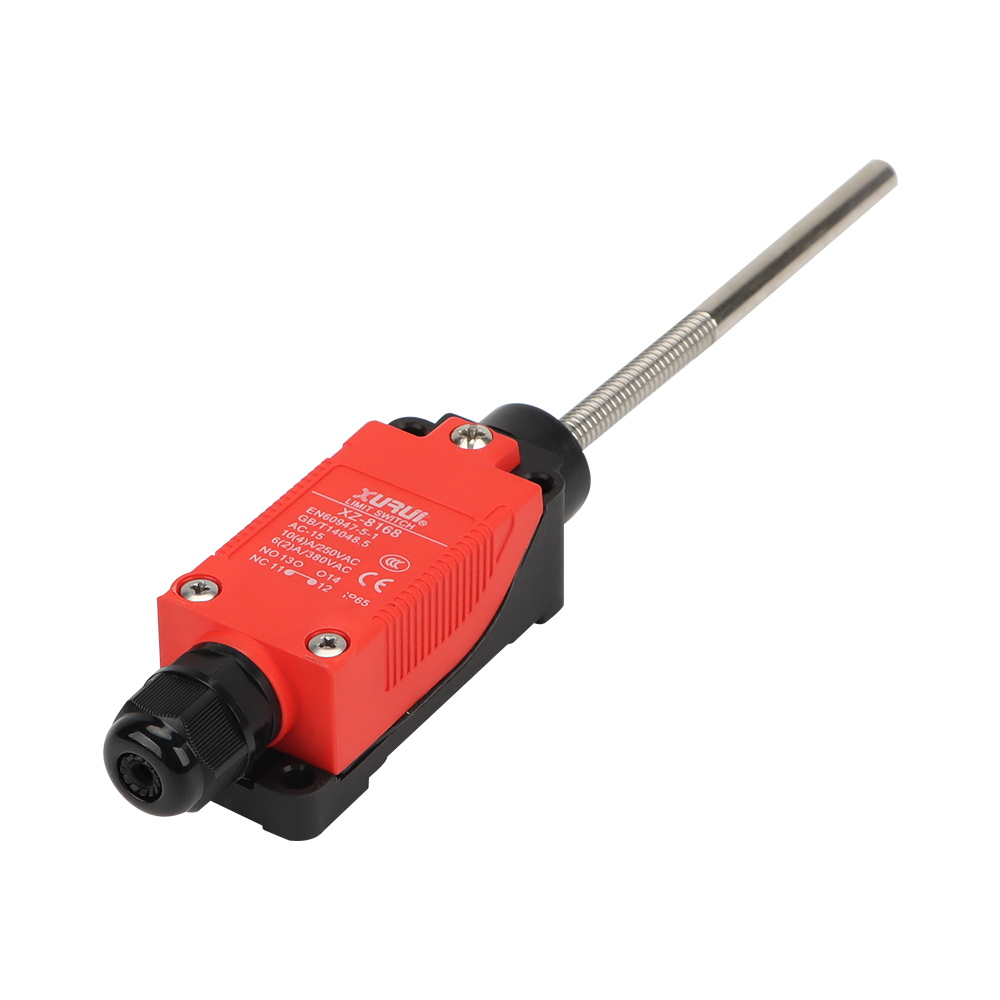

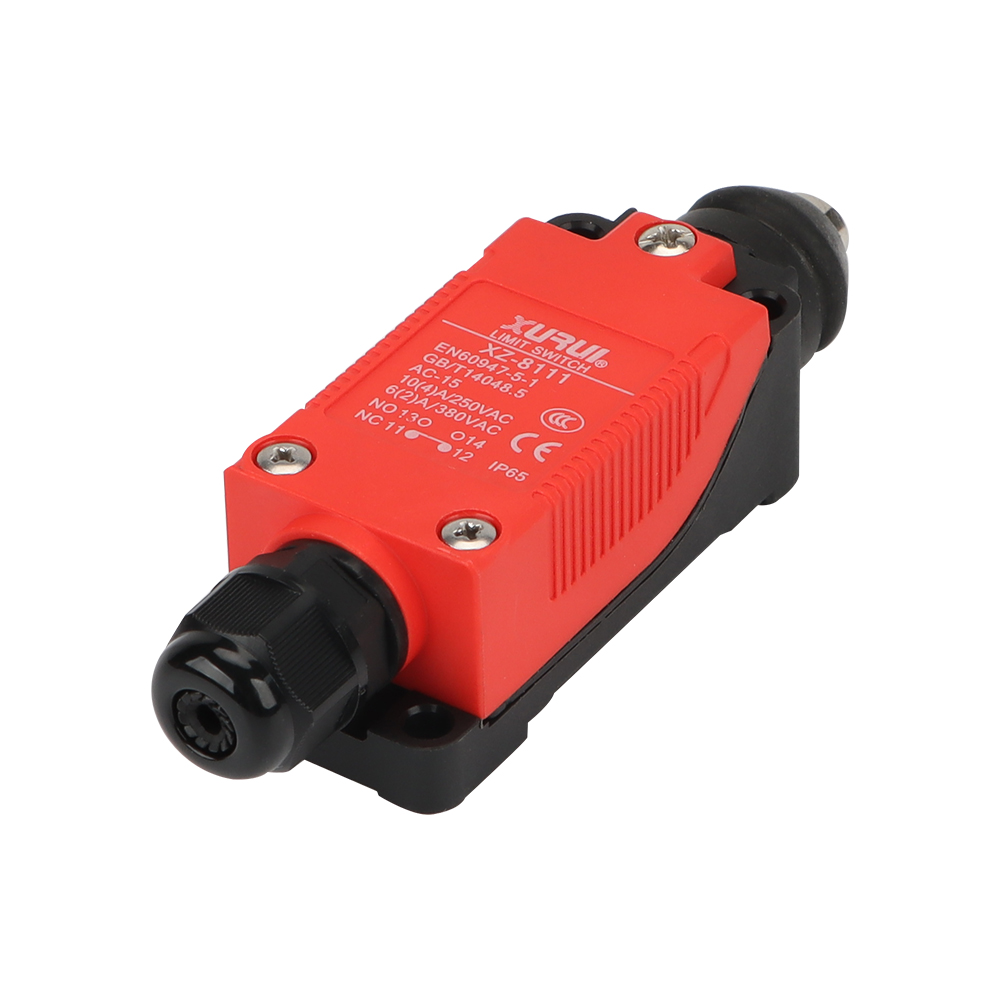

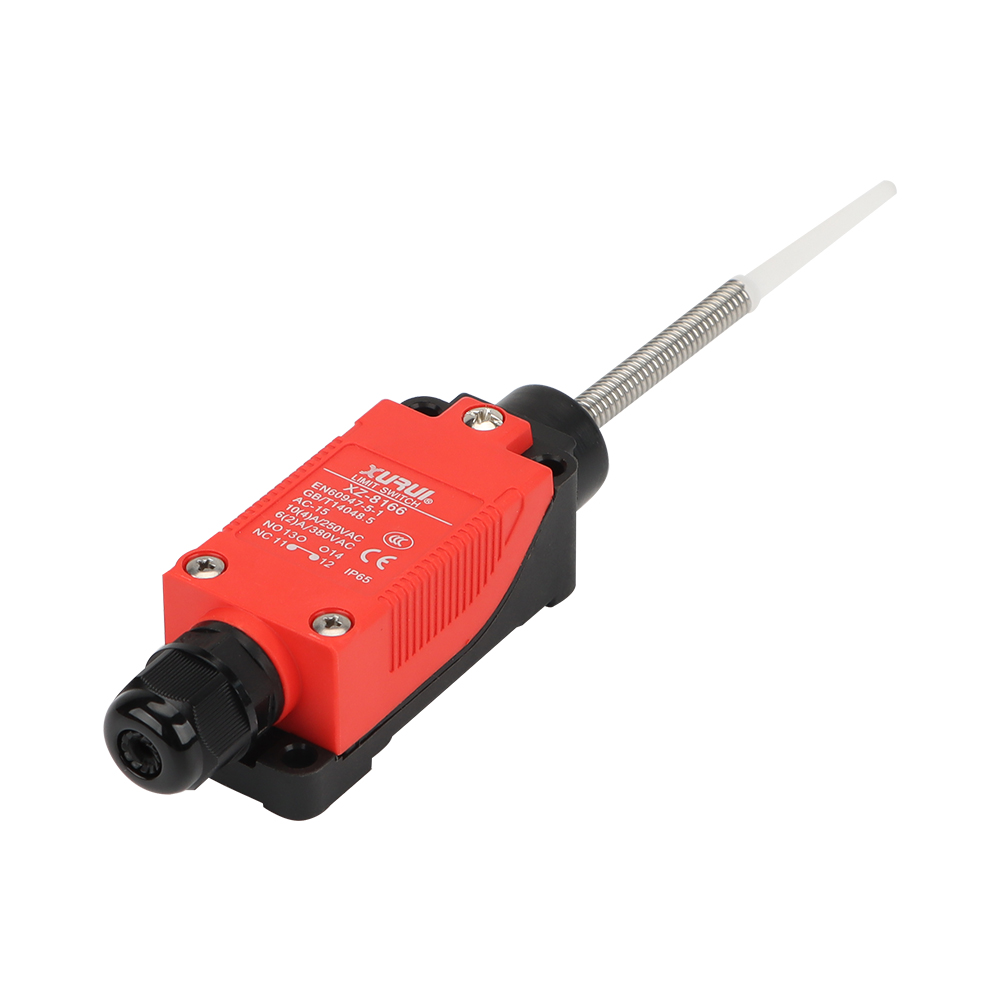

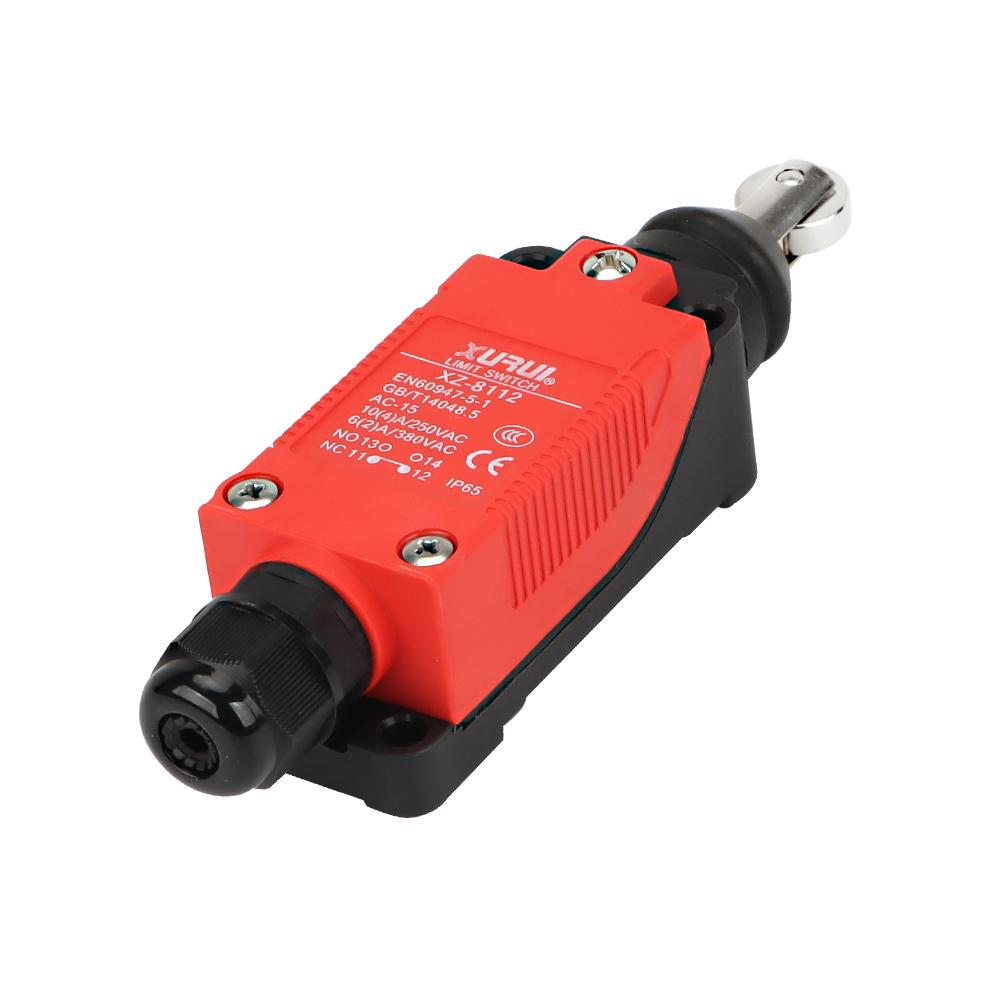

Versatile Drive Shaft Options: Available in roller arm, adjustable rod lever, push plunger, cross roller plunger, and spring rod types to meet diverse needs.

Long-Lasting Performance: Mechanical life exceeds 1,000,000 cycles and electrical life over 100,000 cycles; rated up to 10A/250VAC for high-power systems.

XZ-8 (10A) Overview

The XZ-8 series limit switch features a metal base structure with 10(4)A/250VAC, 6(2)A 380VAC electrical specifications, making it ideal for industrial automation and equipment safety control. With an IP65 protection rating, it operates stably in humid and dusty environments. The series offers multiple drive shaft types, including roller arm type, adjustable rod lever type, push plunger type, cross roller plunger type, and spring rod type, catering to various industrial applications.

Specification

Item	Data
Rating load	10(4)A/250VAC, 6(2)A/380VAC
Operation speed	5mm–50cm/s
Operation frequency (Mechanical)	120 times/min
Operation frequency (Electrical)	30 times/min
Insulation resistance	100MΩ Above (DC500V)
Contact resistance	25mΩ initial value
Withstand voltage (Non-connection wire)	1000VAC
Withstand voltage (Every terminal)	1500VAC
Vibration (Misoperation)	10–55Hz Amplitude 1.5mm
Impact (Durable)	1000m/s²
Impact (Misoperation)	300m/s²
Life (Electrical)	100,000 times above
Life (Mechanical)	1,000,000 times above
Protection degree	IP65
Operating temperature	-20~+60℃
Operating humidity	<85%

Application Scenarios

Industrial Automation: Used for automation control in production lines, such as robotic arms, conveyors, and packaging machines.

Machine Tool Processing Equipment: Ideal for CNC machines, punch presses, and cutting equipment, ensuring precise stroke control.

Smart Warehousing & Logistics Systems: Used in AGV carts, automated storage systems, and logistics conveyors for accurate position detection.

Elevators & Lifting Equipment: Monitors elevator door status and lift position to ensure safe operation.

Automotive Manufacturing & Testing Equipment: Used in automobile assembly lines and vehicle testing equipment to ensure stable automated production.

XZ-8 (10A) Series Limit Switch

XZ-8 (10A) Series Limit Switch
