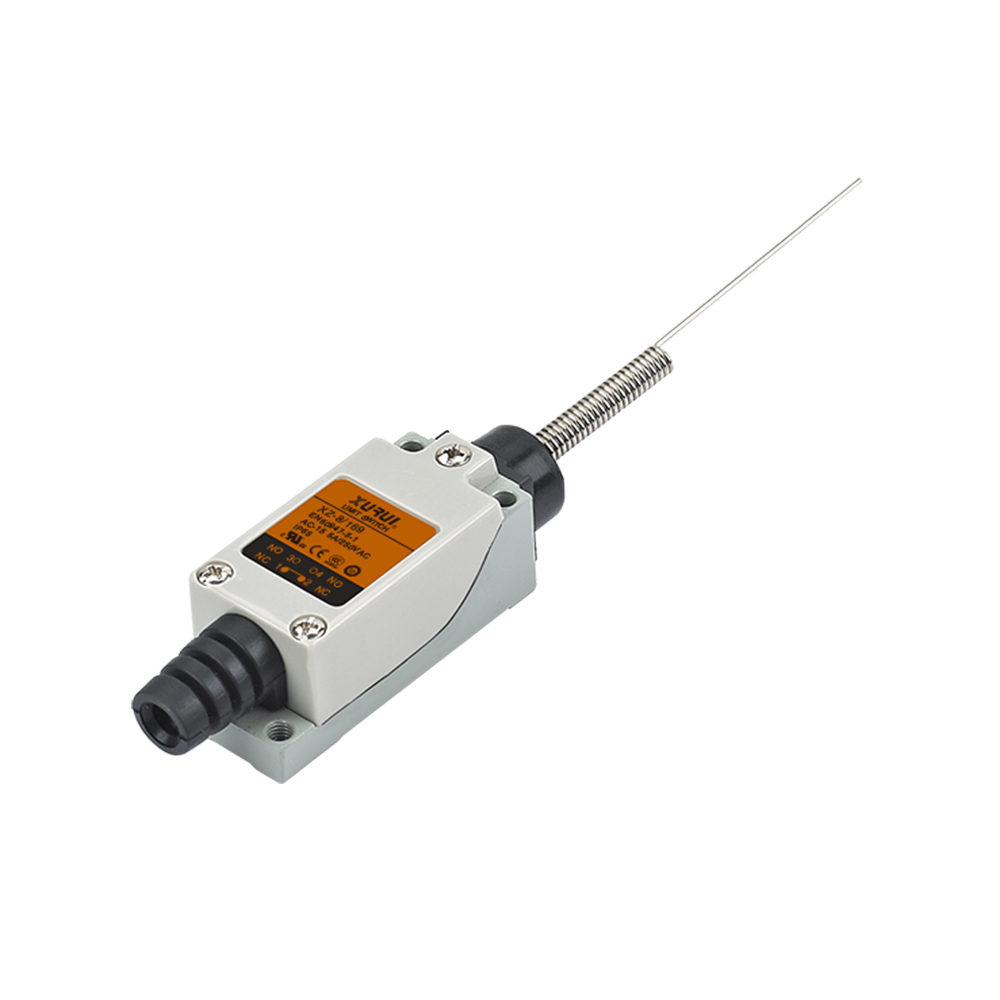

XZ-8 (5A) Series Limit Switch

5A/250VAC Rated Current: Ideal for limit and control applications in machinery and automation systems.

Durable Zinc Alloy Housing: Die-cast construction provides excellent strength and resistance to harsh environments.

Reliable Dual-Reed Design: Features a dual-channel switch with dual reed contacts for enhanced operational reliability.

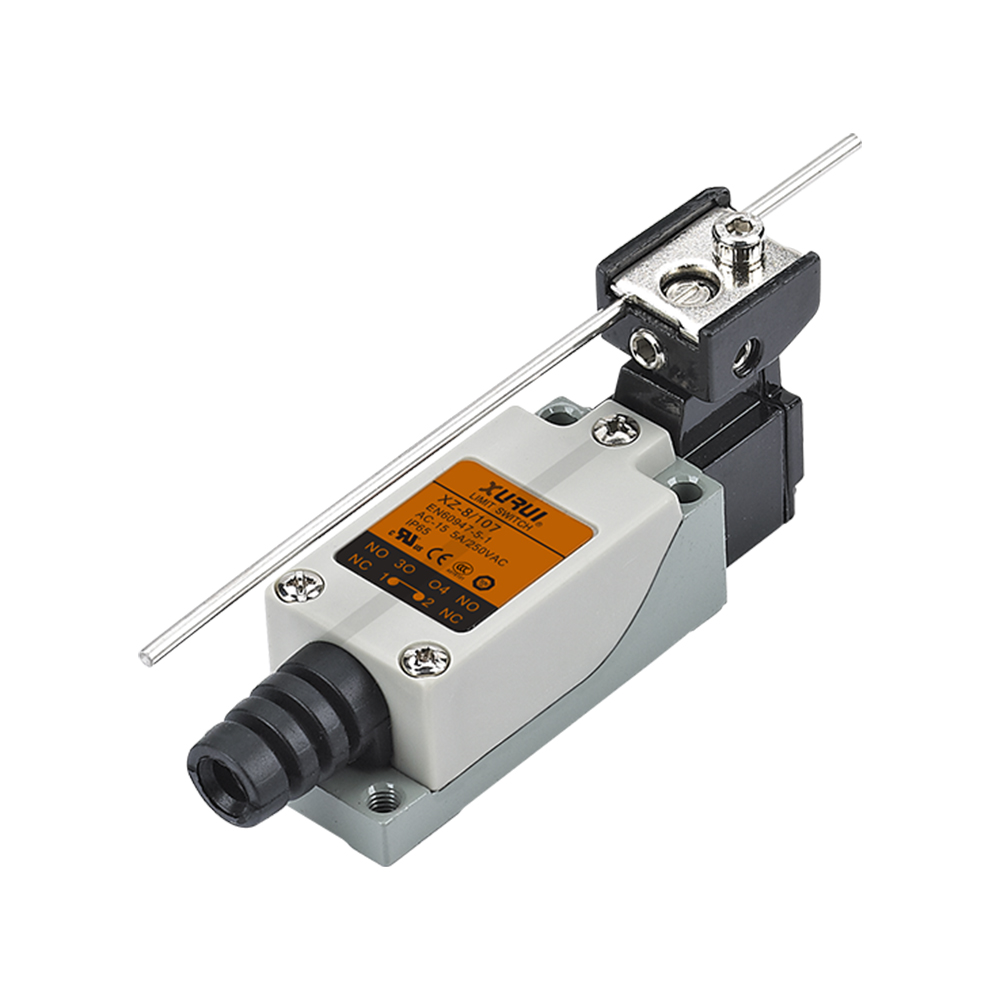

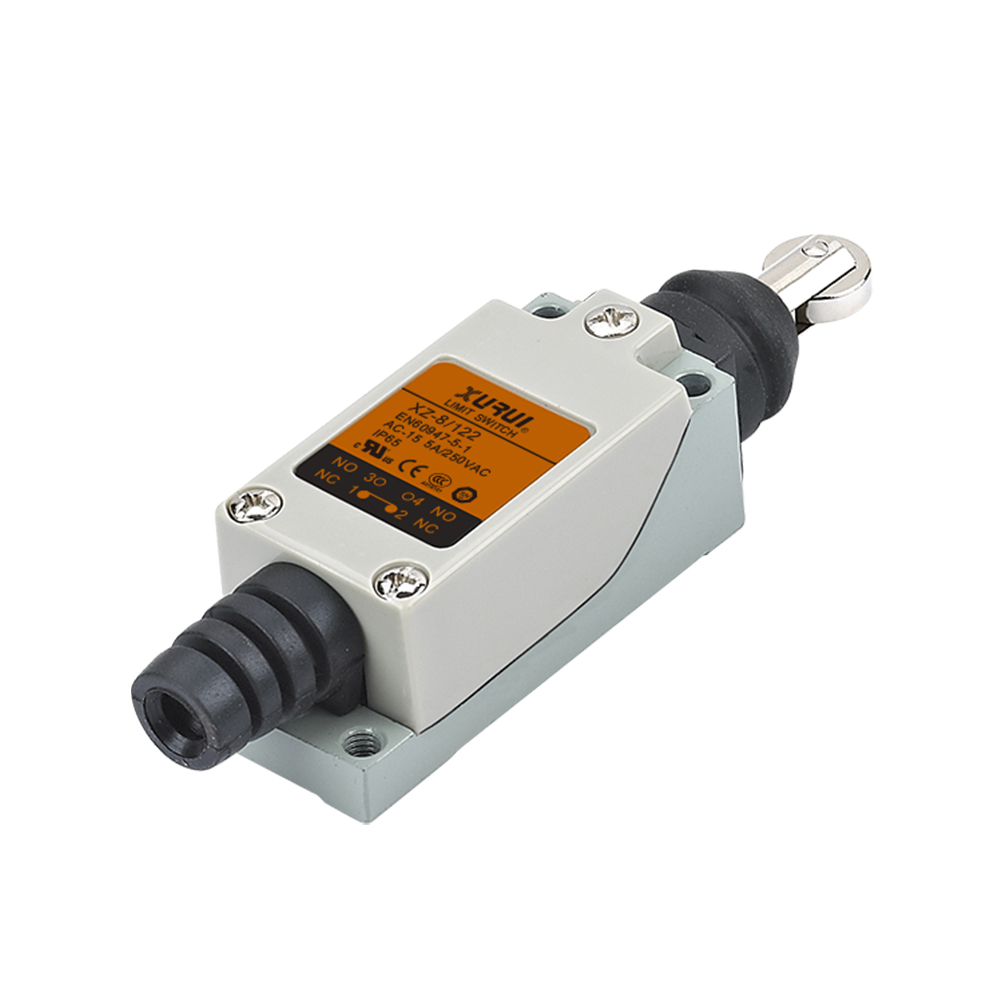

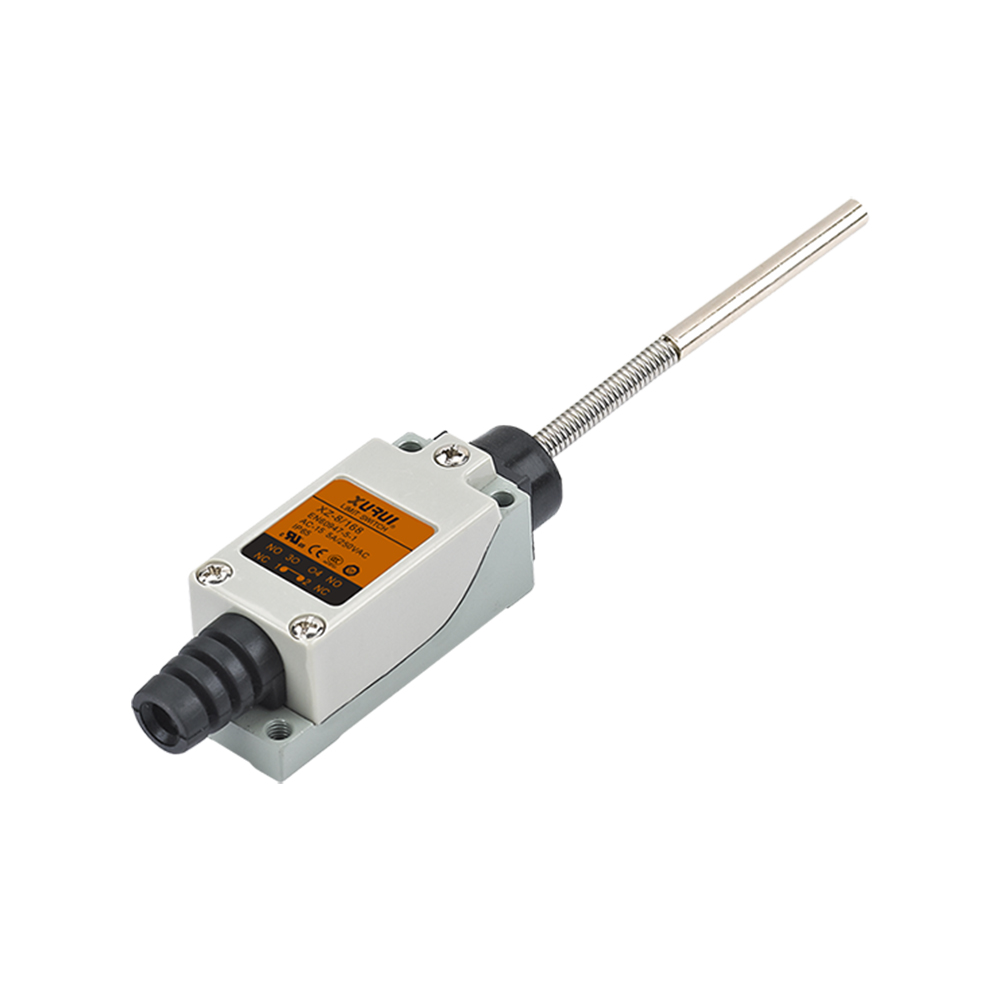

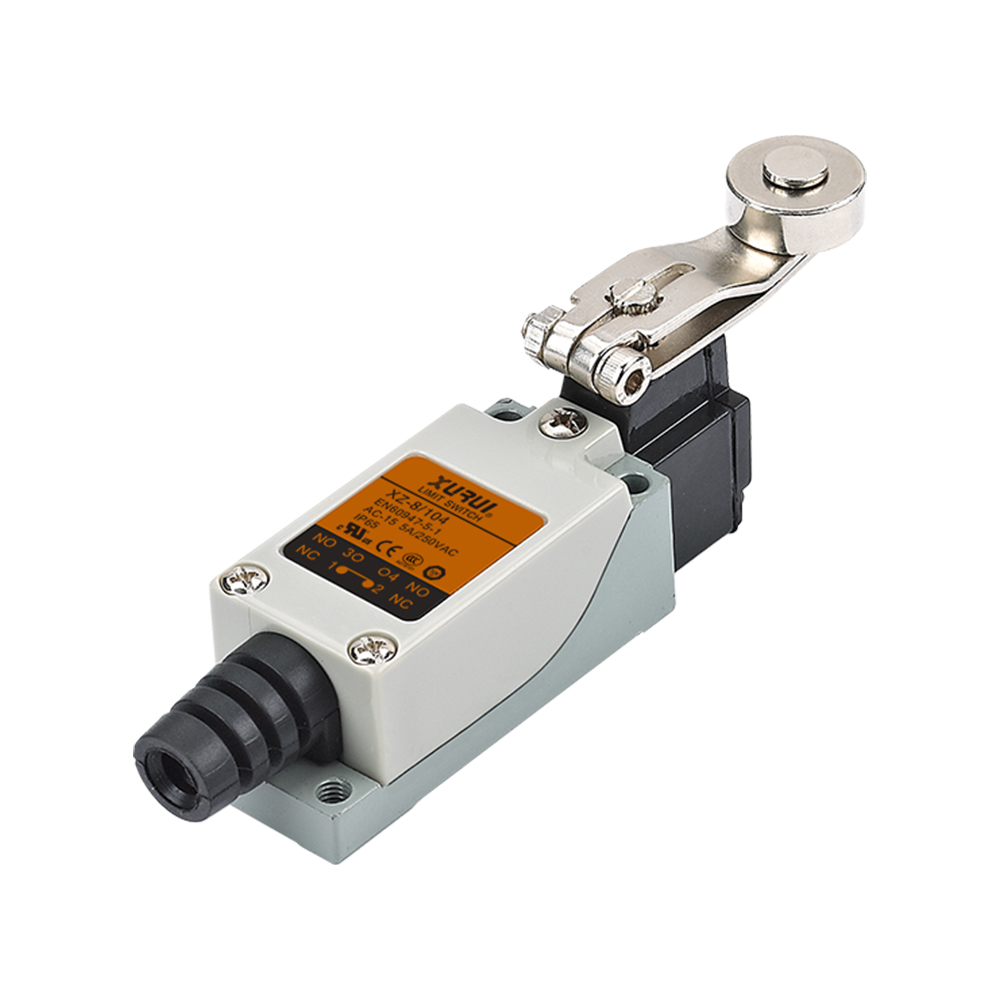

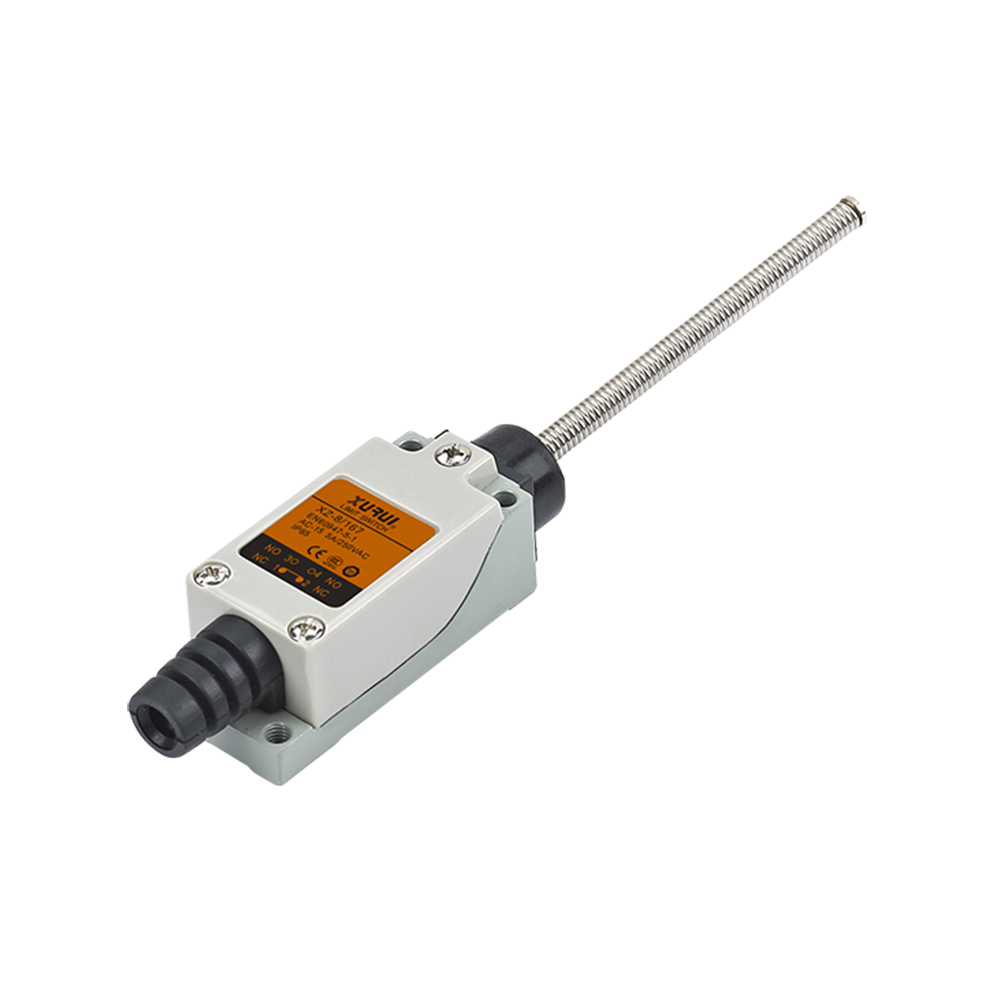

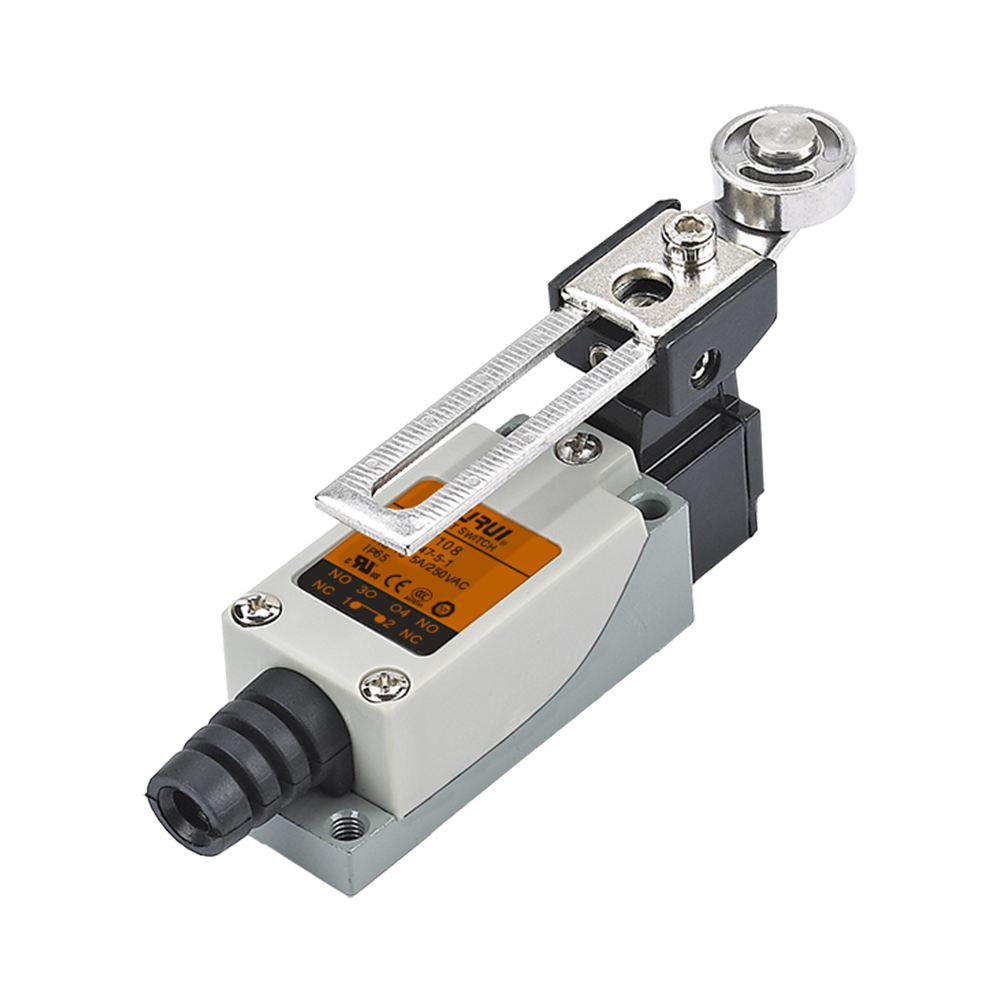

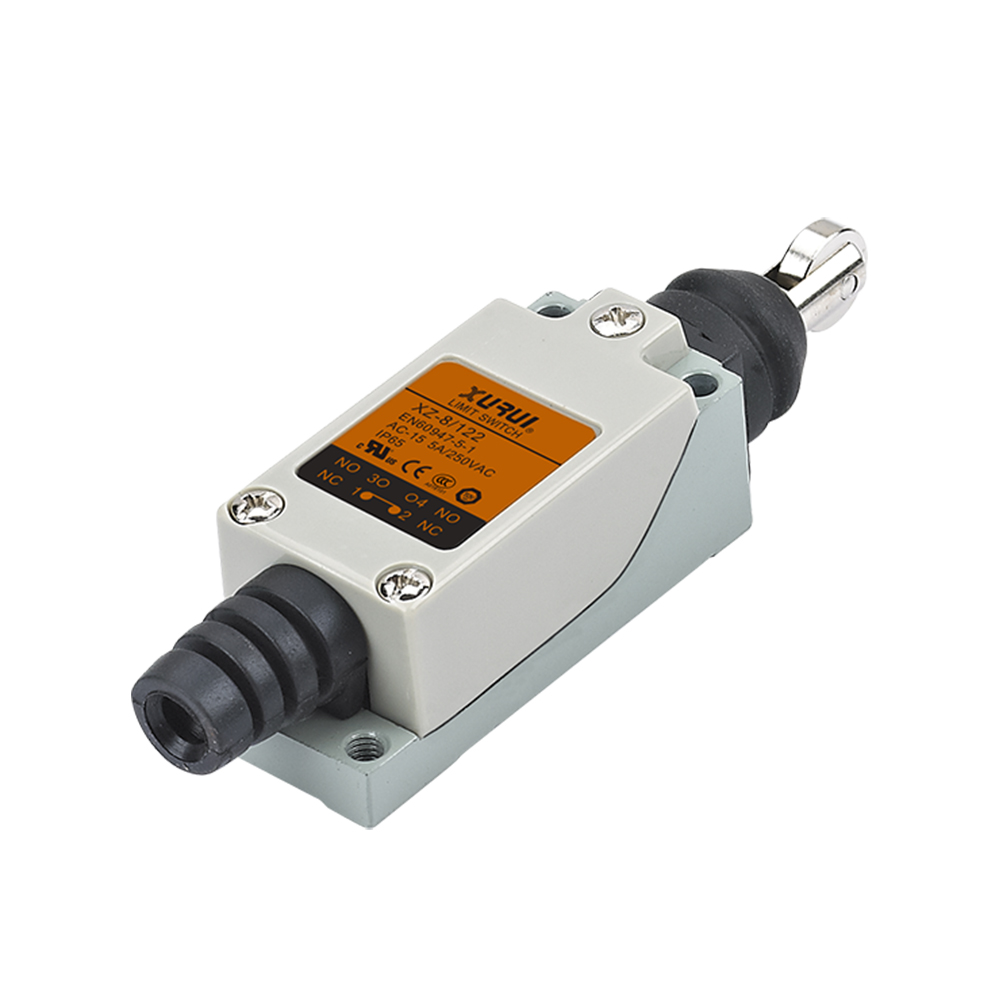

Multiple Actuator Options: Choose from roller, lever, or button types to suit various mechanical setups.

Compact & Easy to Install: Side-mounting design ensures quick and space-saving installation in tight spaces.

Certified for Global Markets: Meets CE, TUV, UL, CCC, and RoHS standards for international safety compliance.

描述

XZ-8 (5A) Limit Switch Overview

The XZ-8 Series Limit Switch is a high-strength, water- and oil-resistant industrial switch with a compact design. It is widely used in machinery, automation systems, conveyor systems, and electrical equipment.

Specification

Item	Data
Rating load	5A/250VAC
Operation speed	5mm–50cm/s
Operation frequency (Mechanical)	120 times/min
Operation frequency (Electrical)	30 times/min
Insulation resistance	100MΩ Above (DC500V)
Contact resistance	25mΩ initial value
Withstand voltage (Non-connection wire)	1000VAC
Withstand voltage (Every terminal)	1500VAC
Vibration (Misoperation)	10–55Hz Amplitude 1.5mm
Impact (Durable)	1000m/s²
Impact (Misoperation)	300m/s²
Life (Electrical)	100,000 times above
Life (Mechanical)	1,000,000 times above
Protection degree	IP65
Operating temperature	-20~+60℃
Operating humidity	<85%

Application Scenarios

The XZ-8 limit switch is extensively used in industrial equipment, automation control, and electrical systems to provide precise control and exceptional durability:

Industrial Equipment: Machine tool limit switches, robotic arm positioning, conveyor belt detection

Automation Systems: Automated parking systems, PLC control systems, robotics, smart factory setups

Electrical Systems: Electrical cabinets, motor control, relay systems

Conveyor Systems: End-of-line limit switches, automated logistics systems

Special Applications: Woodworking machinery, automotive manufacturing, mining equipment, food processing machinery

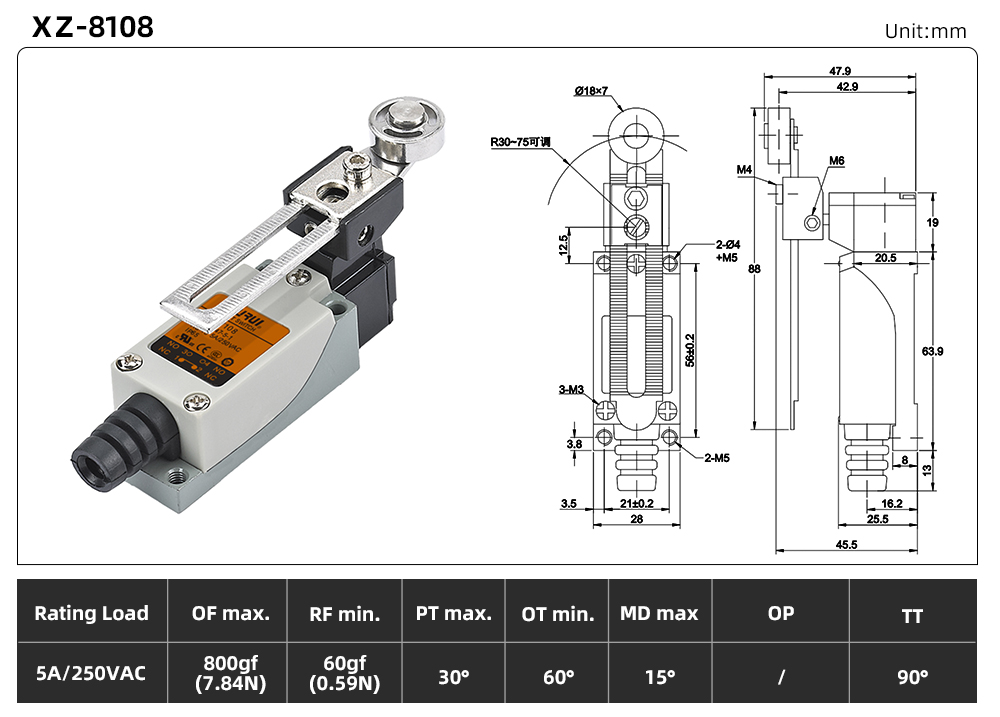

Product Selection
