Rugged Metal Housing: Offers superior impact and wear resistance compared to plastic models—ideal for tough environments.

High-Precision Switching: Features a sensitive mechanical micro switch for stable, accurate, and reliable performance.

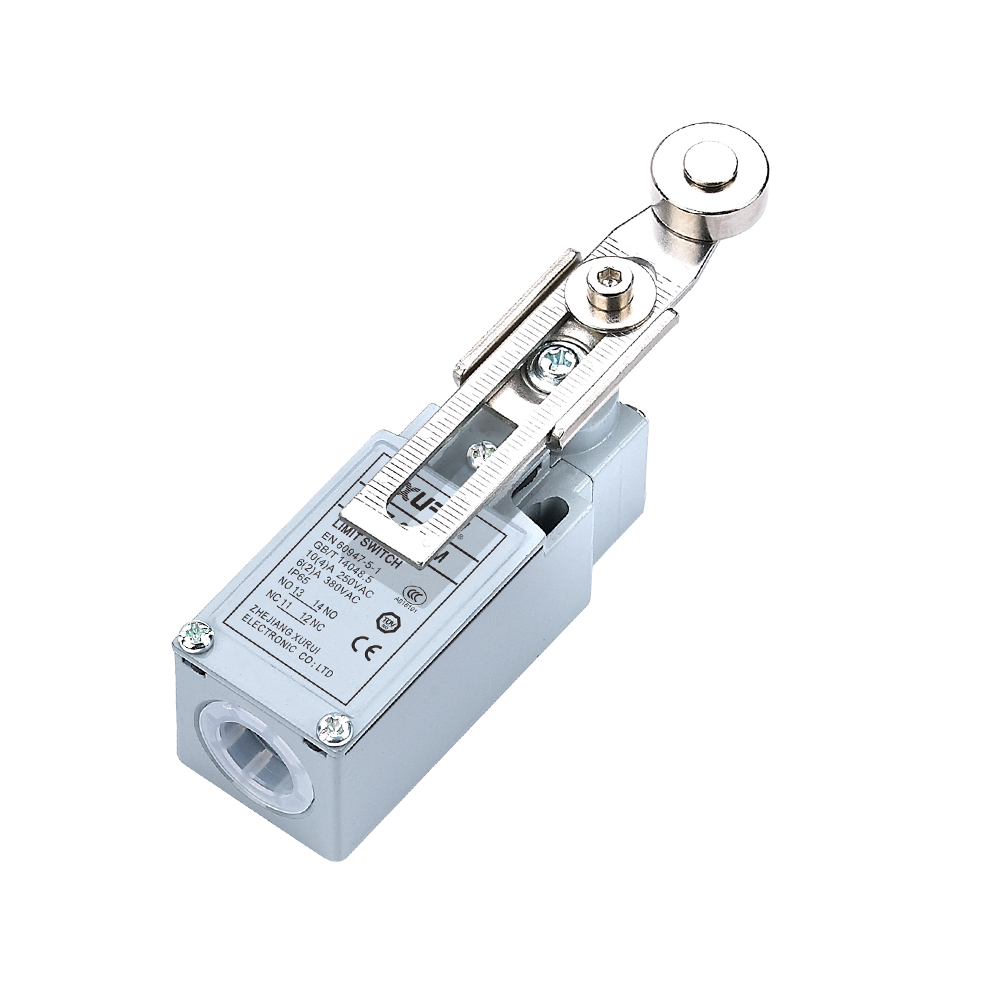

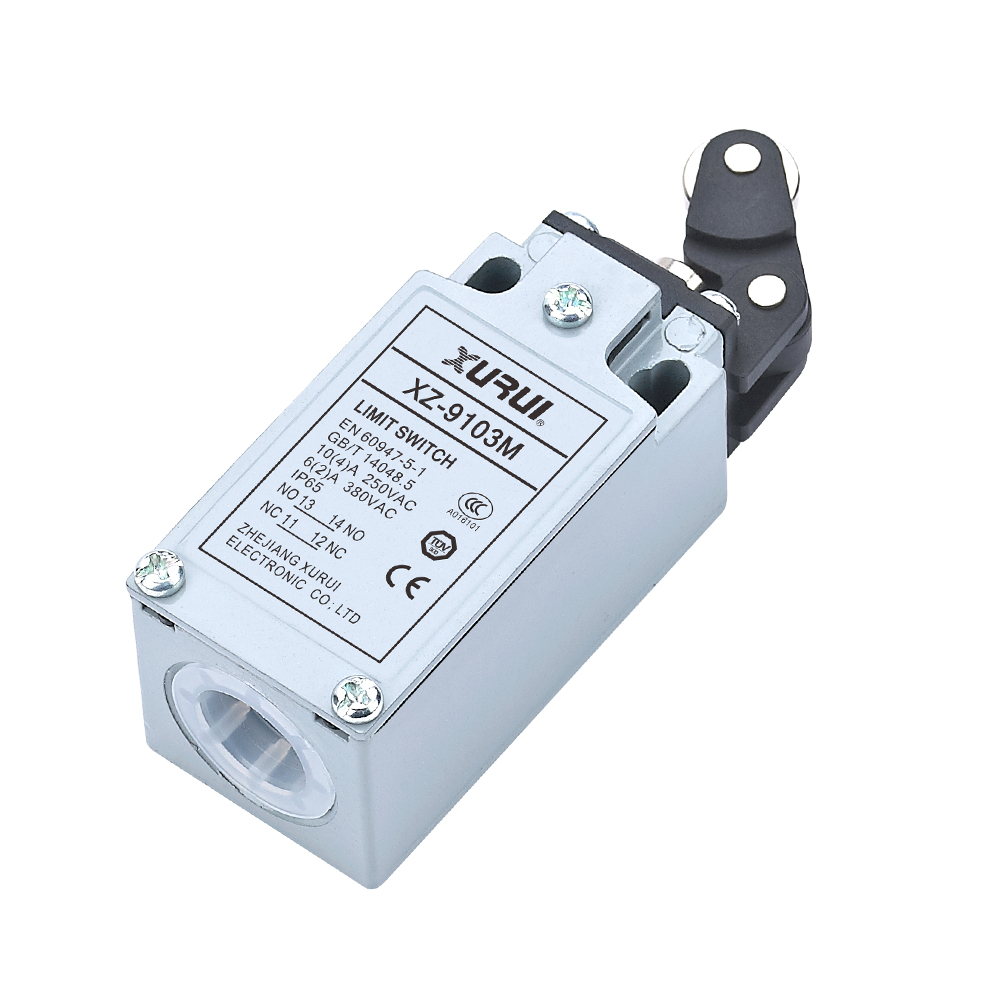

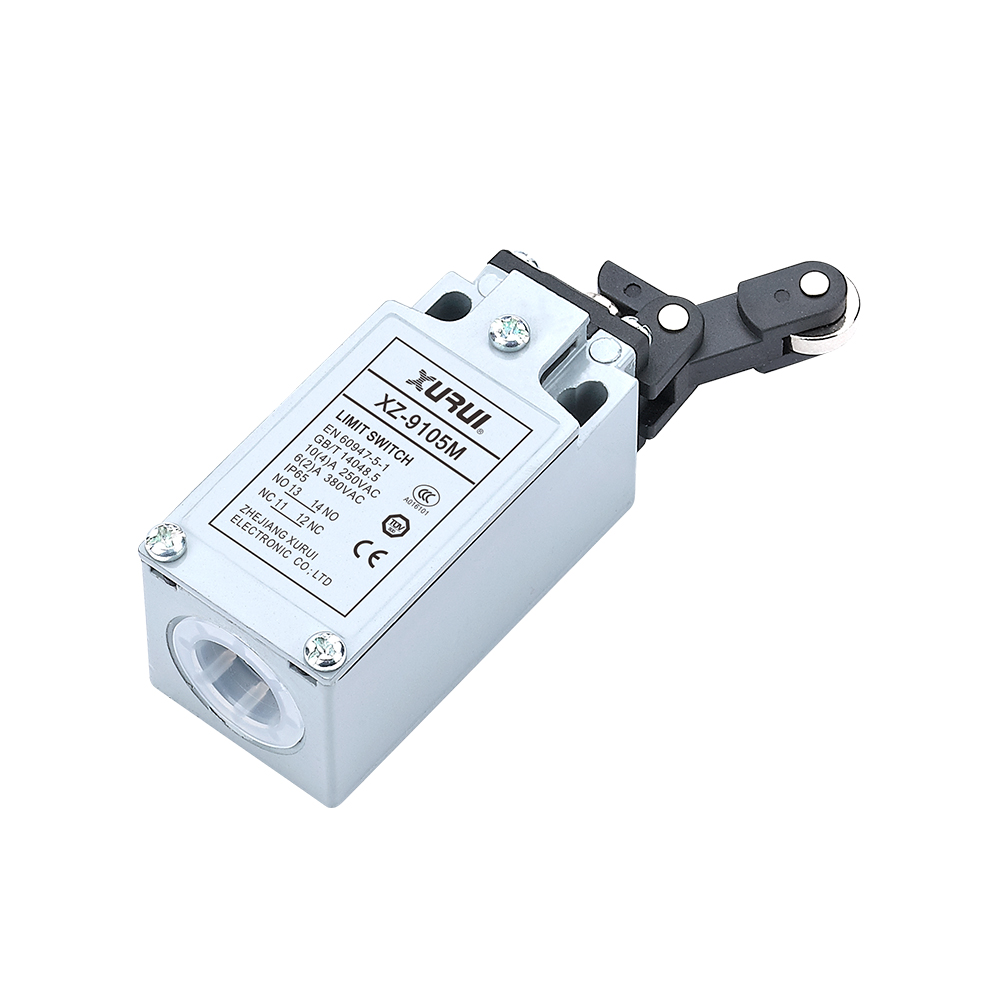

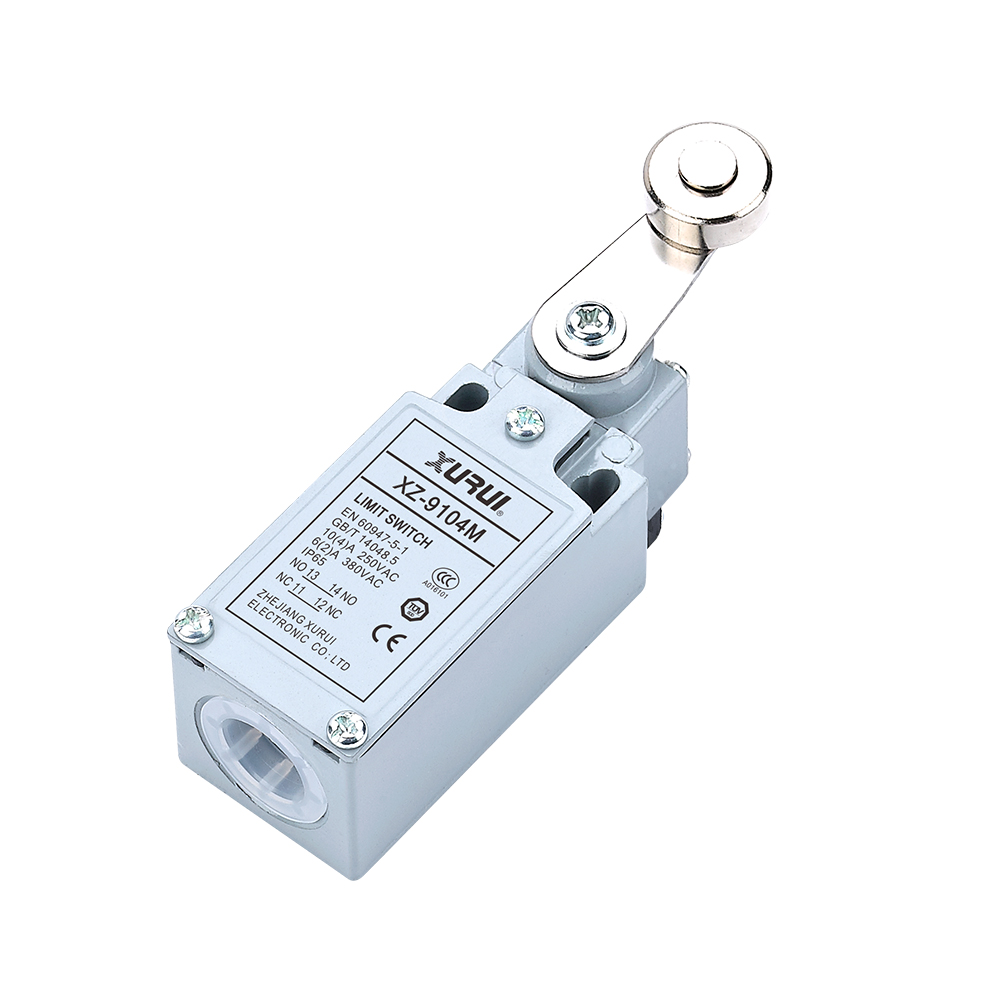

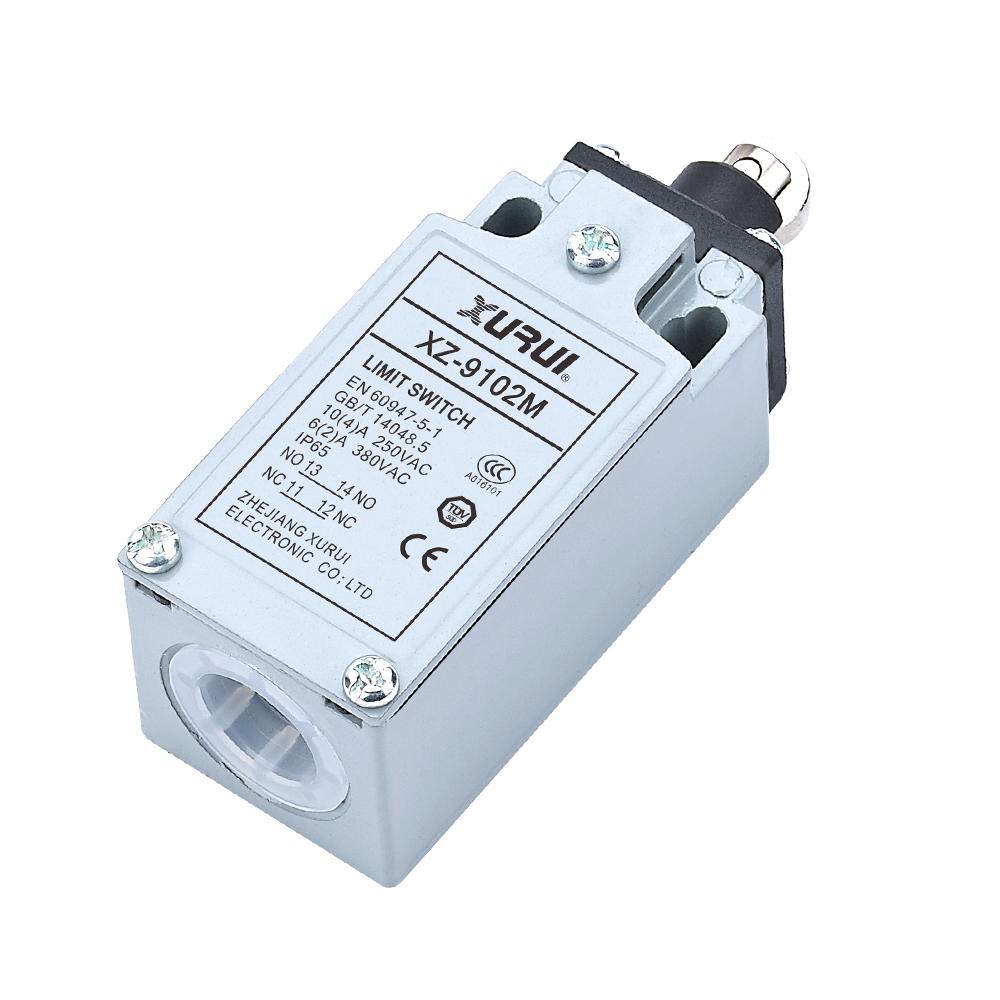

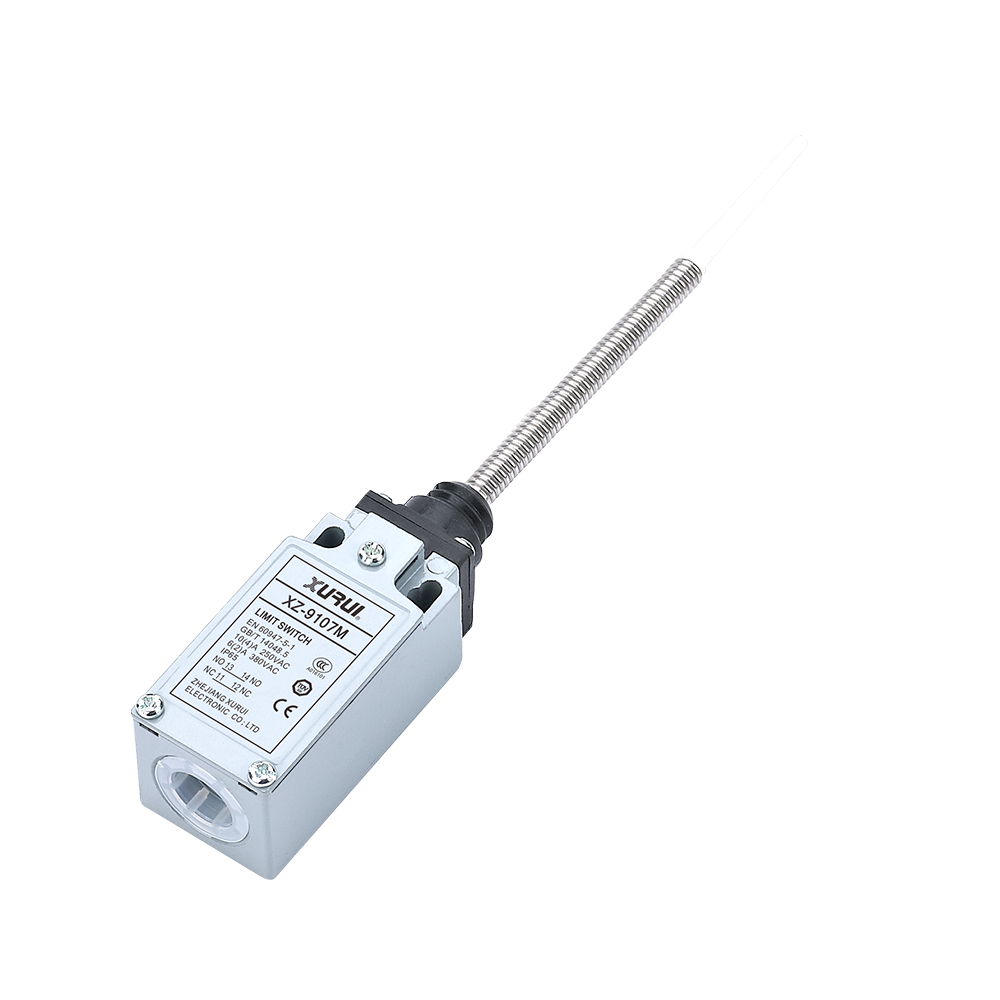

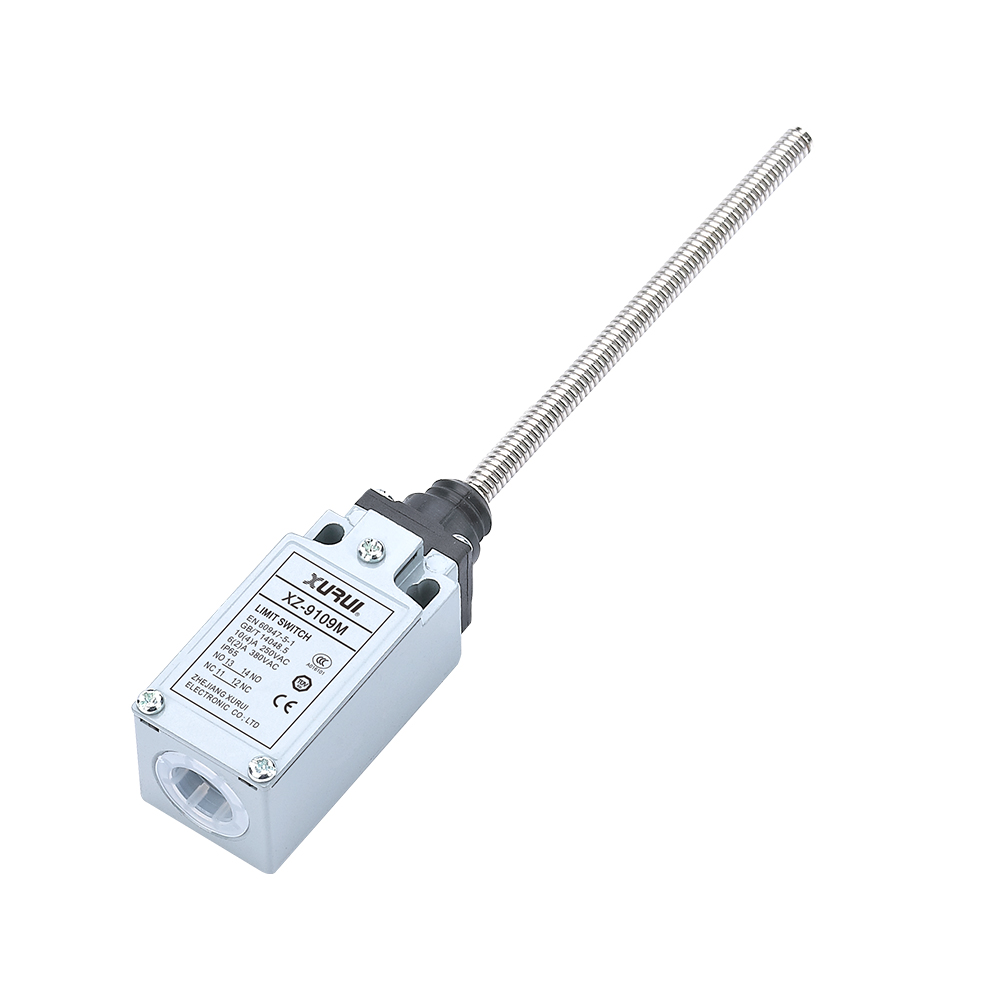

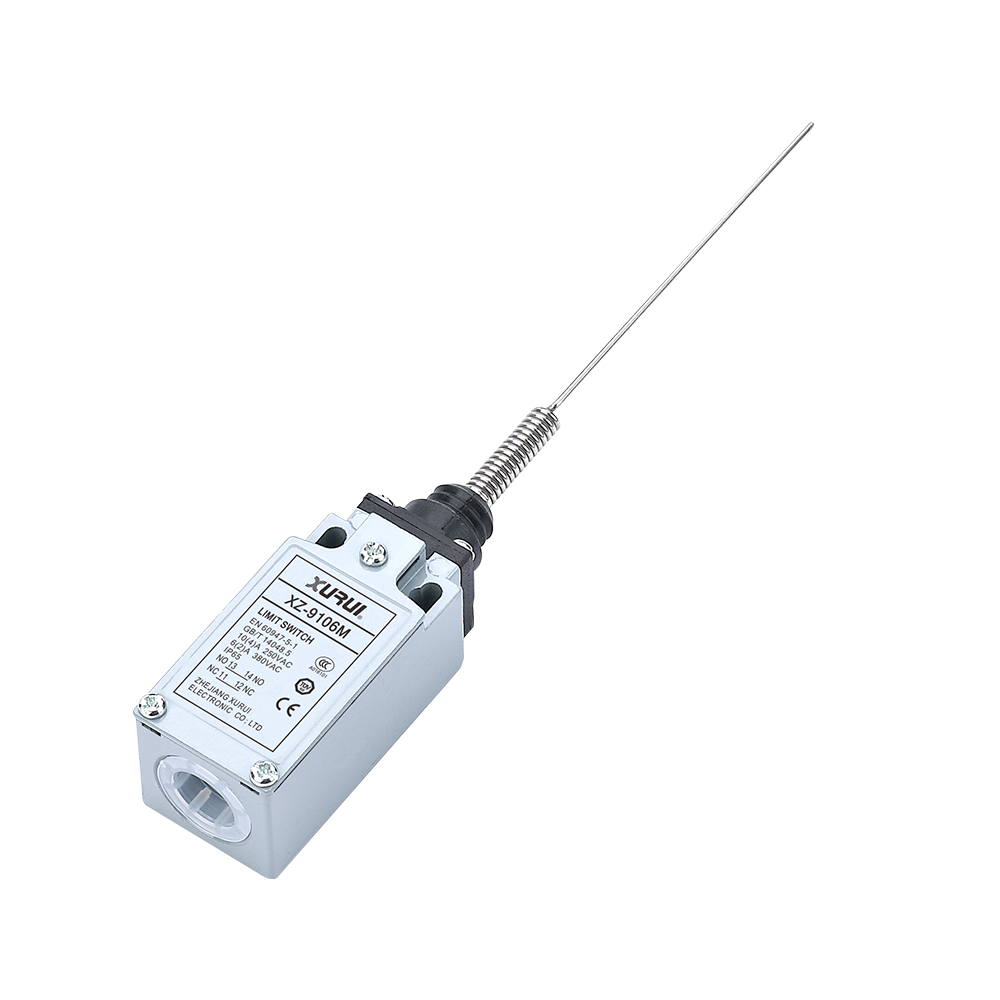

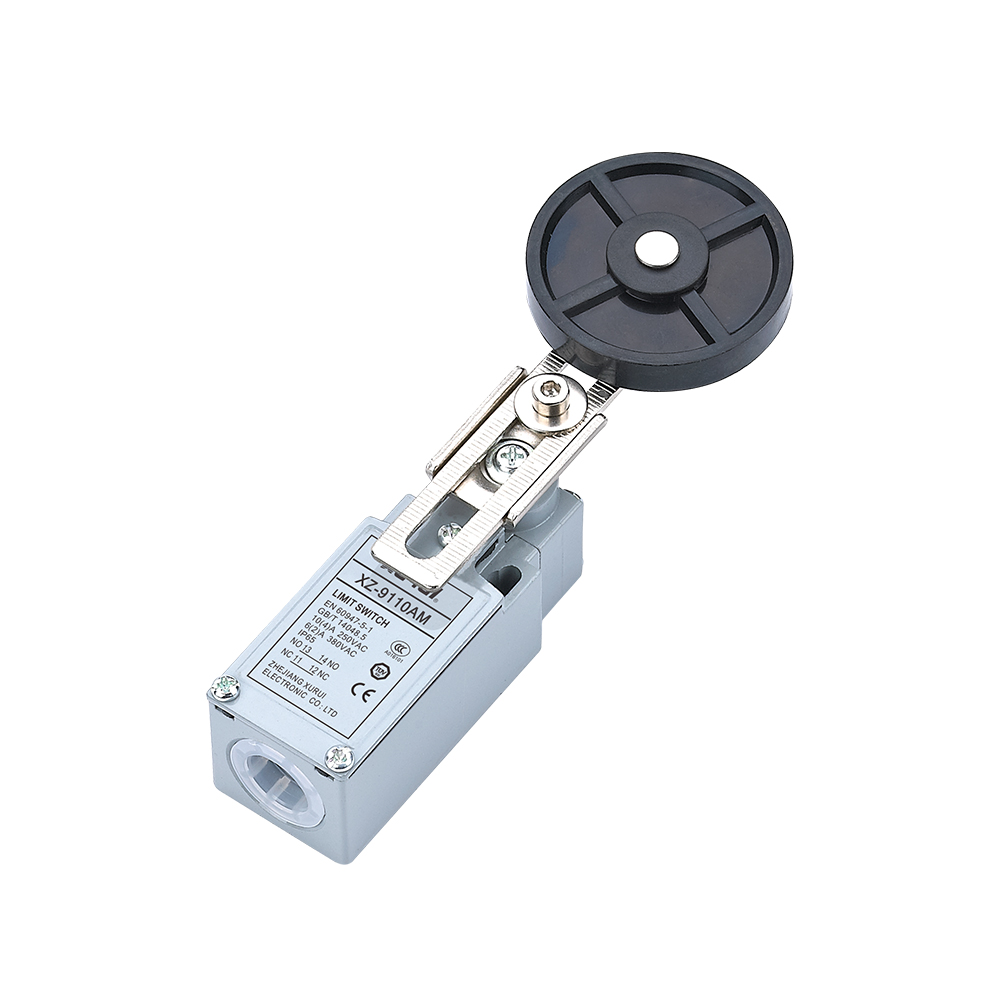

Versatile Actuator Options: Available in roller lever, spring rod, and plunger styles to fit various application needs.

Long Mechanical & Electrical Life: Over 1,000,000 mechanical cycles and 100,000 electrical cycles for long-lasting use.

IP65 Protection Rating: Waterproof and dustproof design ensures consistent performance in outdoor and high-humidity environments.

获取免费报价
描述

XZ-9M Overview

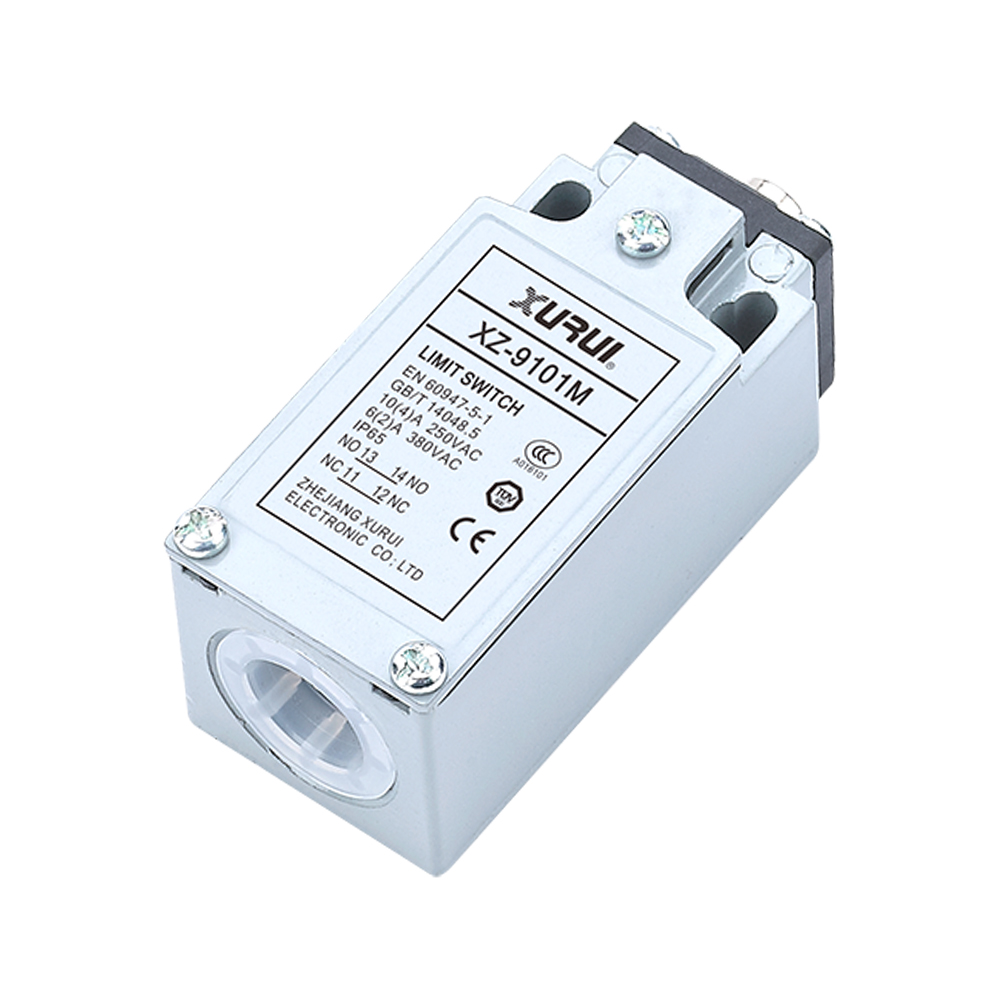

The XZ-9M Series Limit Switch is the metal version of XZ9, designed to ensure durability and reliability under harsh conditions. Its high-strength construction makes it ideal for industrial automation, heavy machinery, and outdoor equipment, offering superior impact resistance, wear resistance, and environmental adaptability.

Specification

Item Data
Rating Load 10A(4A)/250VAC, 6(2)A 380VAC
Operation Speed 5mm~0.5m/s
Operation Frequency (Mechanical) 120times/min
Operation Frequency (Electrical) 30times/min
Insulation Resistance ≥100MΩ (DC 500V)
Contact Resistance ≤25mΩ (Initial Value)
Withstand Voltage (Non-connection wire) 1000VAC
Withstand Voltage (Every terminal) 1500VAC
Vibration (Misoperation) 10~55Hz Amplitude 1.5mm
Impact (Durable) 1000m/s²
Impact (Misoperation) 300m/s²
Life (Electrical) ≥1,000,000 cycles
Life (Mechanical) ≥100,000 cycles
Protection Degree IP65
Operating Temperature -10~+70℃
Operating Humidity <85%



Application Scenarios

The XZ-9M series is designed for high-load, harsh environments, and precise control, making it widely used in machinery, power systems, and outdoor equipment:

Industrial Automation: Robotics, automated production lines, smart control systems

Heavy Machinery: Excavators, cranes, mining equipment

Power Equipment: Distribution cabinets, switchgear, relay protection systems

Outdoor Facilities: Wind power generation, port machinery, railway signaling equipment

Automotive Manufacturing: Automated assembly line control

High-Temperature & High-Humidity Environments: Food processing, chemical plants, marine equipment

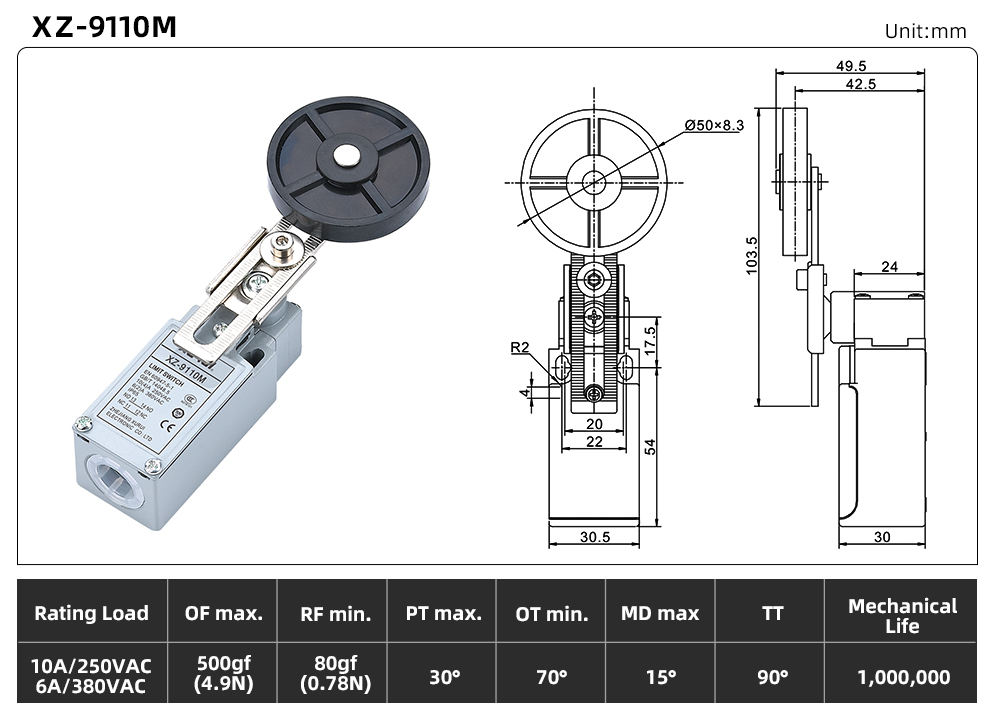

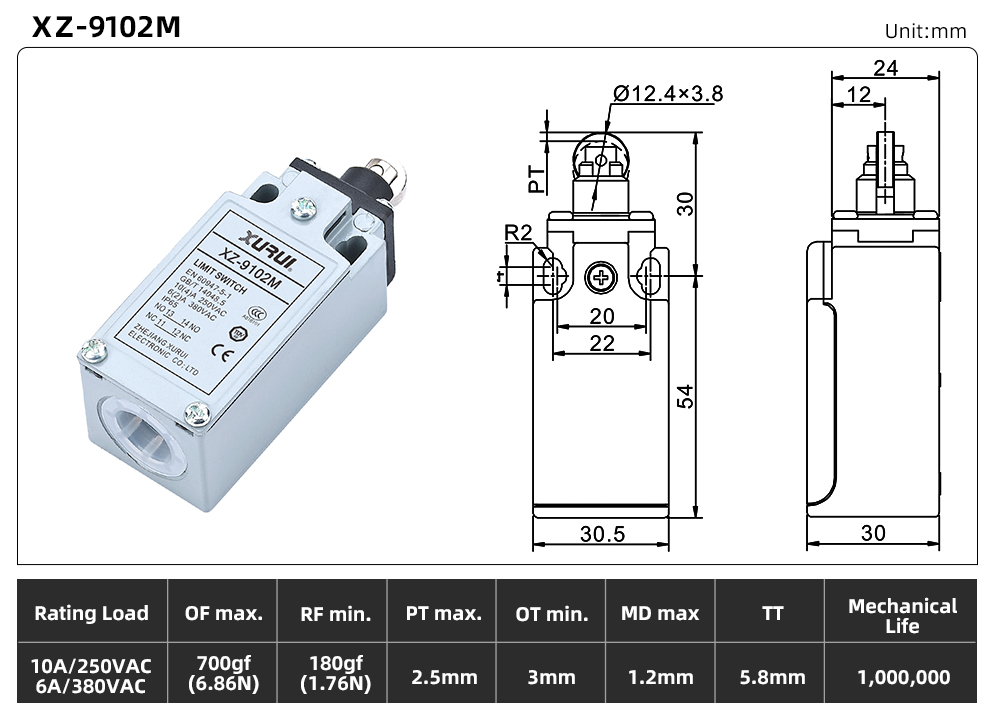

Product Selection
